PRODUCT INFORMATION



Linear LED Swivel 5W 3000K

PRODUCT DETAILS

Electrical data

Nominal wattage 4.00 W
Nominal voltage 5 V
Nominal current 1000.000 mA
Power factor λ 1.00
Protection class III

Photometrical data

Luminous flux 300 lm
Total luminous flux of contained light sources 325 lm
Luminous efficacy 75 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤ 1
Stroboscope effect metric (SVM) ≤ 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 350.00 mm
Height 36.00 mm
Width 49.20 mm
Product weight 163.00 g
Cable length 500 mm

Materials & Colors

Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+30 °C
Temperature range at storage -20…+80 °C
Type of protection IP20
Dimmable Yes
Mounting type Surface
Mounting location Wall, Cabinet undersides
Application environment Indoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 15000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Sensor

Type of sensor Motion, Light
Sensor technology Passive infrared (PIR)
Sensor detection angle 120 °
Sensor controlled switching time 20 s
Detection range of motion sensor ≥ 3 m
Detection threshold of daylight sensor 0…30 lx

BATTERY

Battery size [GMS] 18650

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable

Additional product data

Number of illuminants empty

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage N-Methylpyrrolidone (872-50-4)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easily removeable thanks to the magnetic fixing
  • Easy mounting
Areas of application
  • Shelf and undercabinet lighting
Product features
  • Swivels up and down through an angle of 170°
  • PIR motion and daylight sensor
Equipment / Accessories
  • USB cable, length: 0,5 m
Safety advice
  • This product is not a toy. It should not be left unattended in the hands of children or operated by children.
  • Not designed as a replacement for conventional lighting in private household.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854096556 Folding box
1		 45 mm x 70 mm x 355 mm 221.00 g 1.12 dm³
4099854096563 Shipping box
8		 385 mm x 200 mm x 168 mm 2090.00 g 12.94 dm³

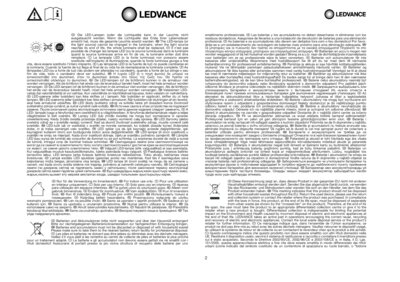

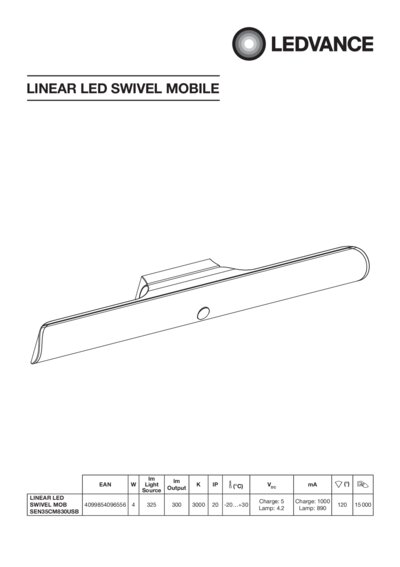

User instruction / safety instructions
UI LINEAR LED TURN SWI VEL PDF (682.75 KB)
Legal information
LINEAR LED SWIVEL MOB SEN35CM830USB PDF (1.77 MB)

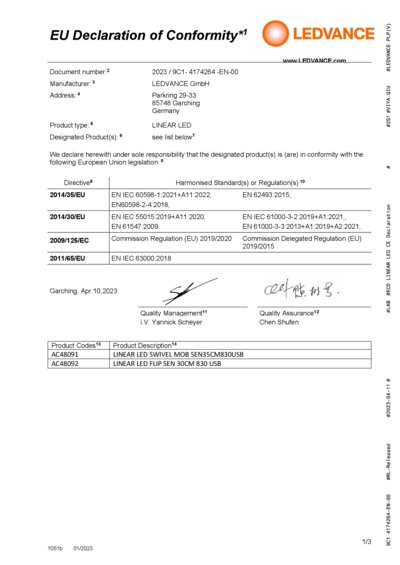

Declarations of conformity
CE Declaration Linear LED PDF (299.65 KB)

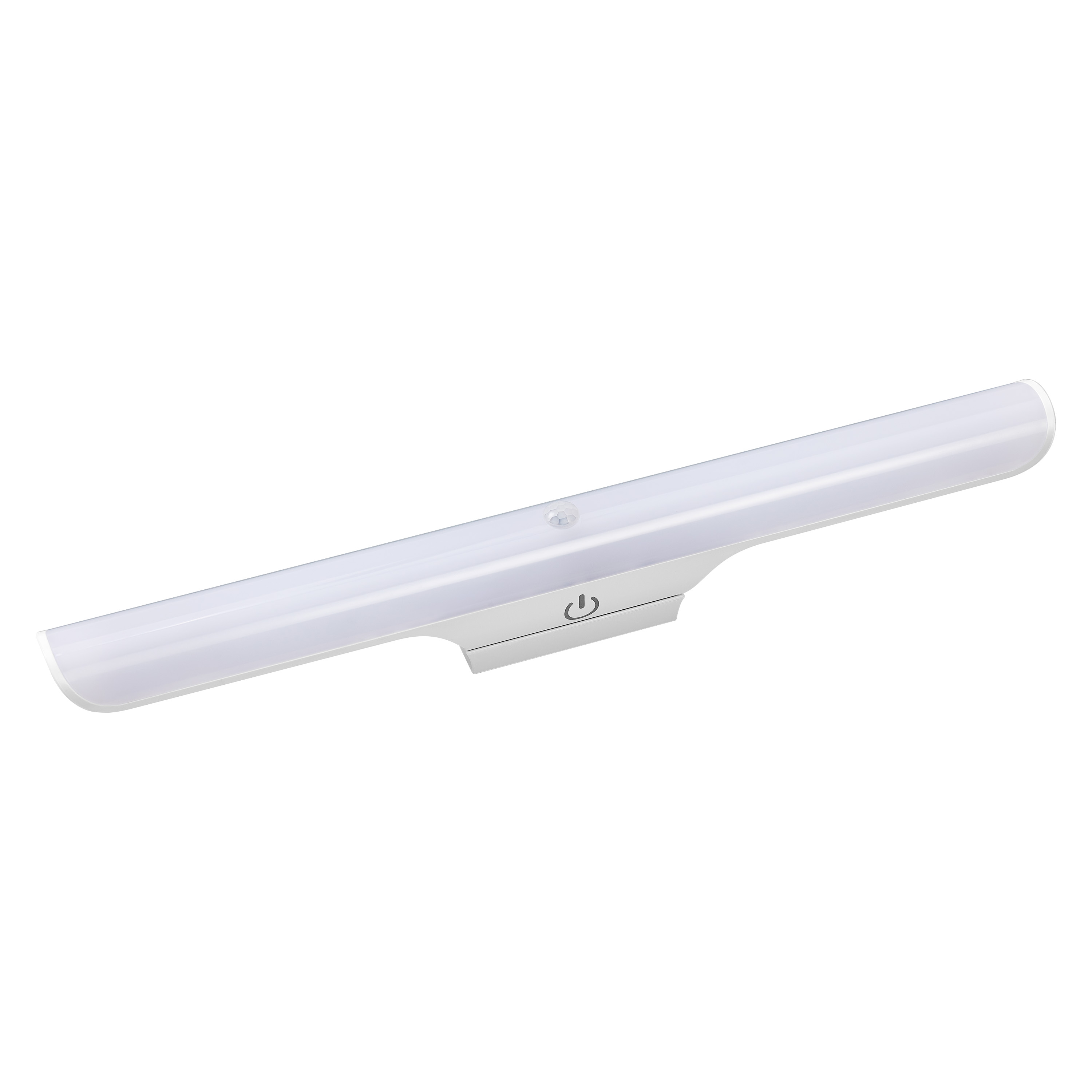

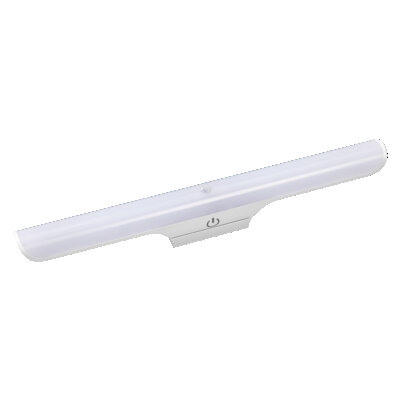

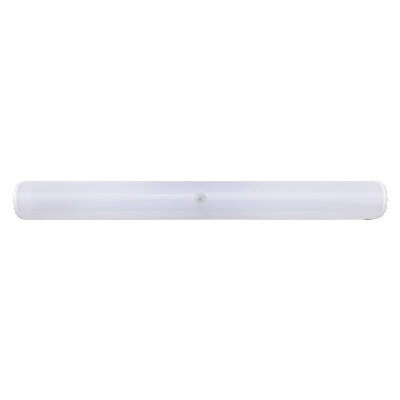

Product image: white background, upright
LINEAR LED SWIVEL MOB SEN35CM830USB JPG (350.59 KB)

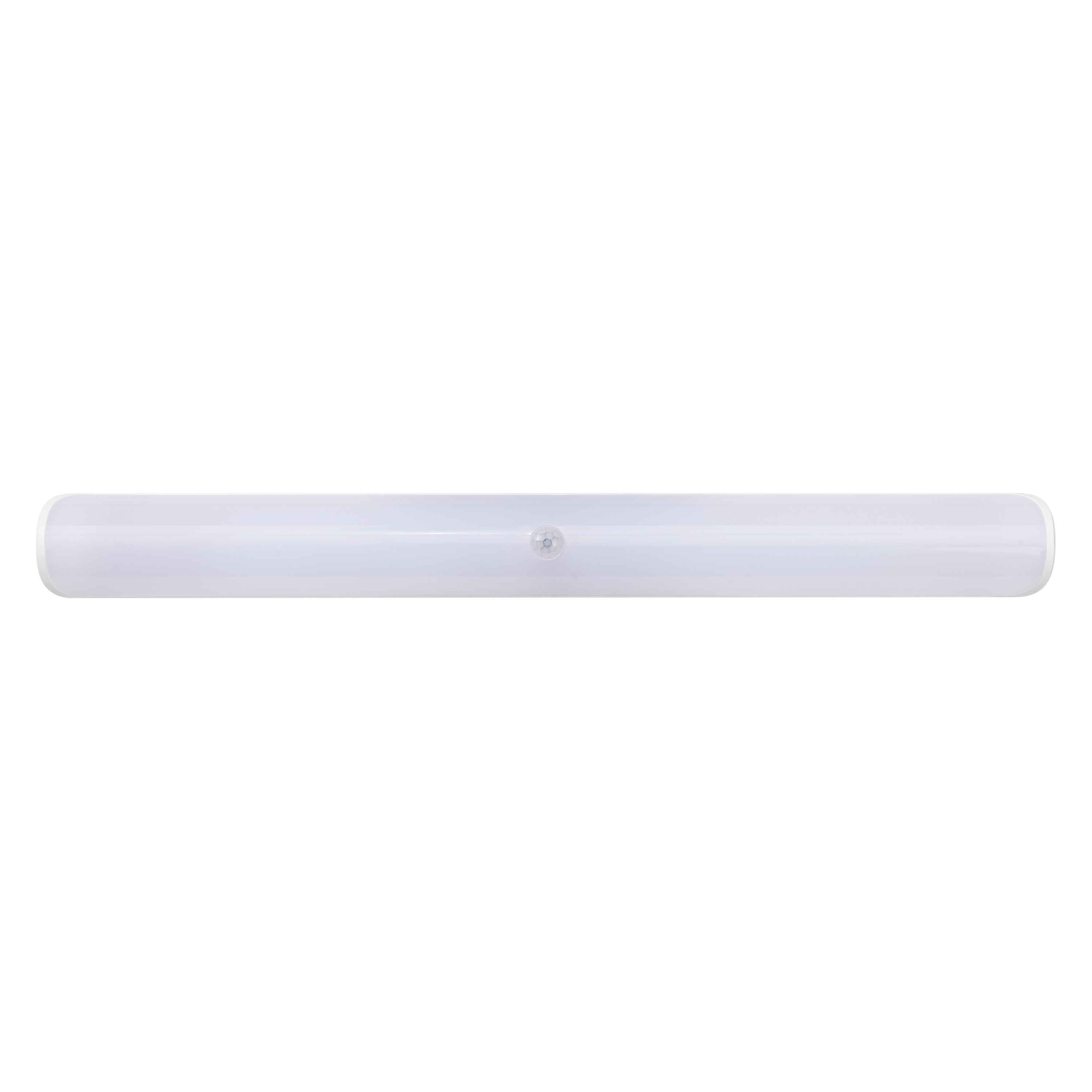

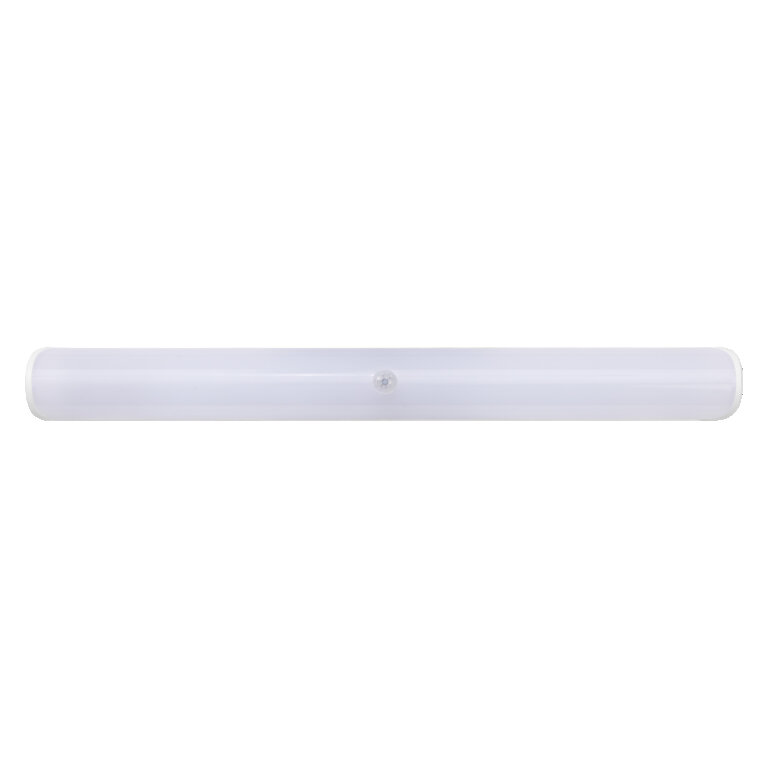

Product image: white background, upright, alternative image
LINEAR LED SWIVEL MOB SEN35CM830USB JPG (313.54 KB)

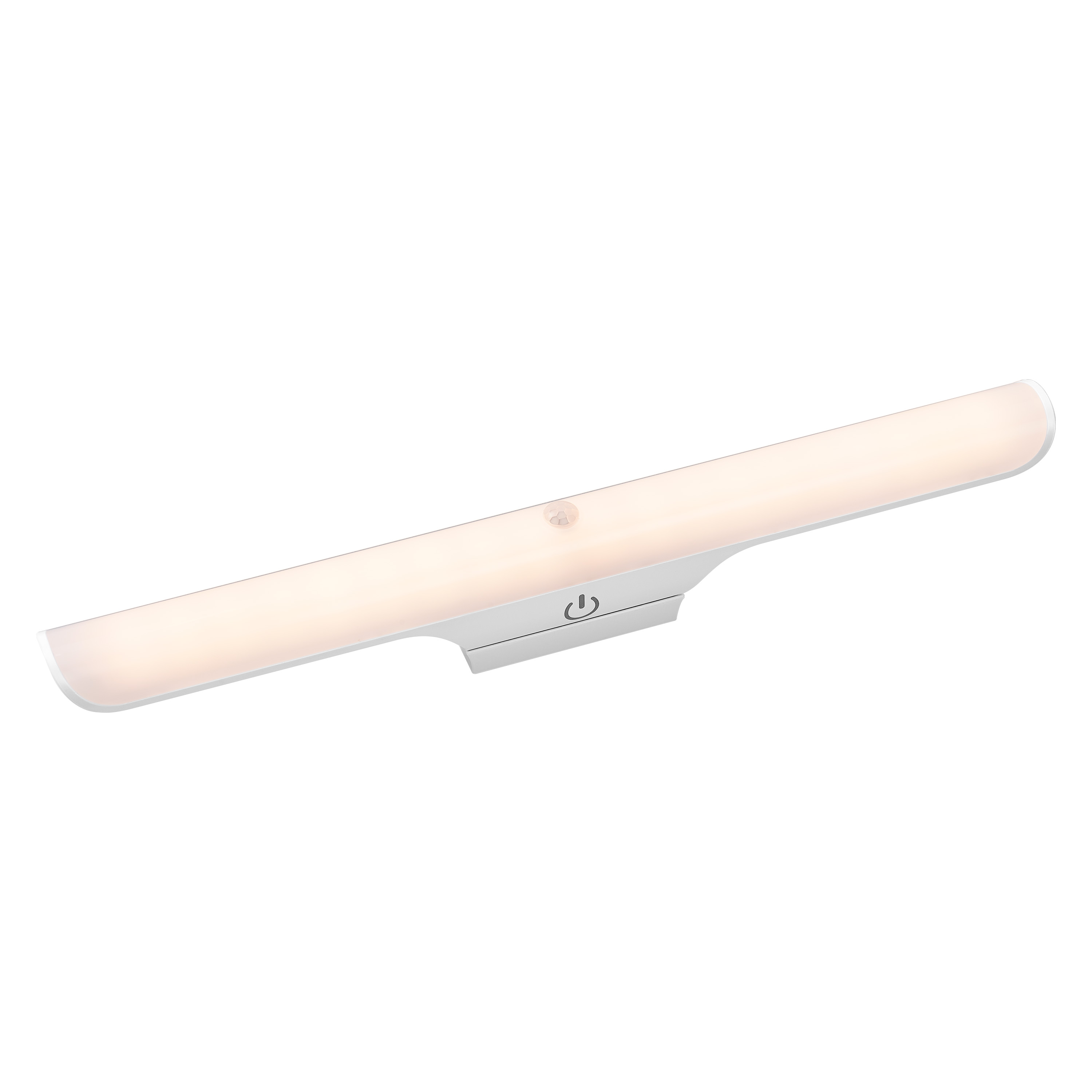

Product image: white background, upright, switched on
LINEAR LED SWIVEL MOB SEN35CM830USB JPG (338.66 KB)

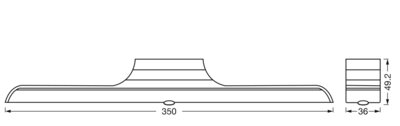

Product line drawing with letters
LINEAR LED SWIVEL MOB SEN35CM830USB SVG (3.54 KB)
Product line drawing with numbers
LINEAR LED SWIVEL MOB SEN35CM830USB PNG (17.12 KB)
Product line drawing, front, no dimensions
LINEAR LED SWIVEL MOB SEN35CM830USB SVG (1.54 KB)

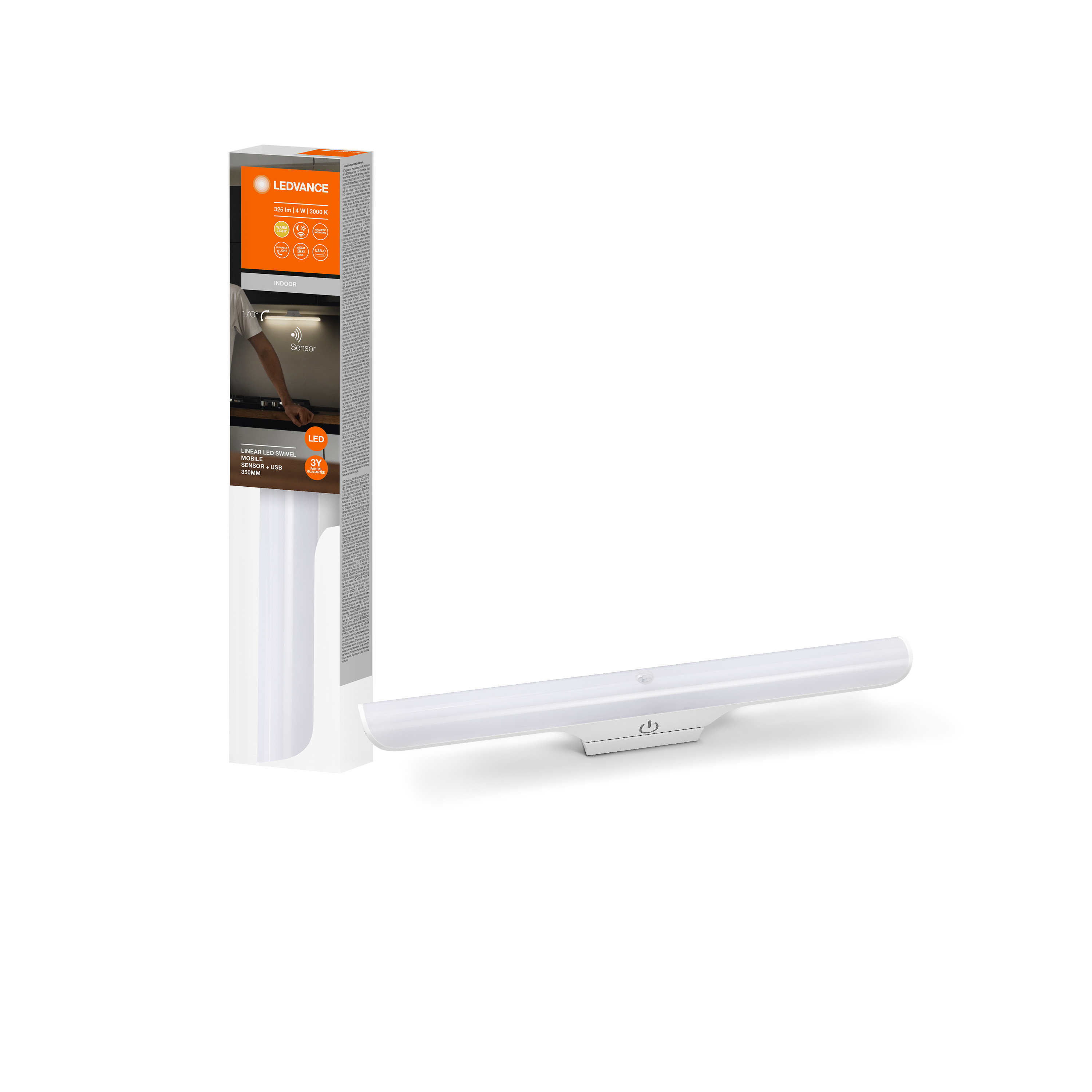

Combo Shot = Product Beauty Shot + Packaging Image
LUM IN LIN SWI MOB SEN 35 USB MiPRC JPG (465.44 KB)

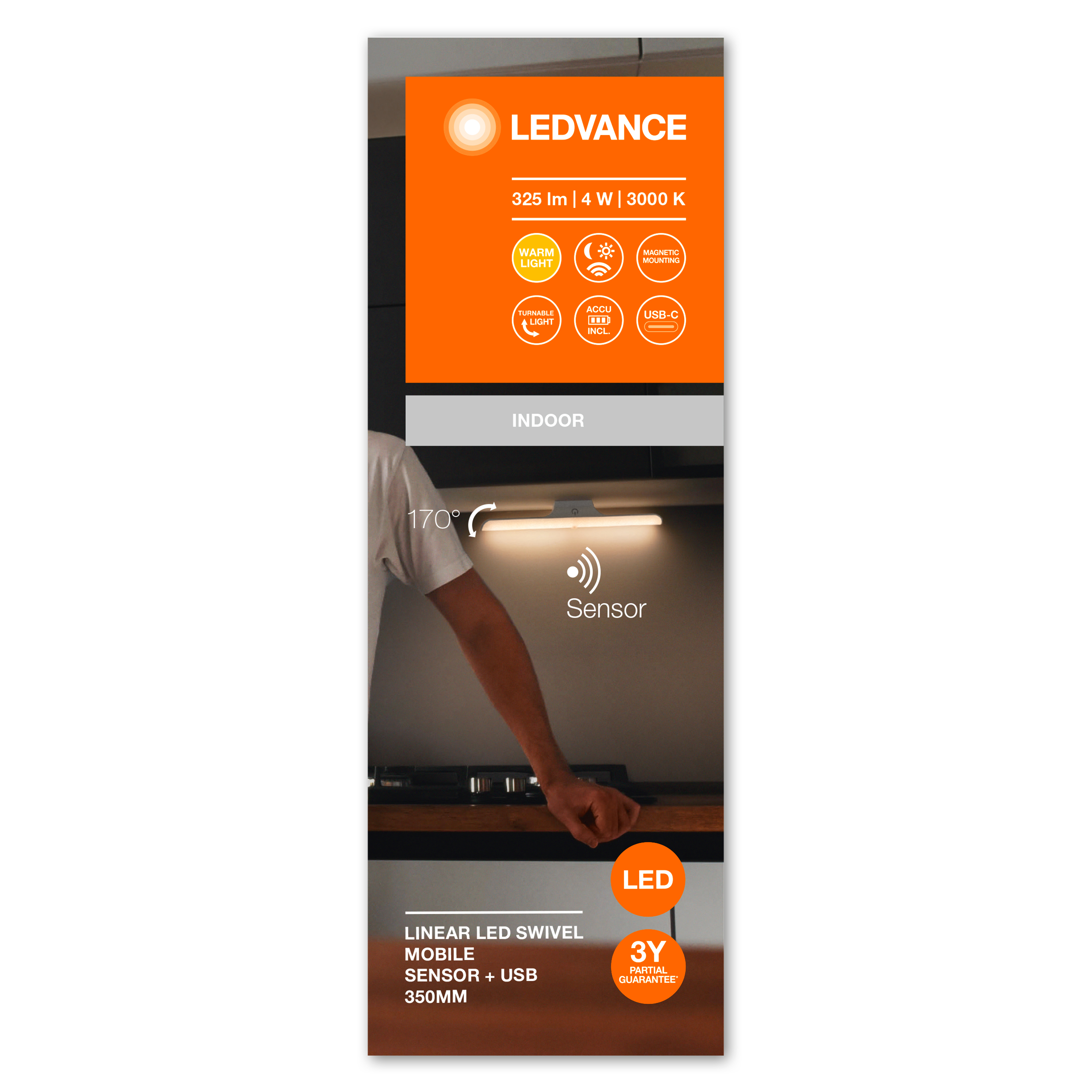

Packaging image, frontal
LUM IN LIN SWI MOB SEN 35 USB MiPRC JPG (2.07 MB)

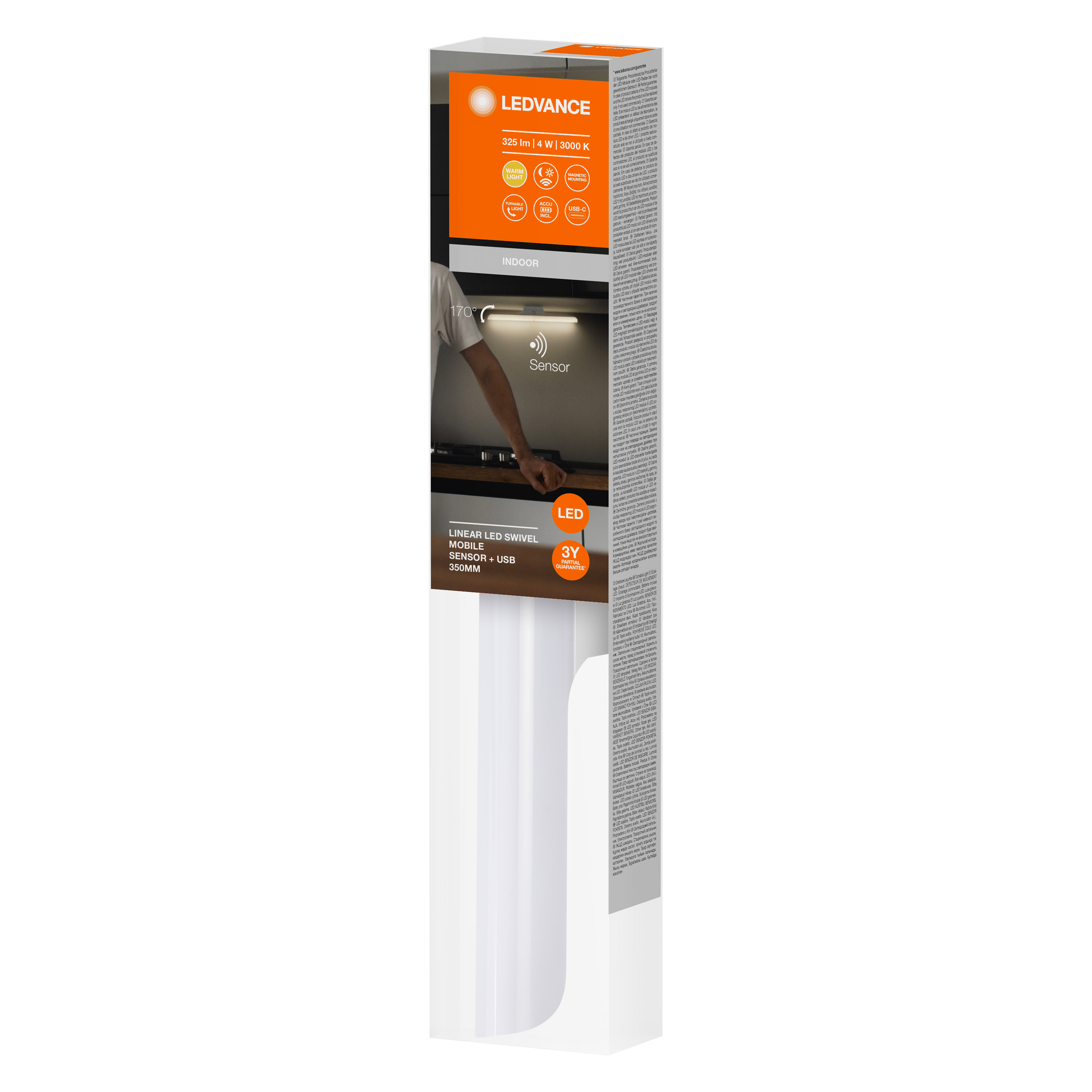

Packaging image, spacial
LUM IN LIN SWI MOB SEN 35 USB MiPRC JPG (592.21 KB)

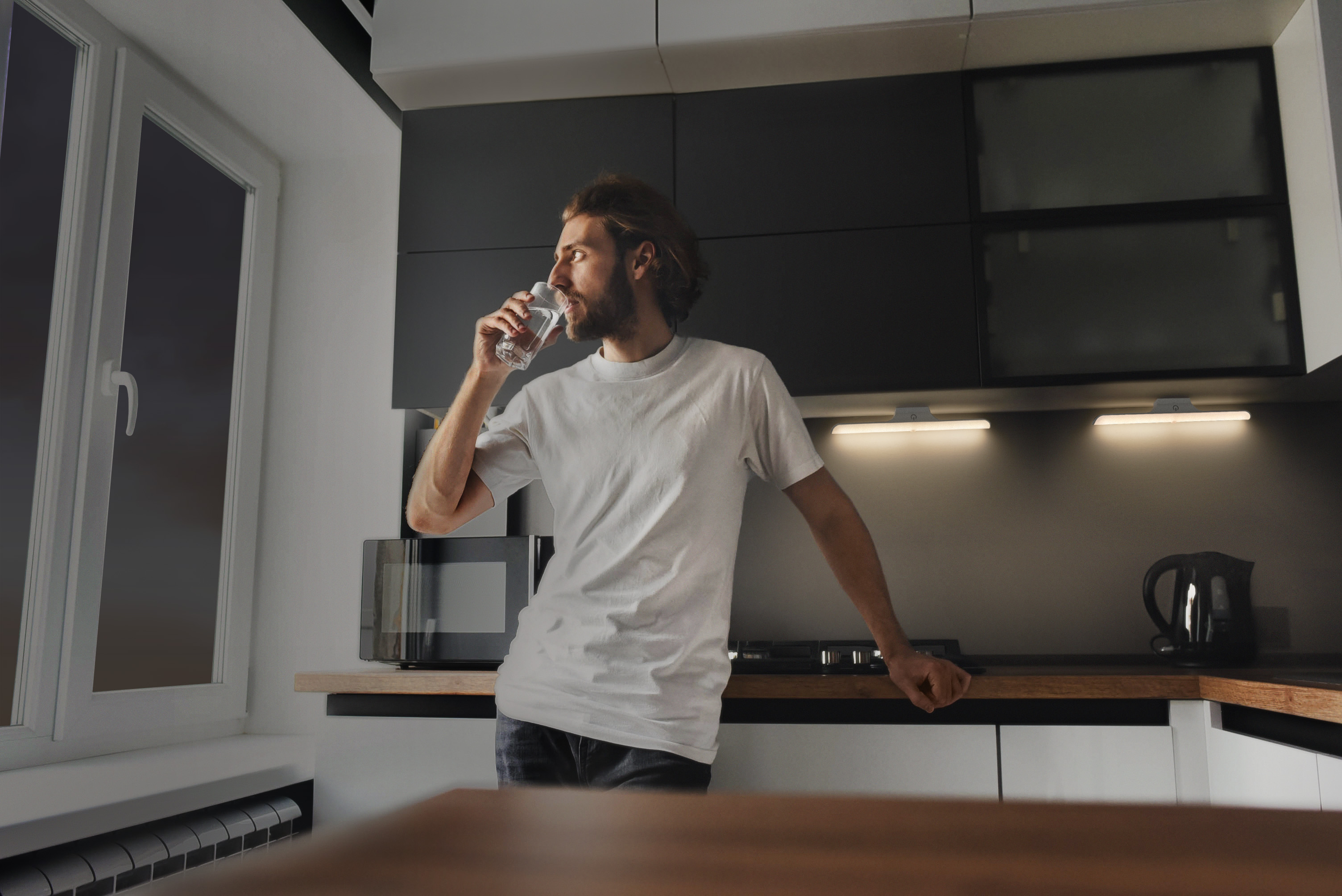

Application pictures Getty
Linear LED Turn Swivel JPG (912.61 KB)
EAN ELDAS number
4099854096556 941006350
