PRODUCT INFORMATION



SF CIRC 500 V 42W 840 IP44 PS

PRODUCT DETAILS

Electrical data

Nominal wattage 42 W / 30 W / 19 W 1)
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 180.000 mA
Inrush current 23.2 A
Inrush current time Th50 280 µs
Max. number of luminaires per miniature circuit breaker B16 11
Max. number of luminaires per miniature circuit breaker C10 10
Max. number of luminaires per miniature circuit breaker C16 17
Power factor λ > 0.90
Total harmonic distortion < 30 %
Protection class I
Operating mode Integrated LED driver

1) For possible options refer to lumen/power table image

Photometrical data

Luminous flux 3500 lm / 2500 lm / 1500 lm 1)
Luminous efficacy 83 lm/W / 78 lm/W 1)
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

1) For possible options refer to lumen/power table image

Dimensions & Weight

Diameter 500.00 mm
Height 105.00 mm
Product weight 1150.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal, 3-pin
Type of protection IP44
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 45000 h 1)
Lifespan L90/B10 at 25 °C 40000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 1000 mA
ECG - Output ripple current < 20 %

Certificates & Standards

Standards CE, CB, TÜV, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00022-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

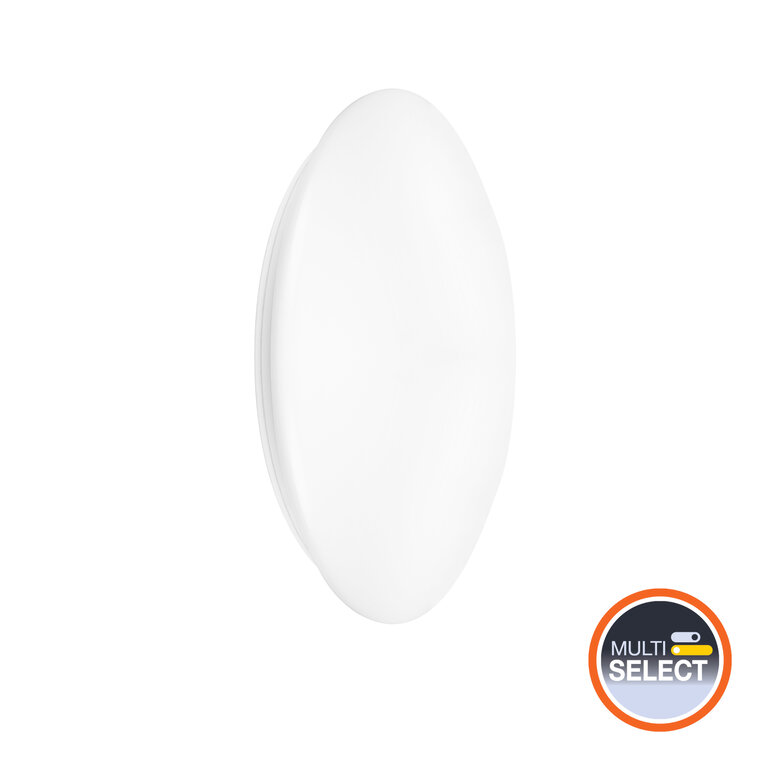

Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Highly versatile due to selectable power steps (Power Select - PS) on the driver
  • Indoor luminaire with high luminous efficacy
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 5 years guarantee
Areas of application
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features
  • Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
  • Extended lifetime (L70/B10): up to 50,000 h (at 25°C)
  • Impact resistance: IK03
  • Metal housing, PMMA cover
  • Ambient temperature in operation: -20…+40 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Replacement cover optional available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854042133 Folding box
1		 112 mm x 527 mm x 534 mm 1622.00 g 31.52 dm³
4099854042140 Shipping box
5		 582 mm x 547 mm x 564 mm 10149.00 g 179.55 dm³
User instruction / safety instructions
SF CIRC 500 PDF (4.31 MB)
Legal information
LSI SF CIRC 500 42W IP 44 PS PDF (2.55 MB)
Legal information
Legal insert PDF (843.77 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
SF CIRC 500 V PDF (353.02 KB)
EPD
EPD EN SURFACE CIRCULA R 500 SENSOR PDF (616.59 KB)
Product image: white background, diagonal
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS JPG (938.26 KB)
Product image: white background, horizontal
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS JPG (852.81 KB)
Product image: white background, upright
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS JPG (1.52 MB)
Product line drawing with letters
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS SVG (7.95 KB)
Product line drawing with numbers
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS SVG (9.96 KB)
Product line drawing, front, no dimensions
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SE N V 42W IP44 PS SVG (3.54 KB)

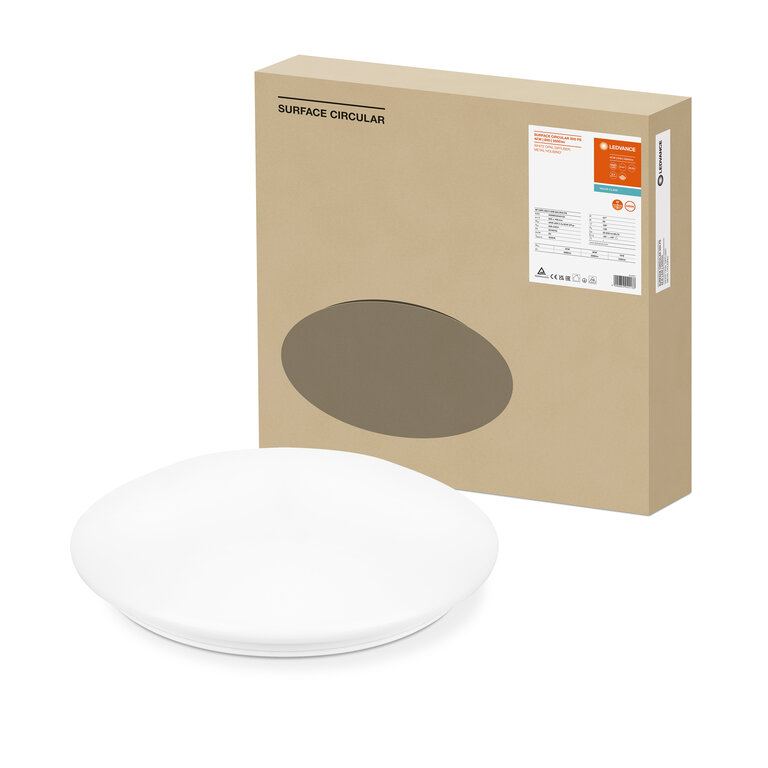

Combo Shot = Product Beauty Shot + Packaging Image
