PRODUCT INFORMATION



SF SQUARE 330 V 24W 830 IP44

PRODUCT DETAILS

Electrical data

Nominal wattage 24.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 115.000 mA
Inrush current 7.2 A
Inrush current time Th50 5.9 µs
Max. number of luminaires per miniature circuit breaker B16 104
Max. number of luminaires per miniature circuit breaker C10 66
Max. number of luminaires per miniature circuit breaker C16 106
Power factor λ > 0.70
Total harmonic distortion < 60 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2000 lm
Luminous efficacy 83 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

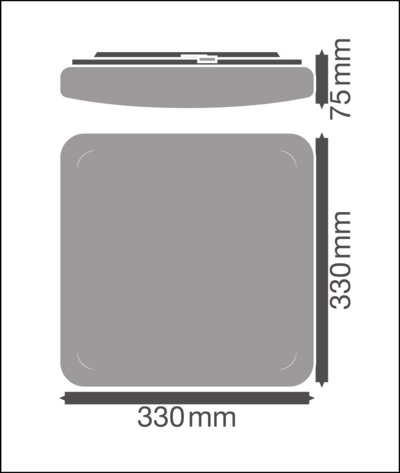

Dimensions & Weight

Length 330.00 mm
Height 75.00 mm
Width 330.00 mm
Product weight 655.00 g

Materials & Colors

Product color White
Housing color White
RAL Color (most similar) RAL 9003
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal, 3-pin
Type of protection IP44
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 35000 h 1)
Lifespan L80/B10 at 25 °C 33000 h 1)
Lifespan L90/B10 at 25 °C 15000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 300 mA
ECG - Output ripple current < 5 %

Certificates & Standards

Standards CE, CB, TÜV, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Indoor luminaire with high luminous efficacy
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 3 years guarantee
Areas of application
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features

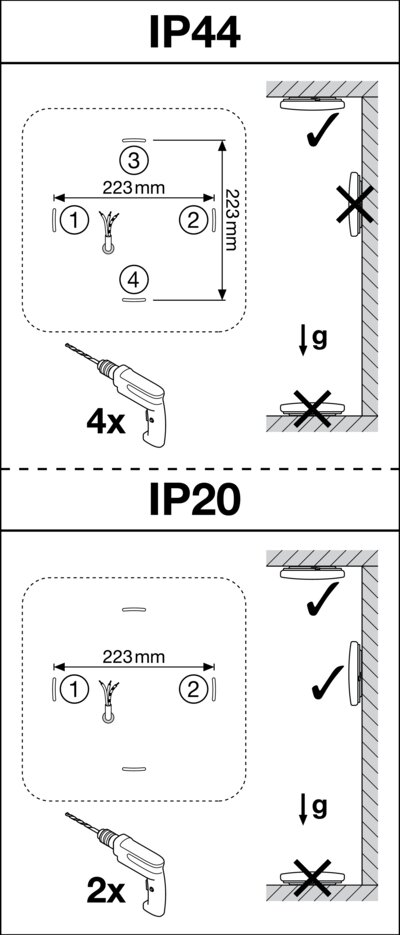

  • Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
  • Impact resistance: IK03
  • Metal housing, PMMA cover
  • Ambient temperature in operation: -20…+40 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Replacement cover optionally available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854041952 Folding box
1		 87 mm x 367 mm x 369 mm 916.00 g 11.78 dm³
4099854041969 Shipping box
5		 457 mm x 387 mm x 404 mm 5771.00 g 71.45 dm³
User instruction / safety instructions

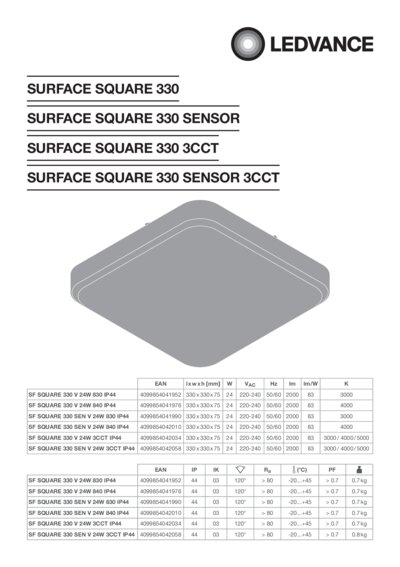

UI SF SQUARE 330 V and SF SQUARE 330 SEN V PDF (4.55 MB)
Legal information

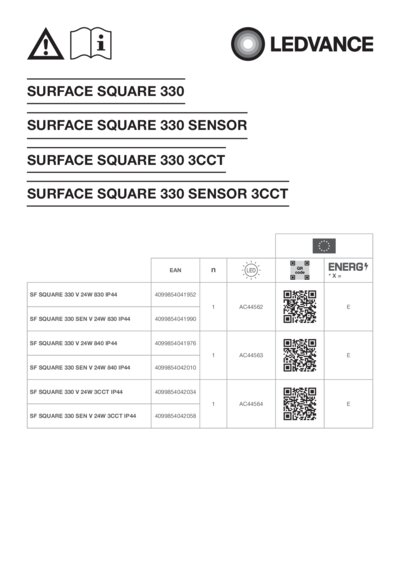

LSI SF SQUARE 330 V 24 W PDF (2.65 MB)
Legal information

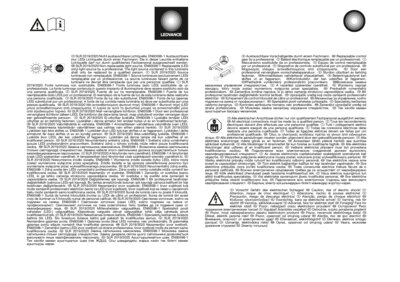

Legal insert PDF (843.77 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

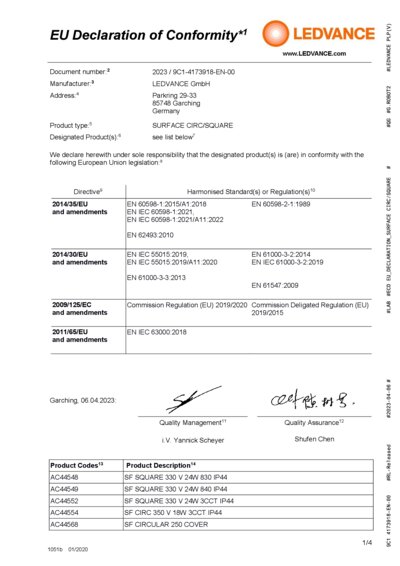

Declarations of conformity
SF SQUARE 330 V 24W 83 0 IP44 PDF (379.64 KB)

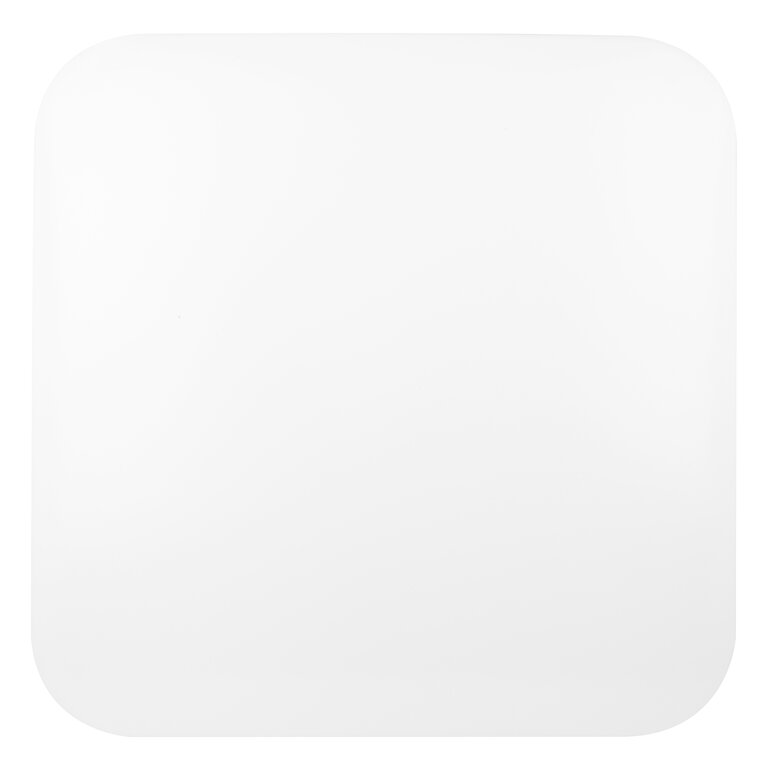

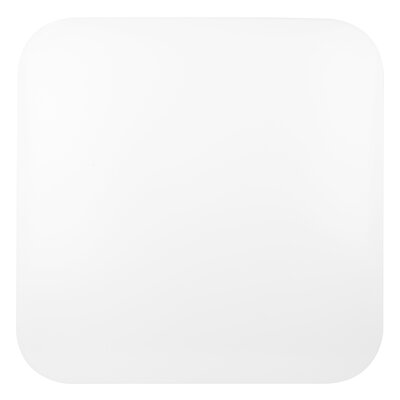

Product image: white background, diagonal
SF SQUARE JPG (1.25 MB)

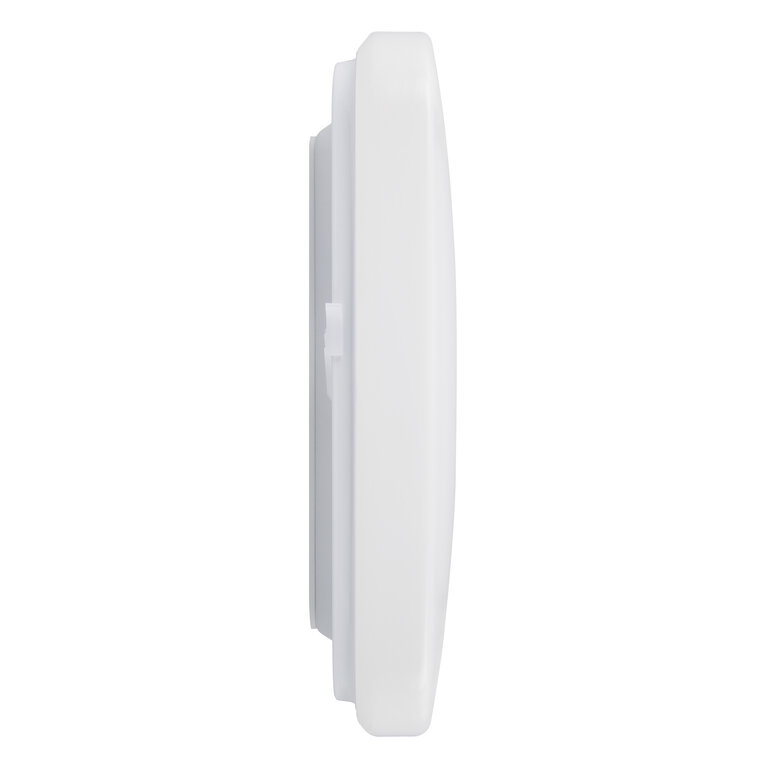

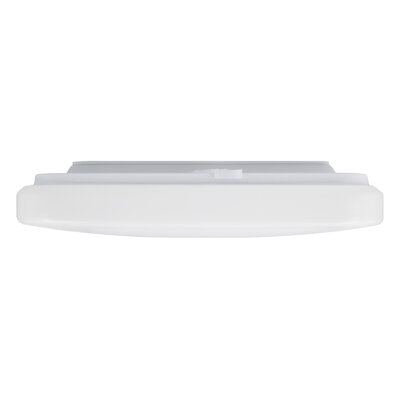

Product image: white background, horizontal
SF SQUARE JPG (1.54 MB)

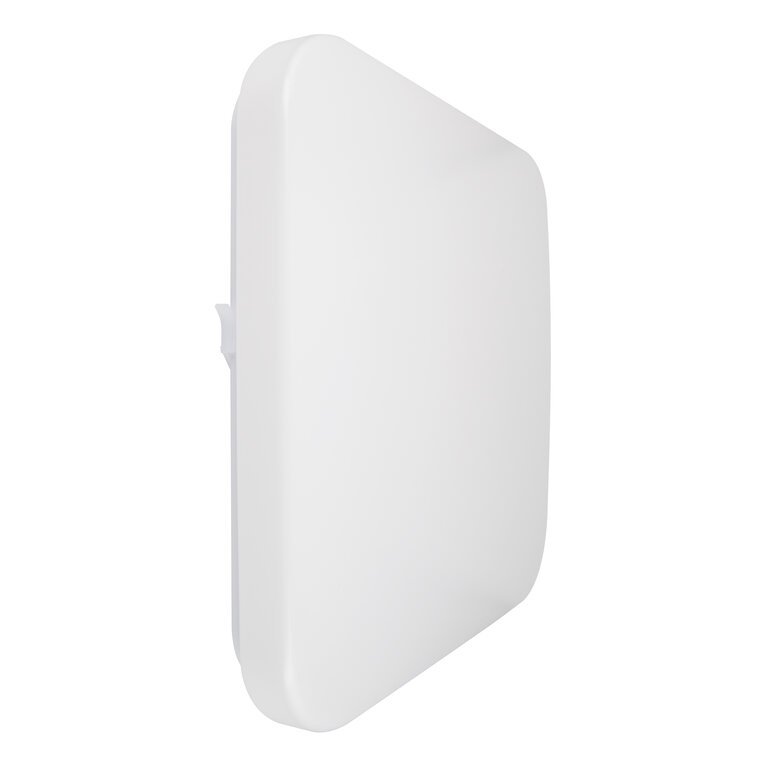

Product image: white background, upright
SF SQUARE JPG (964.23 KB)
Product line drawing with letters
SF SQUARE SVG (10.73 KB)
Product line drawing with numbers
SF SQUARE SVG (18.01 KB)
Product line drawing, front, no dimensions
SF SQUARE SVG (7.07 KB)

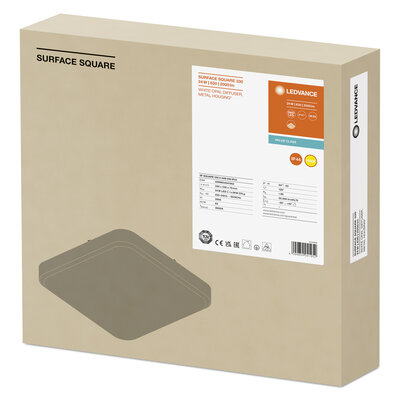

Packaging image, spacial
Surface Square 330 V 2 4W IP44 WT MiCh JPG (2.71 MB)
Catalog info 1
SF SQUARE 330 V PNG (58.63 KB)
Catalog info 2
SF SQUARE 330 V PNG (233.35 KB)
IES file (IES)
SF SQUARE 330 V 24W 30 00K IP44 IES (14.43 KB)
LDT file (Eulumdat)
SF SQUARE 330 V 24W 30 00K IP44 LDT (11.14 KB)
ULD file (DIALux)
SF SQUARE 330V 24W 830 IP44 ULD (158.72 KB)
ROLF file (RELUX)
SF SQUARE 330 24W 830 IP44 ROLF (383.25 KB)
UGR file (UGR table)
SF SQUARE 330 V 24W 30 00K IP44 PNG (60.86 KB)
Light distribution curve type cone
SF SQUARE 330 V 24W 30 00K IP44 SVG (16.76 KB)
Light distribution curve type polar
SF SQUARE 330 V 24W 30 00K IP44 SVG (20.02 KB)
BIM Revit 3D
SF SQUARE ZIP (1.83 MB)
CAD STEP 3D
SF SQUARE 330 STEP (3.58 MB)
Tender documents
SURFACE SQUARE 330 24W 830 IP44-EN TXT (1.27 KB)
EAN SEG number STK number EFO number ELDAS number UK Org
4099854041952 7510651 4136270 3310299 941005340 435957812
