PRODUCT INFORMATION



DALI COUPLER LS HIGHBAY G2

PRODUCT DETAILS

Electrical data

Nominal wattage 0.10 W
Nominal voltage 16 V
Mains frequency 0 Hz

Dimensions & Weight

Length 139.00 mm
Width 118.00 mm
Height 37.00 mm
Product weight 74.00 g

Colors & materials

Product color White

Temperatures & operating conditions

Ambient temperature range -20…+50 °C

Capabilities

Dimmable No
Dimming interface DALI-2
Maximum installation height 13 m
Type of installation On-top ceiling mounting
Operating range, light sensor 20…800 lx

Certificates & Standards

Approval marks – approval CE
Protection class II
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • DALI-2 certified
  • Adaptable light sensor sensitivity for different mounting height
  • Extended terminal section enables mains looping
  • Flexible addressing via DALI-2
  • Multiple couplers connectable to the same DALI line
Areas of application
  • Industry
  • Production halls
  • Sports halls
  • Logistic centers
  • Areas with high ceilings
  • Connection of light and presence sensors in DALI systems
  • Suitable for indoor installations
  • Production and assembly facilities
  • Open-plan offices, corridors and storage rooms
  • Corridors
  • Strip lighting in factory halls
Product features
  • Coupler for integration of light and presence information in DALI installations
  • Integrated light sensor
  • Adapter for integration of High Bay or Vision Sensor for motion detection
Equipment / Accessories
  • High Bay Sensor for big installation heights
  • Vision Sensor for wide detection range
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4062172072137 Folding box
1		 126 mm x 41 mm x 127 mm 122.00 g 0.66 dm³
4062172072144 Shipping box
20		 270 mm x 225 mm x 285 mm 2668.00 g 17.31 dm³
User instruction / safety instructions

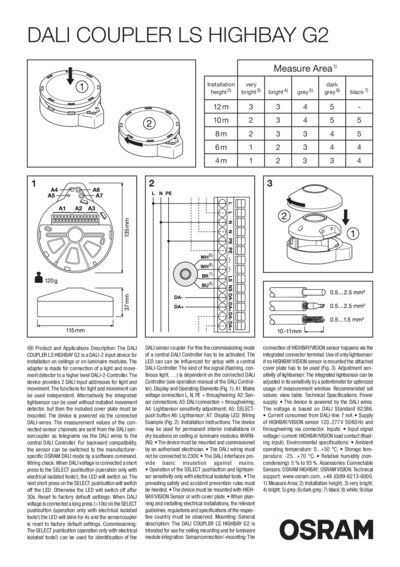

DALI2 COUPLER LS HIGHB AY PDF (3.38 MB)
Declarations of conformity
DALI SENSOR LS PD LI PDF (969.63 KB)
EU Data Act
Connected Products and Related Software and Services PDF (346.28 KB)

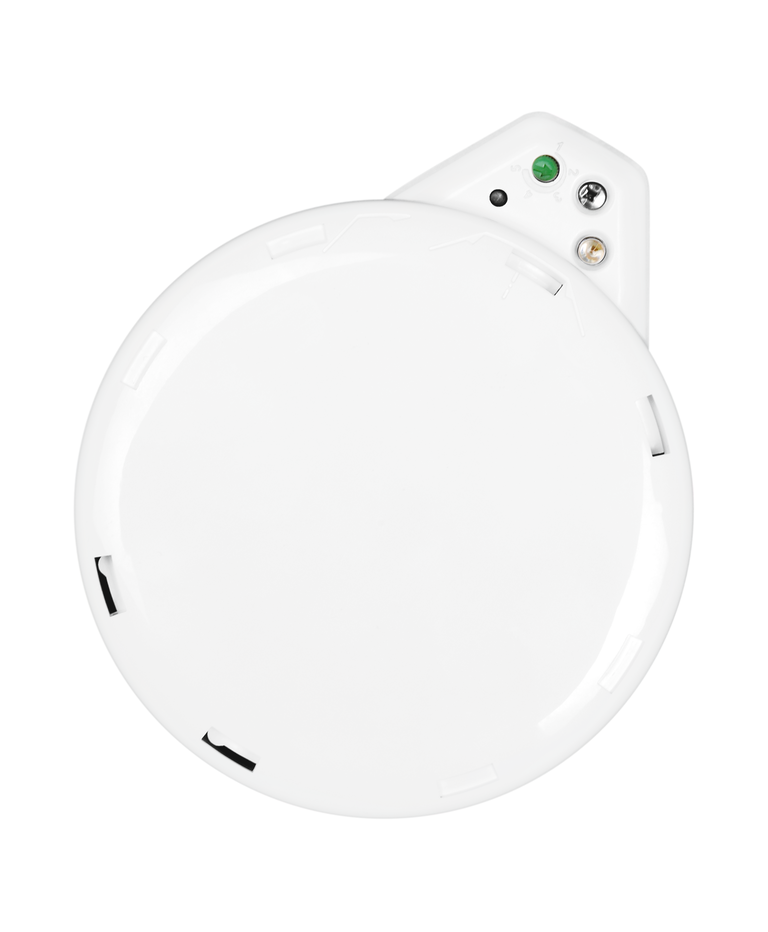

Product image: white background, diagonal
341349_DALI HIGHBAY AD APTER TIF (22.12 MB)

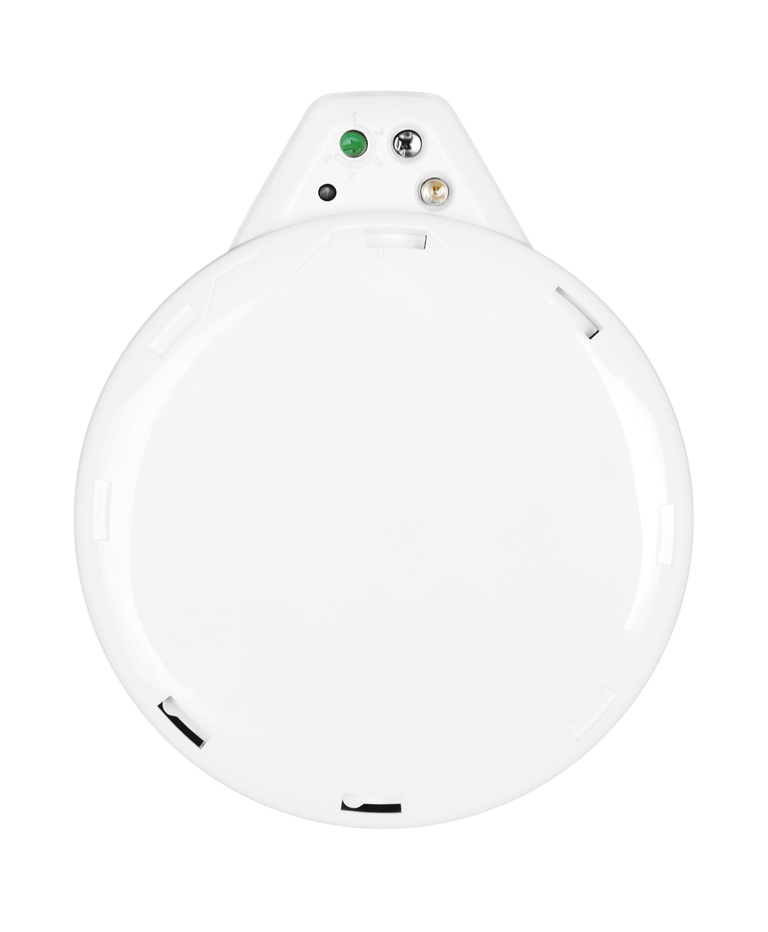

Product image: white background, upright
