PRODUCT INFORMATION



DALI COUPLER MULTI3 G2

PRODUCT DETAILS

Electrical data

Nominal wattage 0.10 W
Nominal voltage 16 V
Mains frequency 0 Hz

Dimensions & Weight

Length 118.00 mm
Width 30.00 mm
Height 21.00 mm
Product weight 35.00 g

Colors & materials

Product color Light grey

Temperatures & operating conditions

Ambient temperature range -20…+50 °C

Capabilities

Dimmable No
Dimming interface DALI-2
Type of installation Luminaire integration

Certificates & Standards

Approval marks – approval CE
Protection class II
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • DALI-2 certified
  • Multiple couplers connectable to the same DALI line
  • Integreatable in light- and building management systems supporting DALI-2 sensors
Areas of application
  • Connection of light and presence sensors in DALI systems
  • Ceiling or independent installation via ECO CI KIT possible
  • Luminaire and ceiling integration
Product features
  • Coupler for integration of light and presence information in DALI installations
  • 4p4c-connector for HF LS LI Sensor (Light- and motion detection via radar)
  • Very low DALI Power consumption
  • for sensor features see HF LS LI sensor
Equipment / Accessories
  • Multi-3 CI Sensor - Light and presence Sensor with PIR detection technology
  • Separate installation possible with ECO CI KIT
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4062172072113 Folding box
1		 128 mm x 37 mm x 27 mm 49.00 g 0.13 dm³
4062172072120 Shipping box
25		 200 mm x 140 mm x 147 mm 1295.00 g 4.12 dm³
User instruction / safety instructions

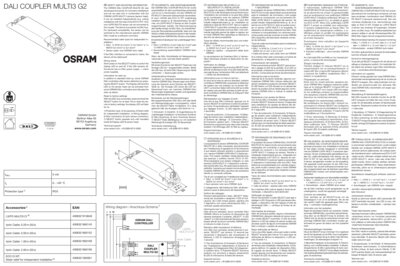

DALI2 COUPLER MULTI3 PDF (3.23 MB)
Declarations of conformity
DALI G2 CE 4202657 190 320 PDF (1.51 MB)
EU Data Act
Connected Products and Related Software and Services PDF (346.28 KB)

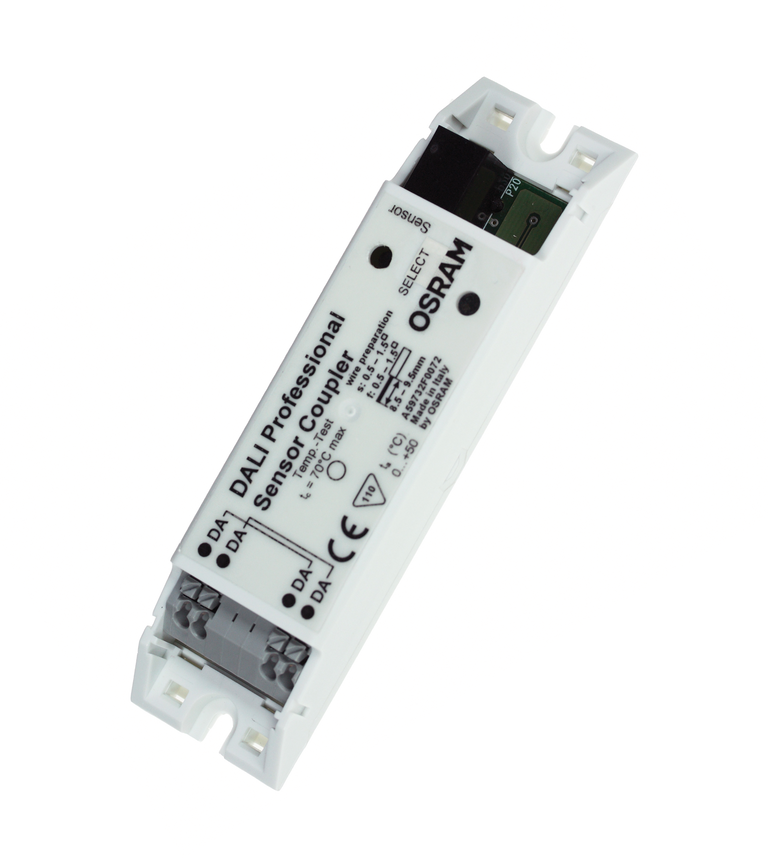

Product image: white background, diagonal
323762_DALI PRO SENSOR COUPLER TIF (39.13 MB)

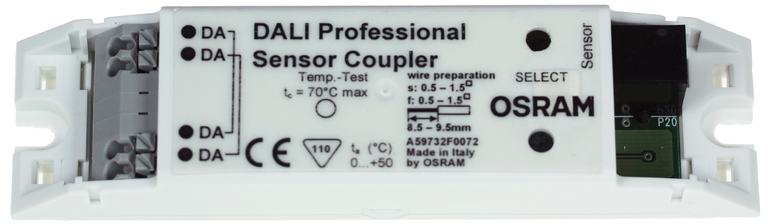

Product image: white background, horizontal
318976_DALI PRO SENSOR COUPLER TIF (10.21 MB)
Product line drawing with letters
326385_DALI PRO SENSOR COUPLER SVG (13.71 KB)
Product line drawing with numbers
318885_MULTIeco SVG (13.85 KB)
EAN SEG number ELDAS number
4062172072113 7985355 535958310
