DALI SENSOR LS/PD LI G2

PRODUCT DETAILS

Electrical data

Nominal wattage 0.10 W
Nominal voltage 16 V
Mains frequency 0 Hz

Dimensions & Weight

Length 48.00 mm
Width 15.00 mm
Height 17.00 mm
Product weight 10.00 g

Colors & materials

Product color Light grey

Temperatures & operating conditions

Ambient temperature range -20…+50 °C

Capabilities

Dimmable No
Dimming interface DALI-2
Maximum installation height 5 m
Detection area 6 m
Detection angle 80 °
Type of installation Ceiling integration/Luminaire integration
Operating range, light sensor 20…800 lx

Certificates & Standards

Approval marks – approval CE
Protection class II
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Small housing design
  • Frames for different mounting types for luminaires
  • DALI-2 certified
  • DALI Bus powered (No mains connection necessary)
  • Multiple sensors connectable to the same DALI line
  • Presence detection angle adjustable between 40…90° via integrated shutters
  • Integreatable in light- and building management systems supporting DALI-2 sensors
Areas of application
  • Suitable for indoor applications
  • Installation in office luminaires
  • Suitable for floor standing luminaires in combination with an application controller
  • Ceiling installation via LS/PD CI KIT or LS/PD AP KIT possible
Product features
  • Light and presence sensor for luminaire installation
  • Presence detection via passive IR element
  • Light sensor operating range: 20…800 lx (measured at sensor)
  • Mounting height: 2…5 m
  • Function indicator with two-color LED
Equipment / Accessories

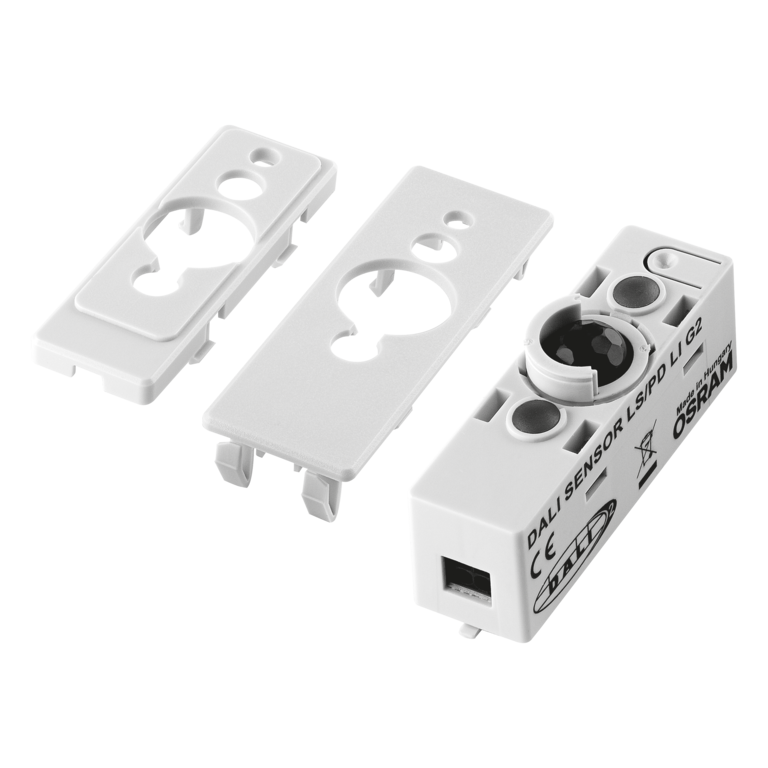

  • Attachable mounting frame for luminaire mounting from inside and outside
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4062172072069 Folding box
1		 128 mm x 37 mm x 27 mm 49.00 g 0.13 dm³
4062172072076 Shipping box
25		 223 mm x 197 mm x 179 mm 1131.00 g 7.86 dm³

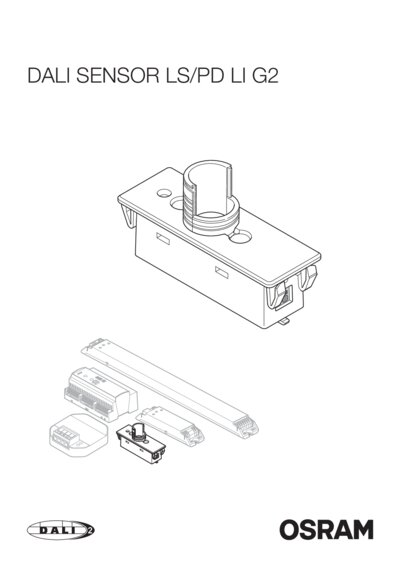

User instruction / safety instructions
DALI2 SENSOR LS/PD LI PDF (3.82 MB)

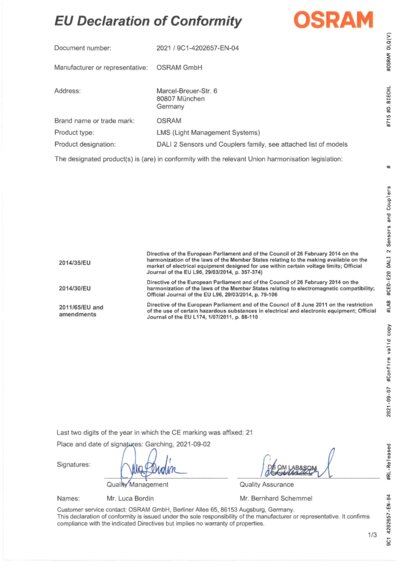

Declarations of conformity
DALI SENSOR LS PD LI PDF (969.63 KB)

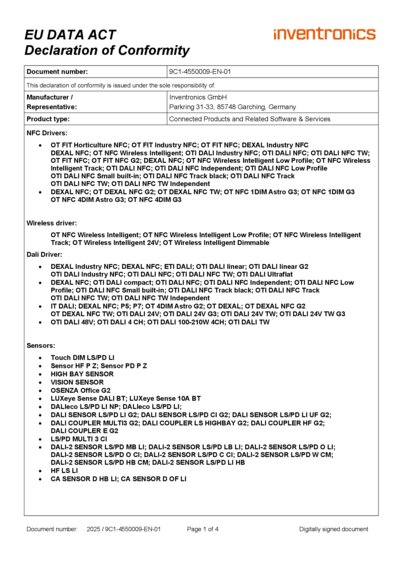

EU Data Act
Connected Products and Related Software and Services PDF (346.28 KB)

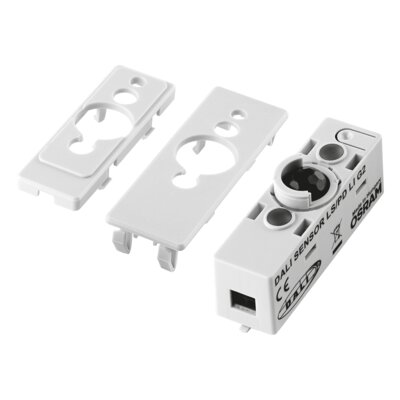

Product image: white background, diagonal with OSRAM logo
DALI SENSOR LS/PD LI G 2 TIF (35.33 MB)

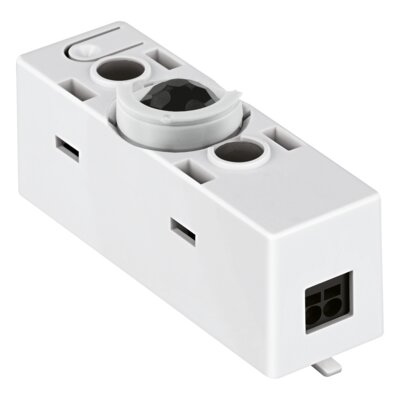

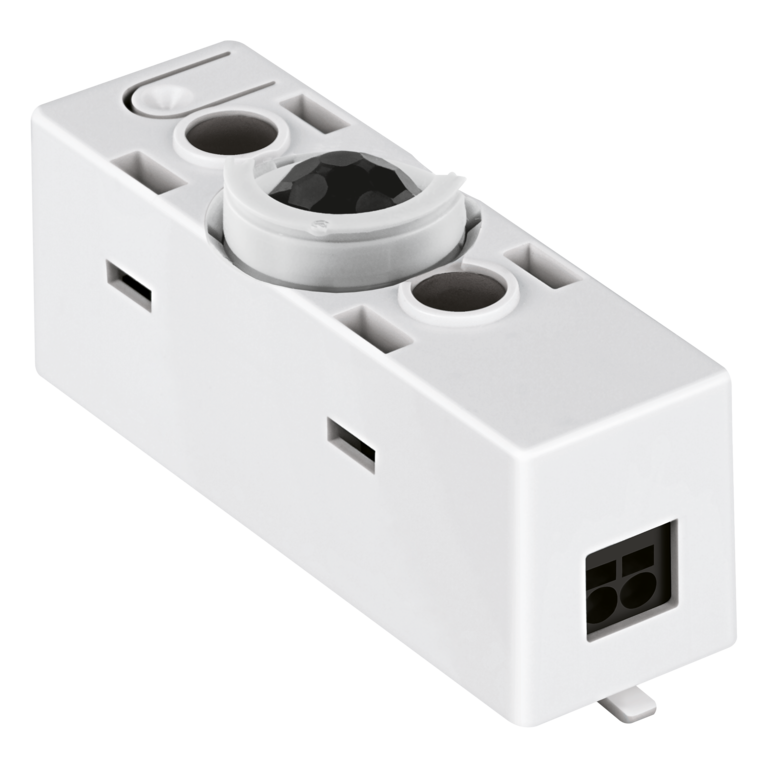

Product image: white background, diagonal
DALI SENSOR LS/PD LI G 2 TIF (34.92 MB)
Product line drawing with letters
DALI SENSOR LS/PD LI G 2 SVG (40.28 KB)
Product line drawing with numbers
DALI SENSOR LS/PD LI G 2 SVG (42.1 KB)
Product line drawing, front, no dimensions
332604_DALIeco Sensor LI SVG (11.14 KB)

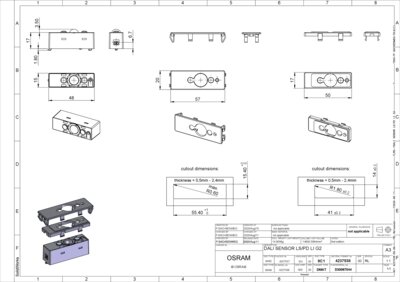

Product line drawing - technical
DALI SENSOR LS PD LI G 2 2PDF 110820 PDF (369.92 KB)

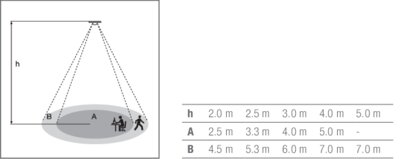

Catalog info 1
