PRODUCT INFORMATION



DALI SENSOR LS/PD LI UF G2

PRODUCT DETAILS

Electrical data

Nominal wattage 0.10 W
Nominal voltage 16 V
Mains frequency 0 Hz

Dimensions & Weight

Length 50.00 mm
Width 21.00 mm
Height 16.00 mm
Product weight 10.00 g

Colors & materials

Product color White

Temperatures & operating conditions

Ambient temperature range -20…+50 °C

Capabilities

Dimmable No
Dimming interface DALI-2
Maximum installation height 4 m
Detection area 6 m
Detection angle 90 °
Type of installation Luminaire integration
Operating range, light sensor 0…1000 lx

Certificates & Standards

Approval marks – approval CE
Protection class II
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Extremely low profile
  • Presence detection range can be restricted by snap on shutters
  • DALI-2 certified
  • DALI Bus powered (No mains connection necessary)
  • Multiple sensors connectable to the same DALI line
  • Integreatable in light- and building management systems supporting DALI-2 sensors
Areas of application
  • Suitable for indoor applications
  • Installation in office luminaires
  • Suitable for floor standing luminaires in combination with an application controller
Product features
  • Light and presence sensor for luminaire installation
  • Presence detection via passive IR element
  • Light sensor working range: 10…1000 lx (measured at sensor)
  • Mounting height: 2…4 m
  • Function indication via integrated LED
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4062172072045 BAG
1		 128 mm x 37 mm x 27 mm 49.00 g 0.13 dm³
4062172072052 Shipping box
10		 390 mm x 95 mm x 75 mm 253.00 g 2.78 dm³

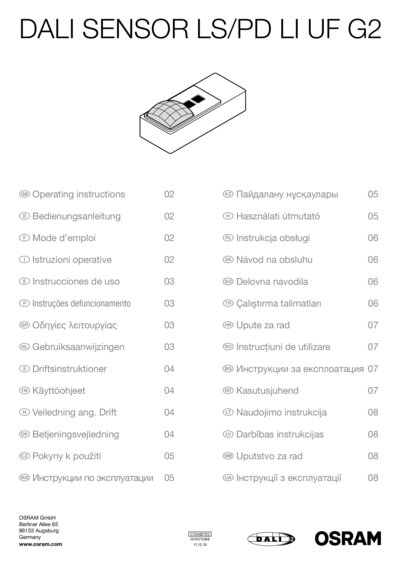

User instruction / safety instructions
DALI2 SENSOR LS/PD LI UF PDF (1.23 MB)
Declarations of conformity
DALI SENSOR LS PD LI PDF (969.63 KB)
EU Data Act
Connected Products and Related Software and Services PDF (346.28 KB)

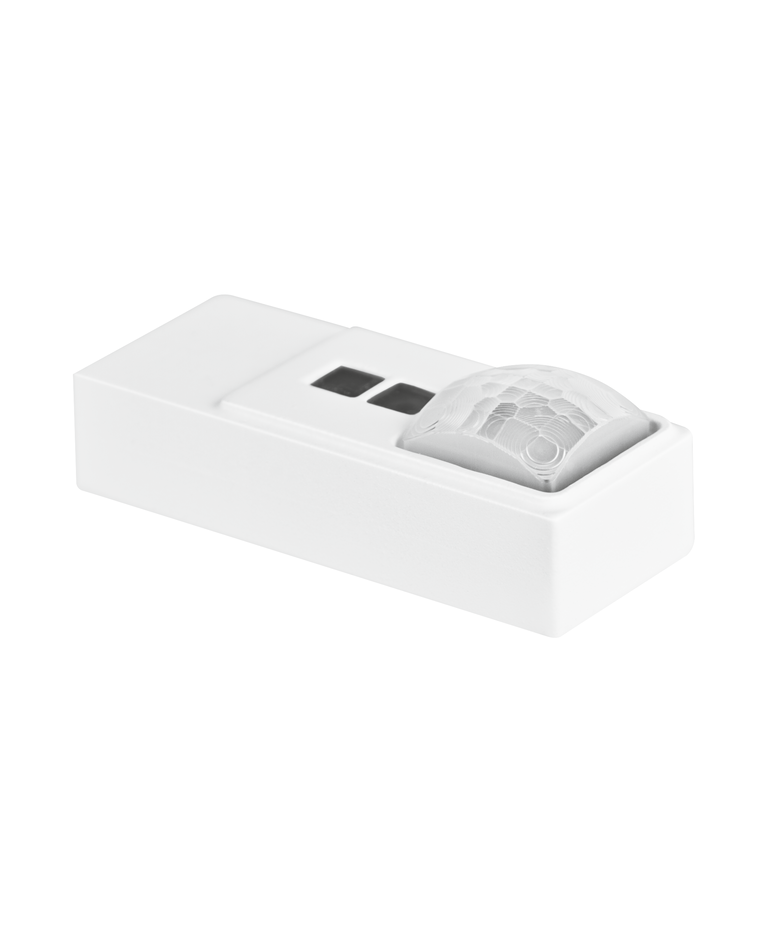

Product image: white background, diagonal
729390_LS/PD LT2 LI UF TIF (20.29 MB)
Product line drawing with letters
729426_LS/PD LT2 LI UF SVG (20.41 KB)
Product line drawing with numbers
729427_LS/PD LT2 LI UF SVG (20.11 KB)
Catalog info 1

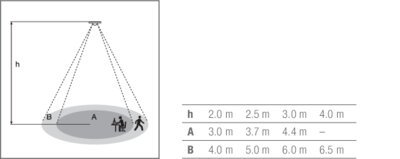

Vivares sensor table PDF (19 KB)
EAN SEG number ELDAS number
4062172072045 7985351 535954600
