PRODUCT INFORMATION



Orbis London 480 mm 36W 830 WT

PRODUCT DETAILS

Electrical data

Nominal wattage 36.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 160.000 mA
Max. number of luminaires per miniature circuit breaker B16 50
Max. number of luminaires per miniature circuit breaker C16 66
Power factor λ > 0.5
Total harmonic distortion < 13 %
Protection class I
Operating mode Electronic control gear (ECG)

Photometrical data

Luminous flux 2500 lm
Total luminous flux of contained light sources 4700 lm
Luminous efficacy 69 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °

Dimensions & Weight

Diameter 480.00 mm
Height 95.00 mm
Product weight 1270.00 g

Materials & Colors

Product color White
Housing color White
Body material Metal
Cover material Plastic
Glow Wire Test according to IEC 60695-2-12 650 °C

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP20
Dimmable No
Mounting type Surface
Application environment Indoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable

Additional product data

Number of illuminants empty

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Very homogenous light
  • Elegant design
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children's rooms or home offices
Product features
  • Decorative domestic lighting
  • Ceiling luminaire with advanced LED technology
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075829220 Folding box
1		 100 mm x 500 mm x 500 mm 1709.00 g 25.00 dm³
4058075829237 Shipping box
4		 520 mm x 420 mm x 520 mm 8223.00 g 113.57 dm³

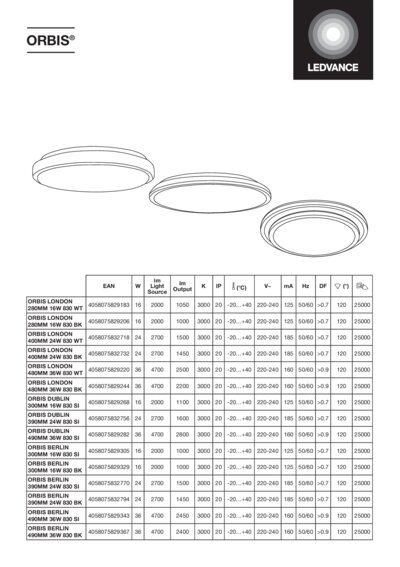

User instruction / safety instructions
ORBIS PDF (666.35 KB)

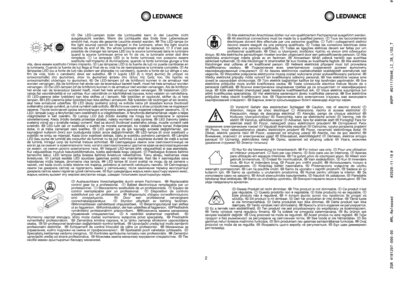

Legal information
Legal Insert PDF (1.41 MB)

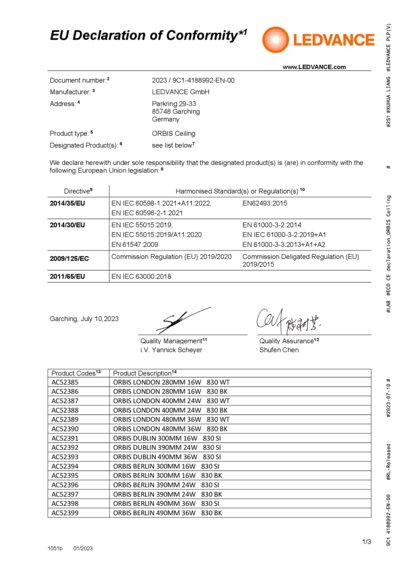

Declarations of conformity
ORBIS LONDON DUBLIN BE RLIN PDF (386.65 KB)

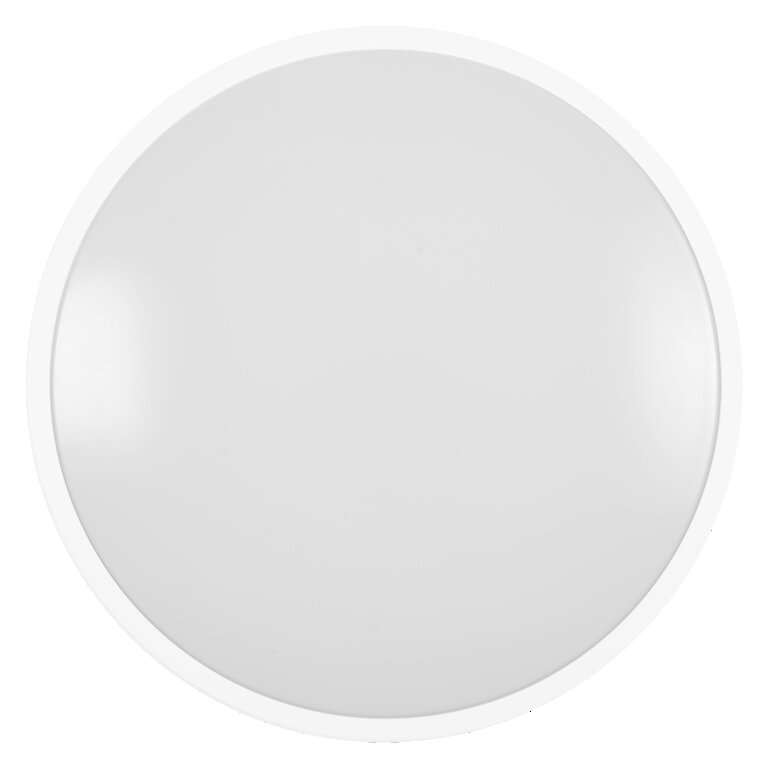

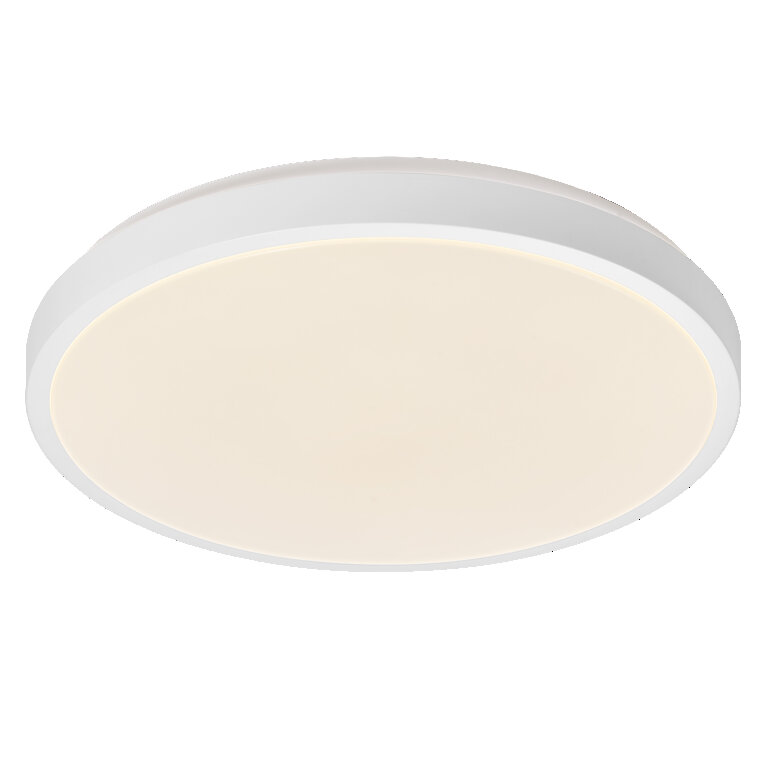

Product image: white background, upright
ORBIS LONDON 500MM 36W 830 WT JPG (509.57 KB)

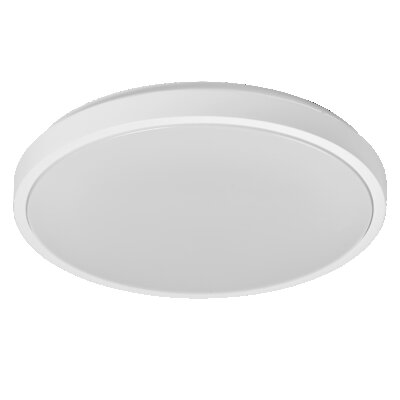

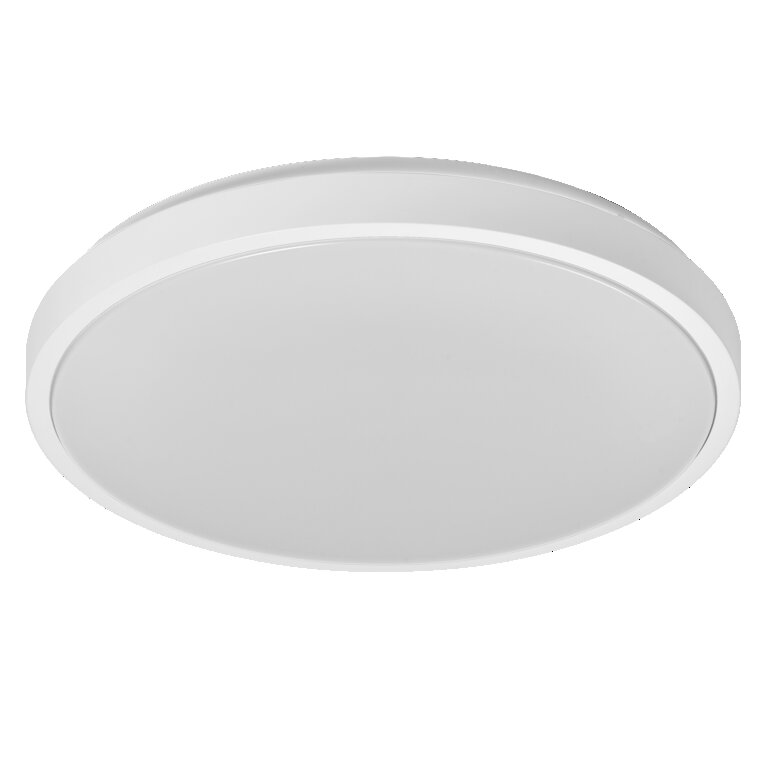

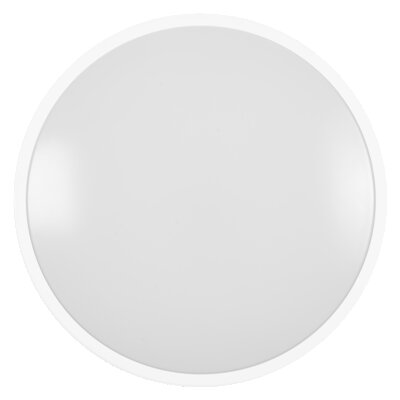

Product image: white background, upright, alternative image
ORBIS LONDON 500MM 36W 830 WT JPG (402.15 KB)
Product image: white background, upright, switched on
ORBIS LONDON 500MM 36W 830 WT JPG (405.29 KB)
Product infographic (application image with text and graphic)
ORBIS non-smart e-Com graphic 1200x1200px 20 25 EN JPG (618.46 KB)

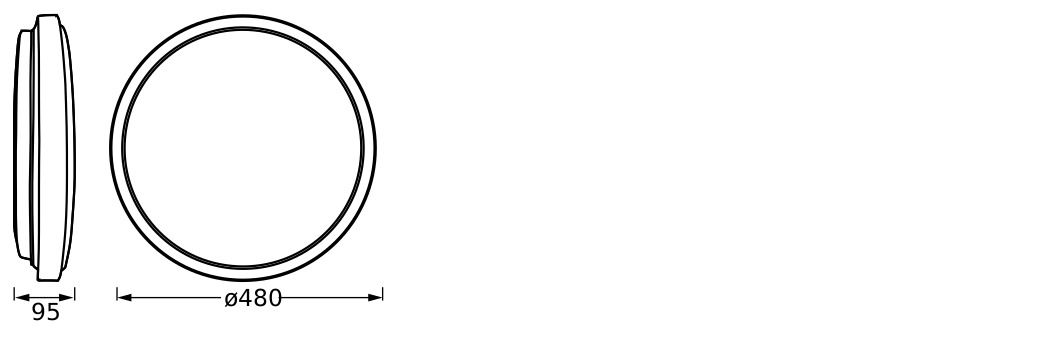

Product line drawing with letters
ORBIS LONDON 500MM 36W 830 WT SVG (101.26 KB)
Product line drawing with numbers
ORBIS LONDON 500MM 36W 830 WT JPG (22.81 KB)
Product line drawing, front, no dimensions
ORBIS LONDON 500MM 36W 830 WT SVG (7.45 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ORBIS LONDON 48 0 36W WT JPG (566.88 KB)
Packaging image, frontal
LUM FC ORBIS LONDON 48 0 36W WT JPG (852.73 KB)
Packaging image, spacial
LUM FC ORBIS LONDON 48 0 36W WT JPG (767.6 KB)

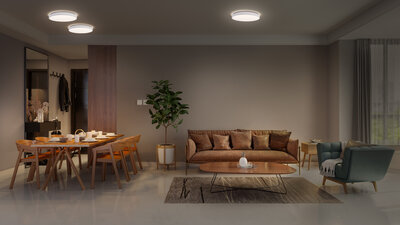

Application pictures Getty
