PRODUCT INFORMATION



Orbis Paris 480 mm 3XE27 White

PRODUCT DETAILS

Electrical data

Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class I
Operating mode Mains voltage

Dimensions & Weight

Diameter 480.00 mm
Height 105.00 mm
Product weight 910.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel|TC fabric|PVC
Cover material Polystyrene (PS)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP20
Dimmable No
Mounting type Surface
Application environment Indoor
With light source No
Replaceable light source No

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Replaceable LED lamp
  • Elegant design
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children's rooms or home offices
Product features
  • Decorative domestic lighting
  • Ceiling luminaire with socket
  • Fabric material
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075829022 Folding box
1		 112 mm x 492 mm x 492 mm 1435.00 g 27.11 dm³
4058075829039 Shipping box
4		 506 mm x 506 mm x 475 mm 6885.00 g 121.62 dm³

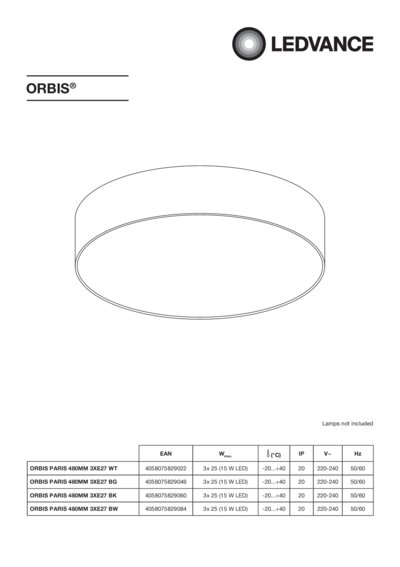

User instruction / safety instructions
ORBIS PDF (572 KB)
Legal information
Legal Insert PDF (1.14 MB)
Declarations of conformity
ORBIS MADRID PARIS MIL AN PDF (387.58 KB)

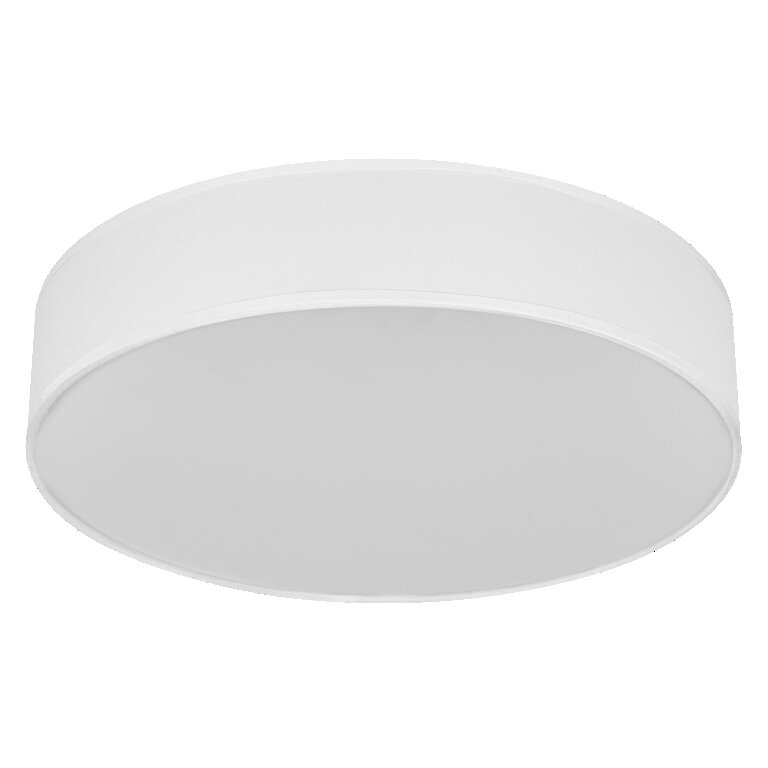

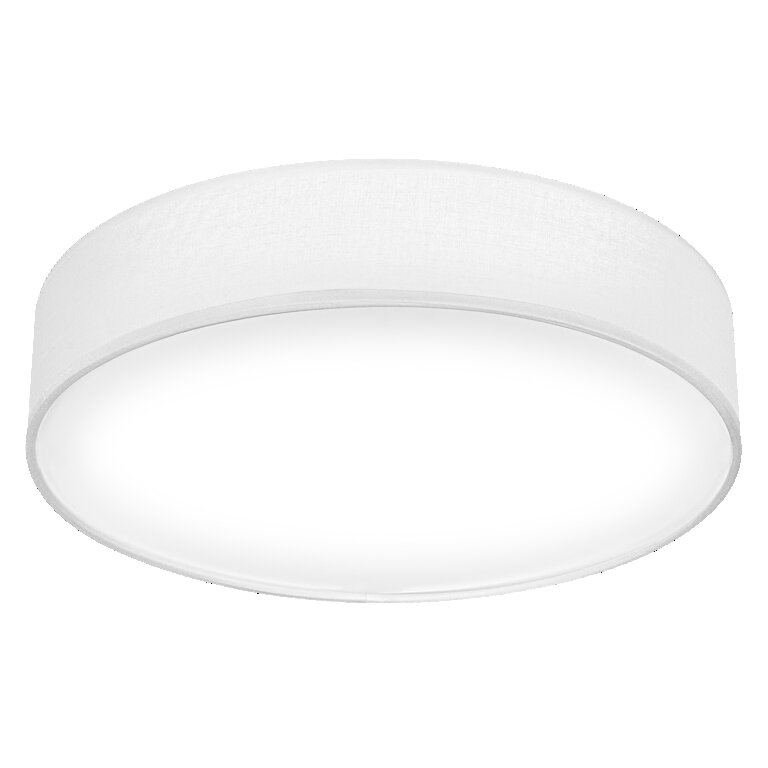

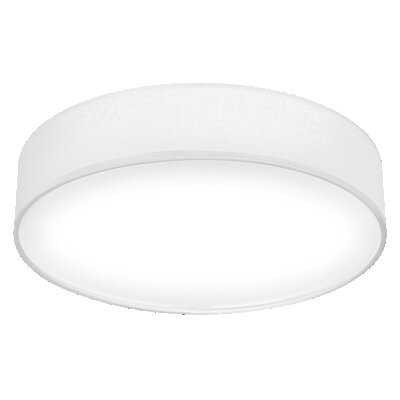

Product image: white background, upright
ORBIS PARIS 480MM 3XE2 7 WT JPG (741.44 KB)

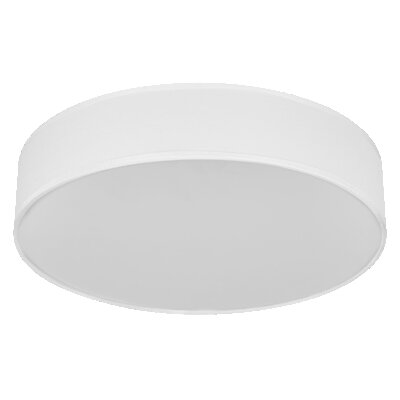

Product image: white background, upright, alternative image
ORBIS PARIS 480MM 3XE2 7 WT JPG (1.17 MB)

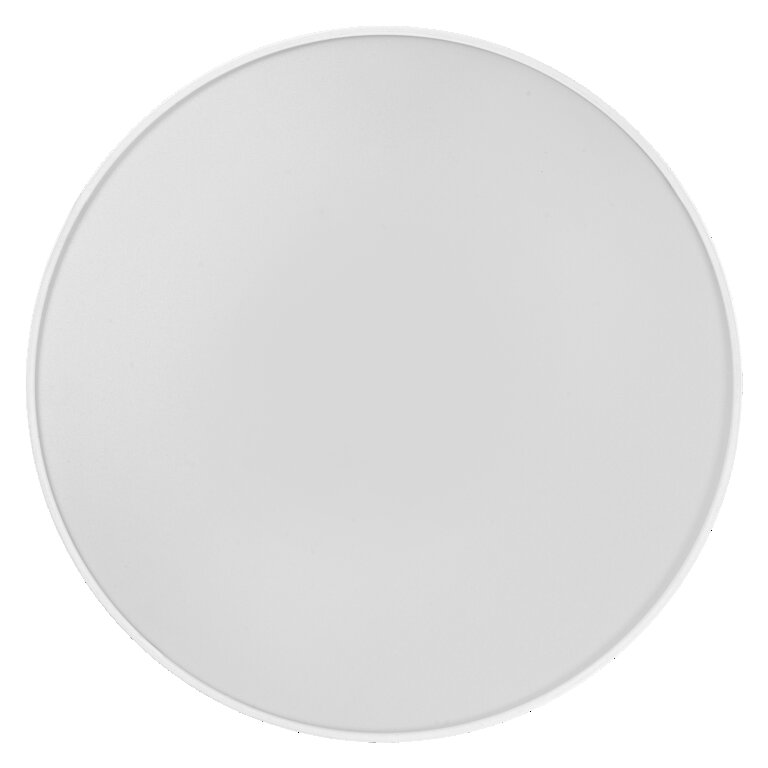

Product image: white background, upright, switched on
ORBIS PARIS 480MM 3XE2 7 WT JPG (763.81 KB)
Product infographic (application image with text and graphic)
ORBIS non-smart e-Com graphic 1200x1200px 20 25 EN JPG (618.46 KB)
Product line drawing with letters
ORBIS PARIS SVG (4.35 KB)

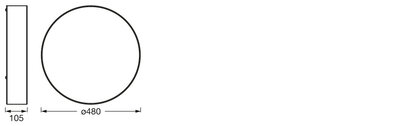

Product line drawing with numbers
