| Nominal wattage | 8.60 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 76.000 mA |
| Inrush current | 6 A |
| Inrush current time Th50 | 500 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 26 |
| Max. number of luminaires per miniature circuit breaker C10 | 26 |
| Max. number of luminaires per miniature circuit breaker C16 | 42 |
| Power factor λ | > 0.5 |
| Protection class | I |
| Operating mode | Mains voltage |
| Luminous flux | 420 lm |
| Total luminous flux of contained light sources | 700 lm |
| Luminous efficacy | 48 lm/W |
| Color temperature | 2700 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Luminous intensity | 1200 |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 36 ° |
| UGR | < 25 |

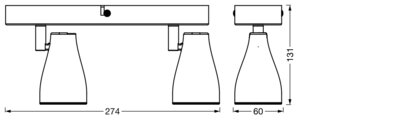

| Length | 274.00 mm |
| Height | 131.00 mm |
| Width | 60.00 mm |
| Product weight | 480.00 g |
| Product color | White |
| Housing color | White |
| Body material | Plastic|METAL |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal, 3-Pole |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | GU10 |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

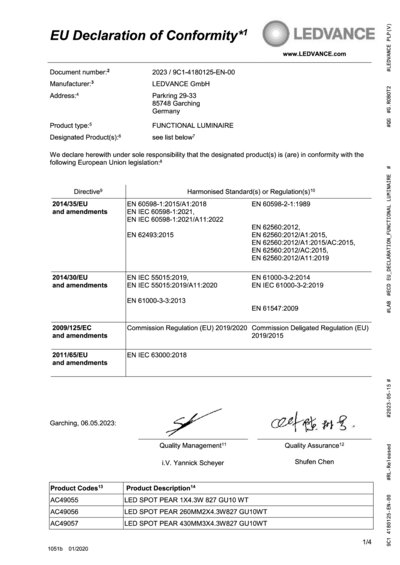

| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Product remark | Maximum bulb wattage: 5 W LED |
| Number of illuminants | 2 |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) Tetraboron disodium heptaoxide, hydrate (12267-73-1) Arsenic acid (7778-39-4) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

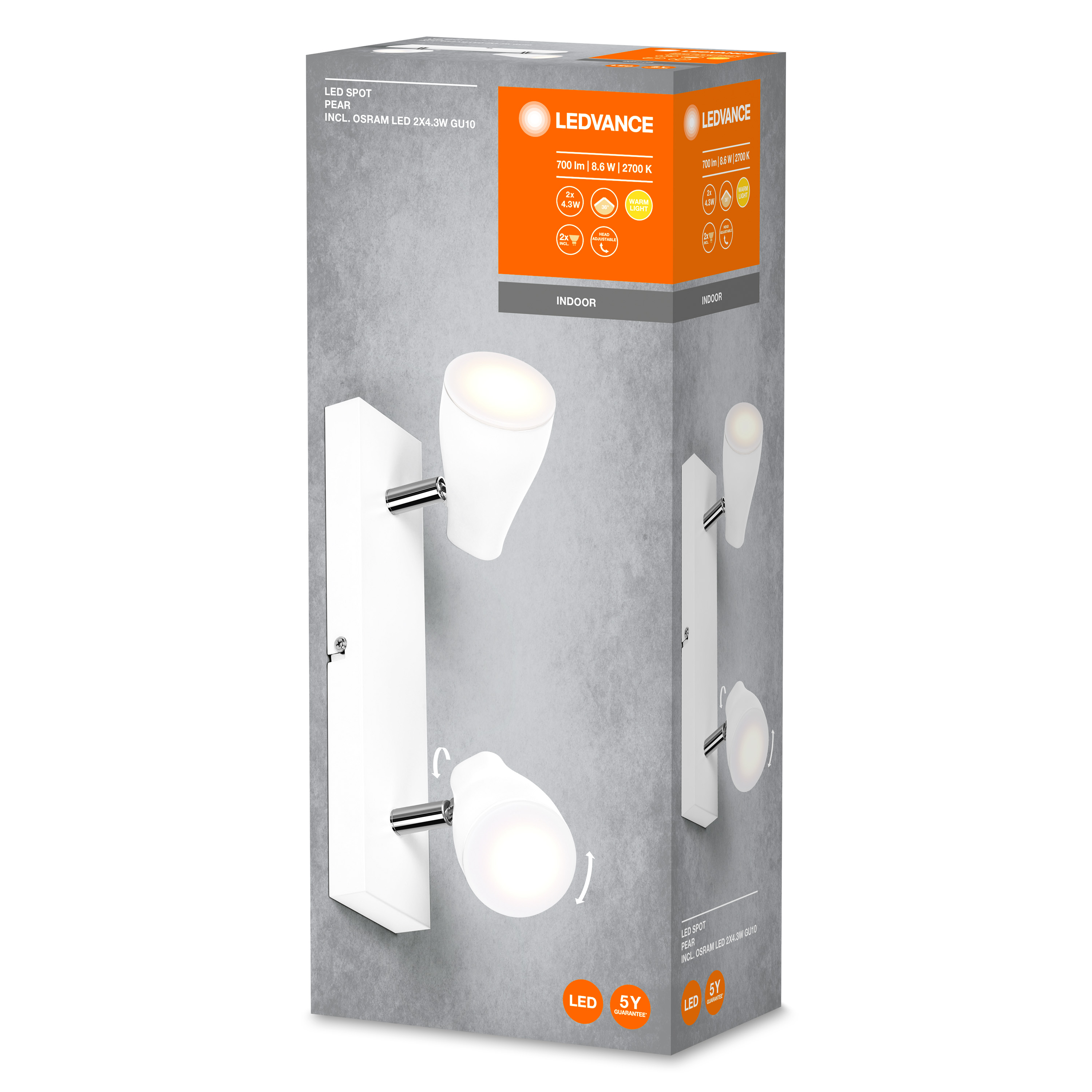

| 4058075826434 | Folding box 1 |
80 mm x 130 mm x 310 mm | 600.00 g | 3.22 dm³ |
| 4058075826441 | Shipping box 6 |
326 mm x 258 mm x 290 mm | 4125.00 g | 24.39 dm³ |
