PRODUCT INFORMATION



SP FIX P 8W 927 PS DIM IP44 WT

PRODUCT DETAILS

Electrical data

Nominal wattage 8 W / 6 W / 4 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 37mA / 28mA / 20 mA
Inrush current 2 A
Inrush current time Th50 60 µs
Max. number of luminaires per miniature circuit breaker B16 336
Max. number of luminaires per miniature circuit breaker C10 210
Max. number of luminaires per miniature circuit breaker C16 336
Power factor λ 0.90
Total harmonic distortion < 20 %
Protection class II
Surge capability (L-N) 1 kV
Surge capability (L/N-Ground) 1 kV
Operating mode Electronic control gear (ECG)

Photometrical data

Luminous flux 640 lm / 480 lm / 320 lm
Total luminous flux of contained light sources 620 lm
Luminous efficacy 80 lm/W
Color temperature 2700 K
Reference control setting of contained light source (Kelvin) 2700 K
Light color (designation) Warm white
Color rendering index Ra 90
Standard deviation of color matching ≤3 sdcm
Luminous intensity 1200 cd
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 36 °
UGR < 28

Dimensions & Weight

Diameter 81.00 mm
Height 42.00 mm
Product weight 240.00 g

Materials & Colors

Product color White
Housing color White
RAL Color (most similar) RAL 9016
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Push terminal
Type of protection IP44~IP20
Protection class IK (shock resistance) IK05
Dimmable Yes
Type of dimming PHASE CUT
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 68 mm
Mounting depth 50,0 mm
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 41000 h 1)
Lifespan L90/B10 at 25 °C 18000 h
Number of switching cycles 30000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 180 mA
ECG - Output ripple current < 10 %
ECG - Length 68.00 mm
ECG - Width 55,0 mm
ECG - Height 22,0 mm

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00013-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 90 % compared to halogen lamp spotlights

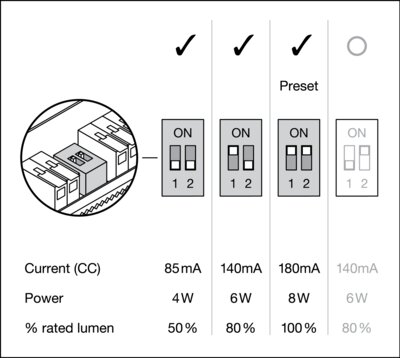

  • Powerselect: Brightness adjustment via dip switches on the driver
  • Easy replacement of external driver thanks to plug with bayonet lock
  • Easy installation and electrical connection thanks to tool-free electrical connectors
  • SCALE Design – great appearance, valuable materials and small size fits into every surrounding
  • 5 years guarantee
Areas of application
  • Direct replacement for recessed spotlights with halogen lamps
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Accent lighting
  • Galleries, museums
  • Residential interiors
Product features
  • Color rendering index Ra: 90
  • Type of protection: IP44 (room side)
  • Beam angle: 36°
  • Die-cast aluminum housing
  • Silicon-pad protected springs
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Through-wiring possible
Equipment / Accessories
  • External control gear included with dip-switches to select power during installation
  • Refurbishment rings are available as accessory
  • Selected DALI 2.0 driver available as accessory
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075799523 Folding box
1		 100 mm x 105 mm x 85 mm 284.00 g 0.89 dm³
4058075799530 Shipping box
20		 562 mm x 230 mm x 195 mm 6030.00 g 25.21 dm³
User instruction / safety instructions

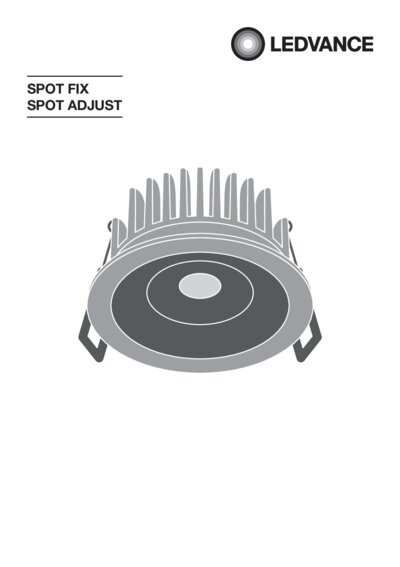

UI SP FIX P and SP FIX ADJ PDF (3.71 MB)
Addon technical information

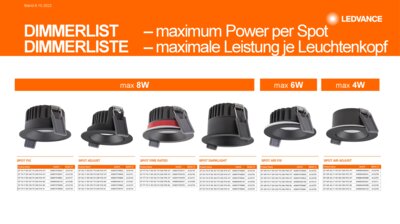

Dimmerlist SPOT GEN2 PDF (1.62 MB)
Legal information

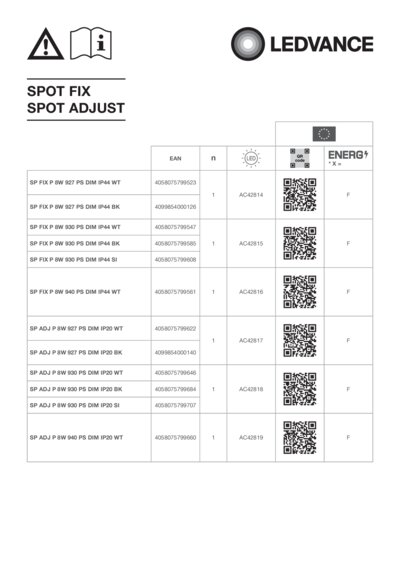

Light source Insert SP FIX P PS DIM IP44 PDF (2.66 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information

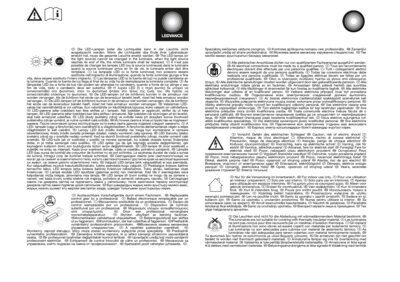

Legal Insert G11147511 PDF (879.76 KB)
Legal information

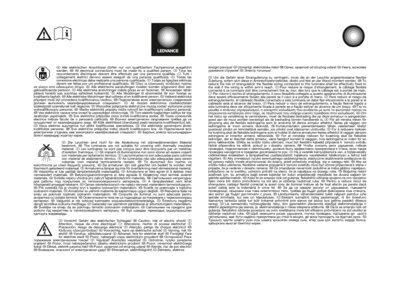

Safety Insert G1123500 1 PDF (268.05 KB)
Declarations of conformity

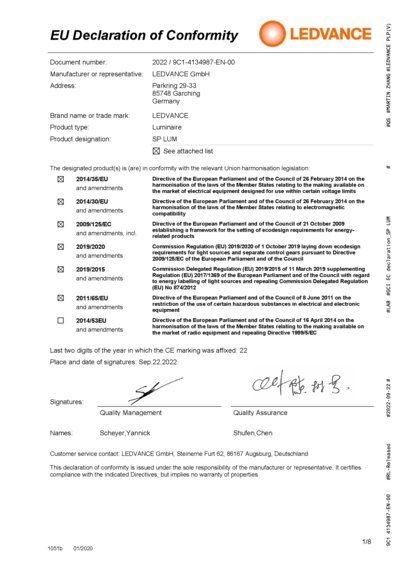

CE Declaration of Conf ormity SPOT DIM PDF (208.07 KB)
Certificates

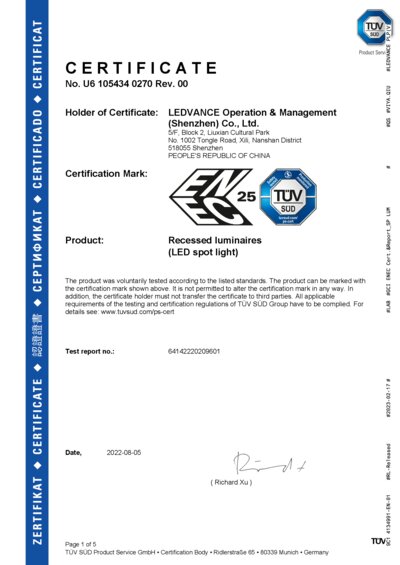

SP GEN2 PDF (758.55 KB)
EPD

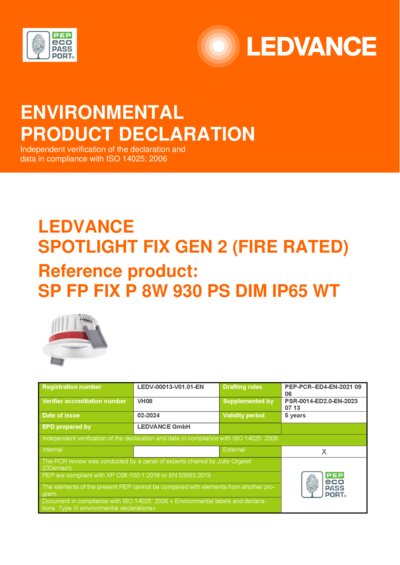

EPD EN SPOTLIGHT FIX G EN 2 FIRE RATED PDF (648.02 KB)

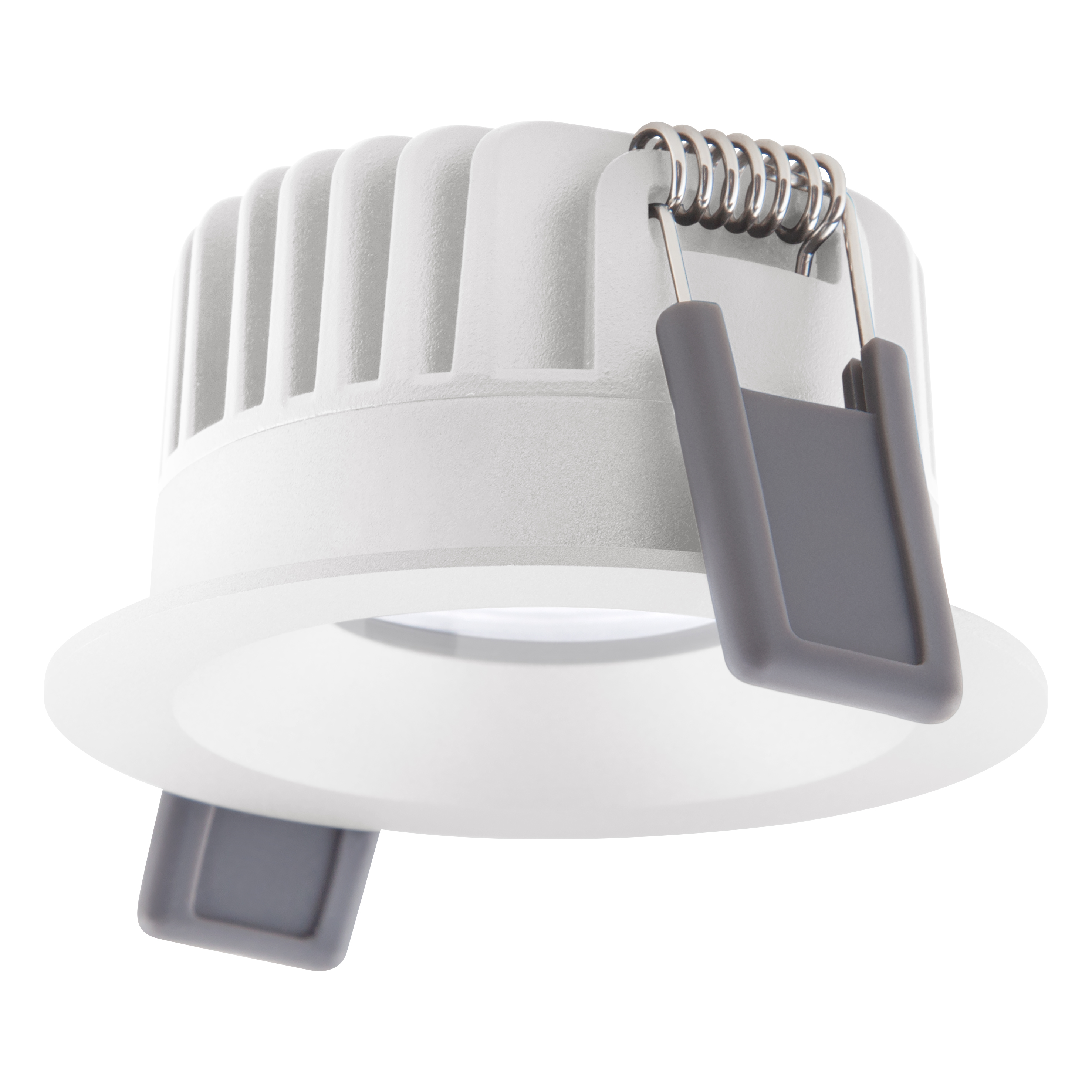

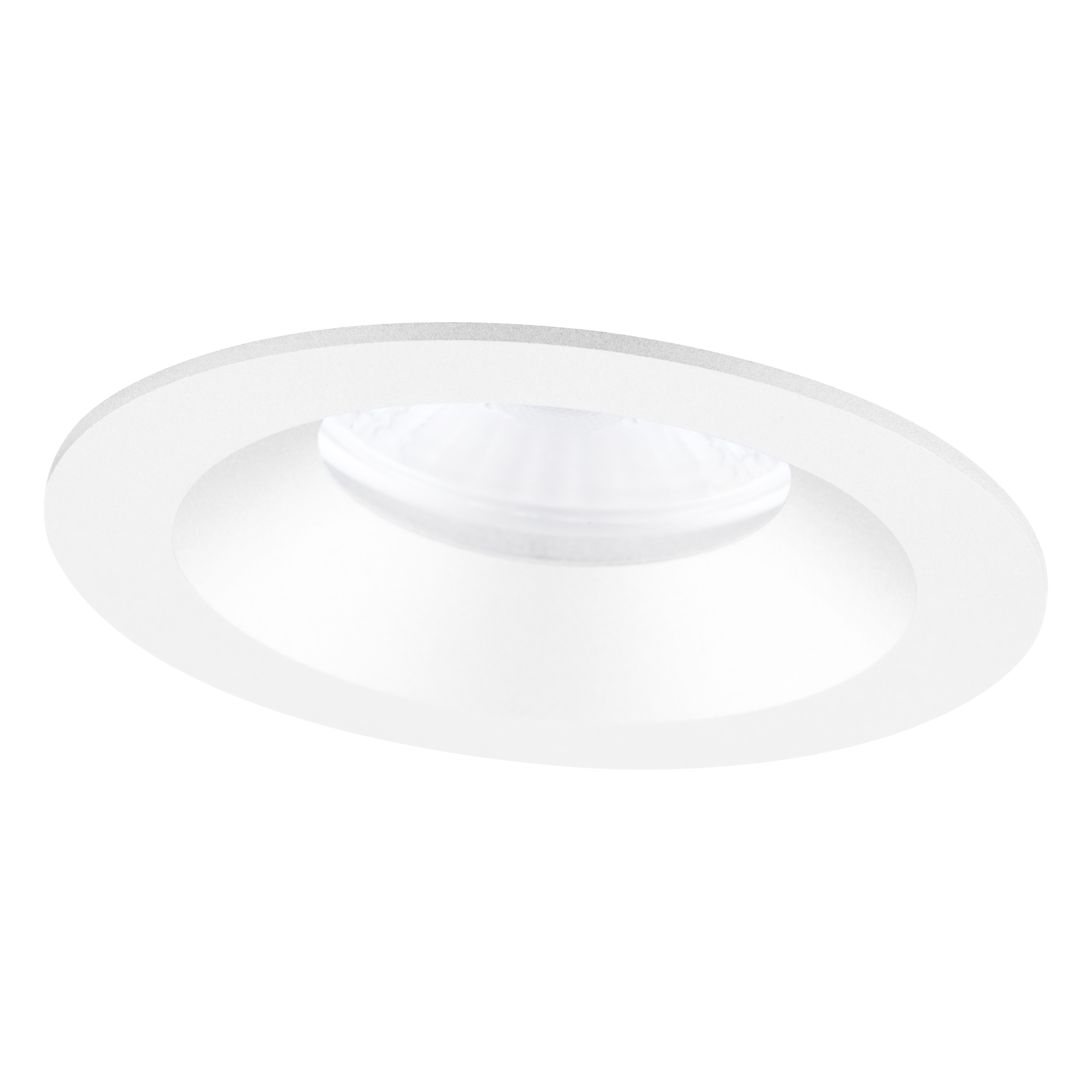

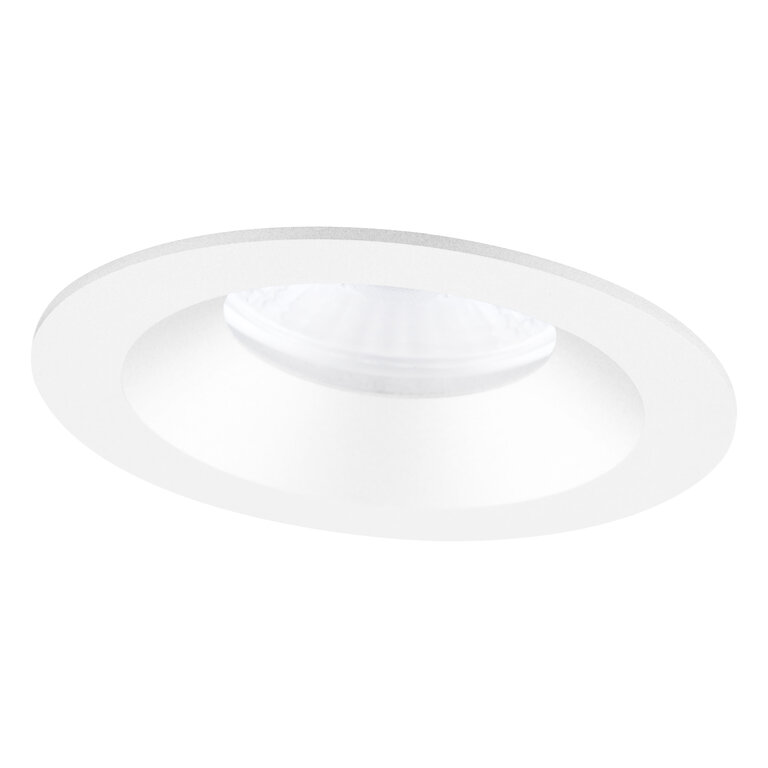

Product image: white background, diagonal
SP FIX P 8W PS DIM IP4 4 WT JPG (1.75 MB)

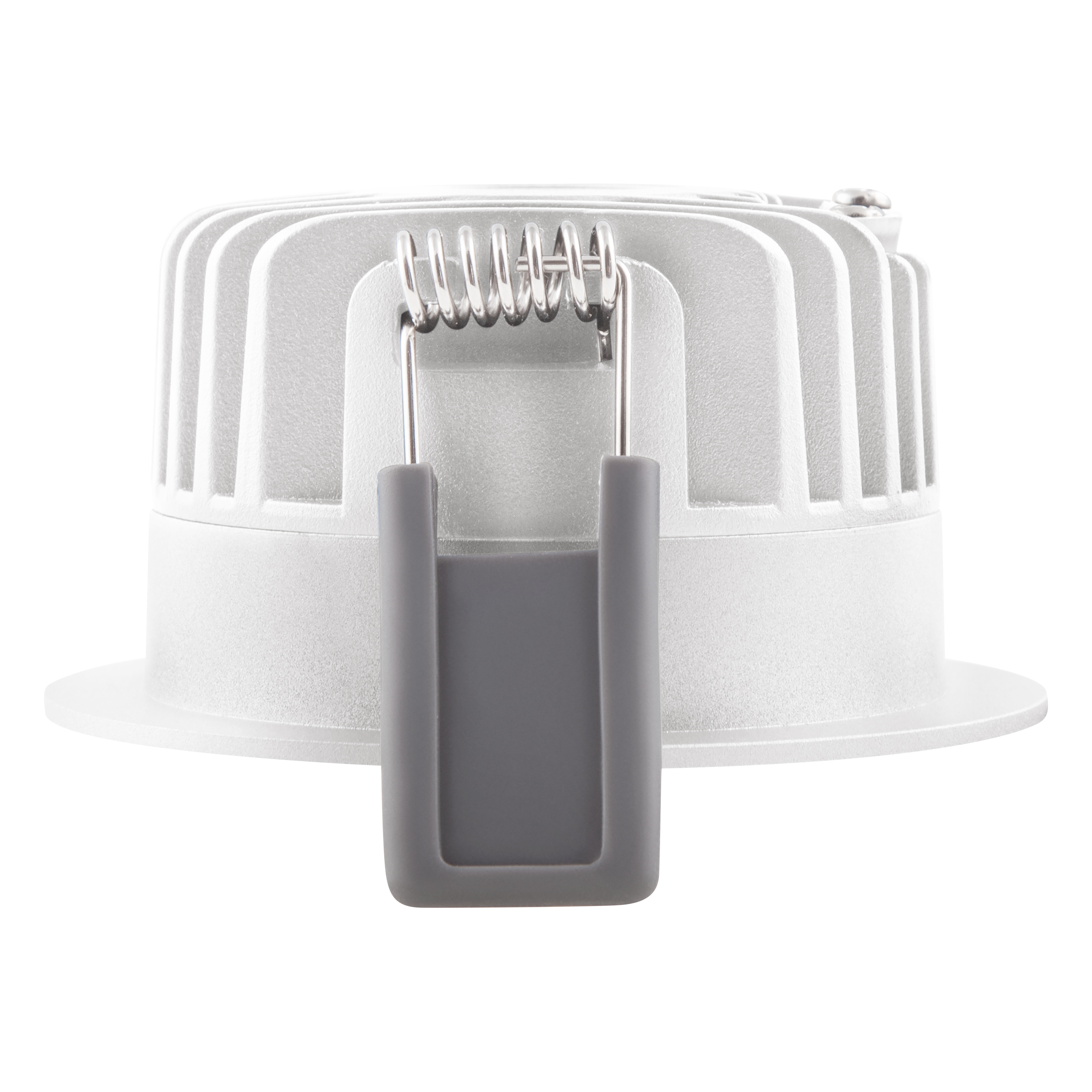

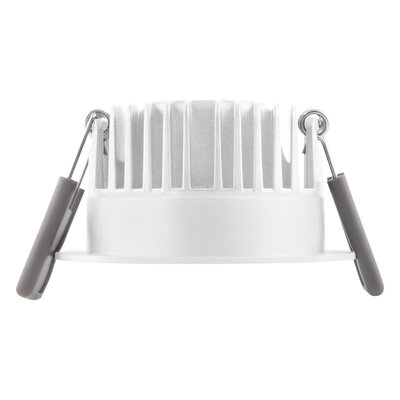

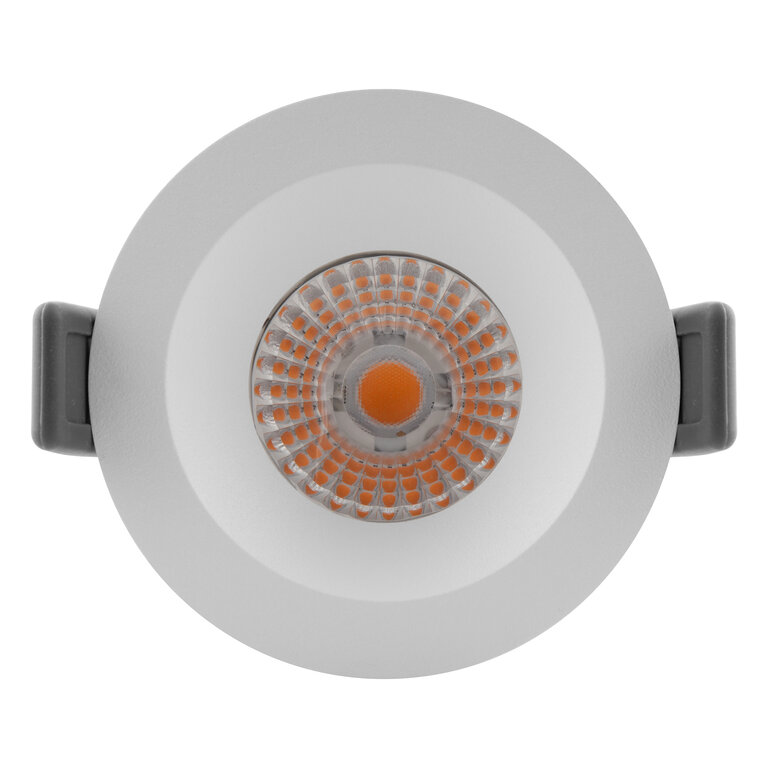

Product image: white background, horizontal
SP FIX P 8W PS DIM IP4 4 WT JPG (1.67 MB)

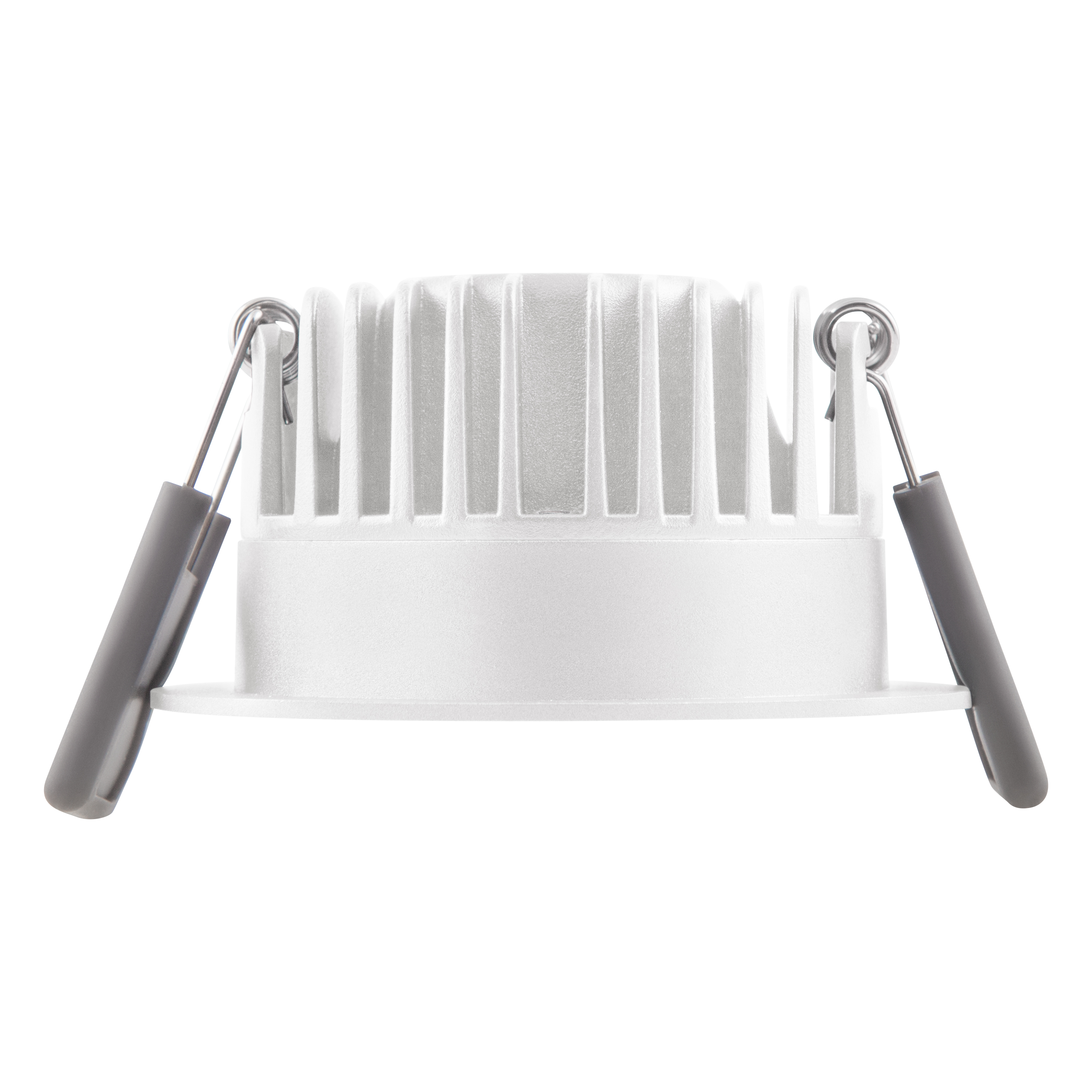

Product image: white background, horizontal, alternative image
SP FIX P 8W PS DIM IP4 4 WT JPG (1.85 MB)

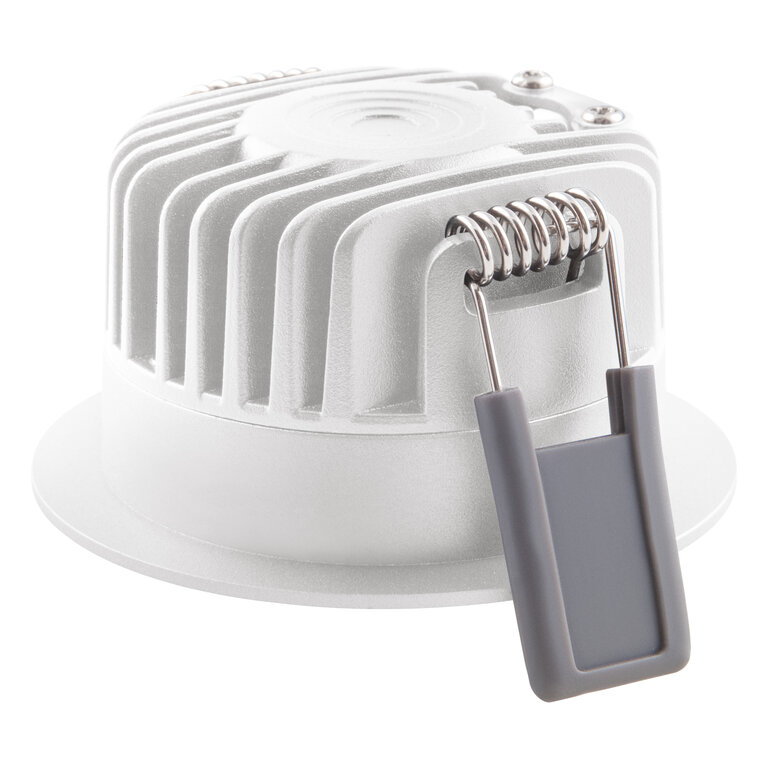

Product image: white background, upright
SP FIX P 8W PS DIM IP4 4 WT JPG (966.54 KB)
Product line drawing with letters
SP FIX P 8W PS DIM IP4 4 SVG (36.47 KB)
Product line drawing with numbers
SP FIX P 8W PS DIM IP4 4 SVG (39.13 KB)
Product line drawing - technical
SP FIX P 8W PS DIM IP4 4 SVG (27.12 KB)

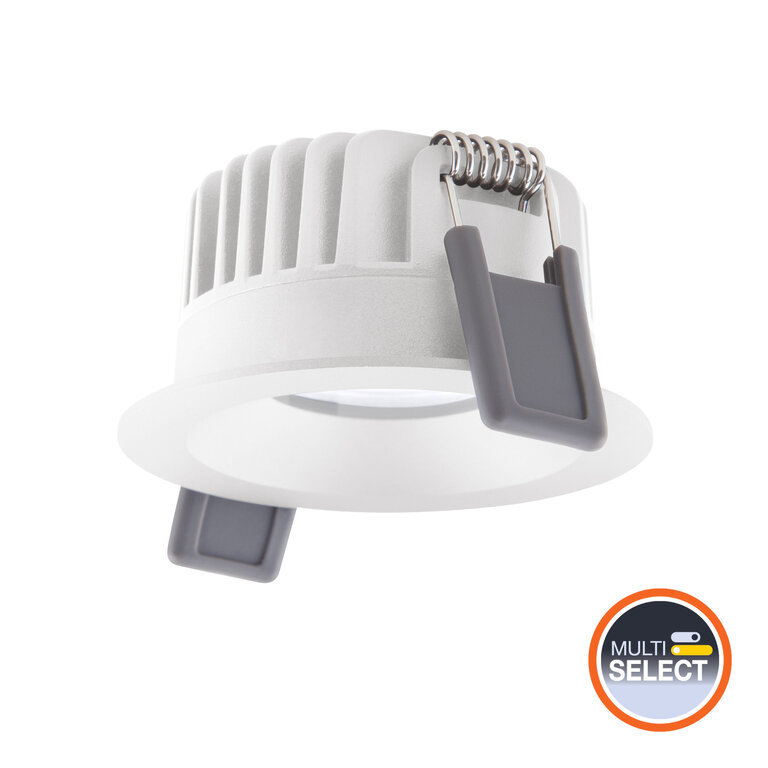

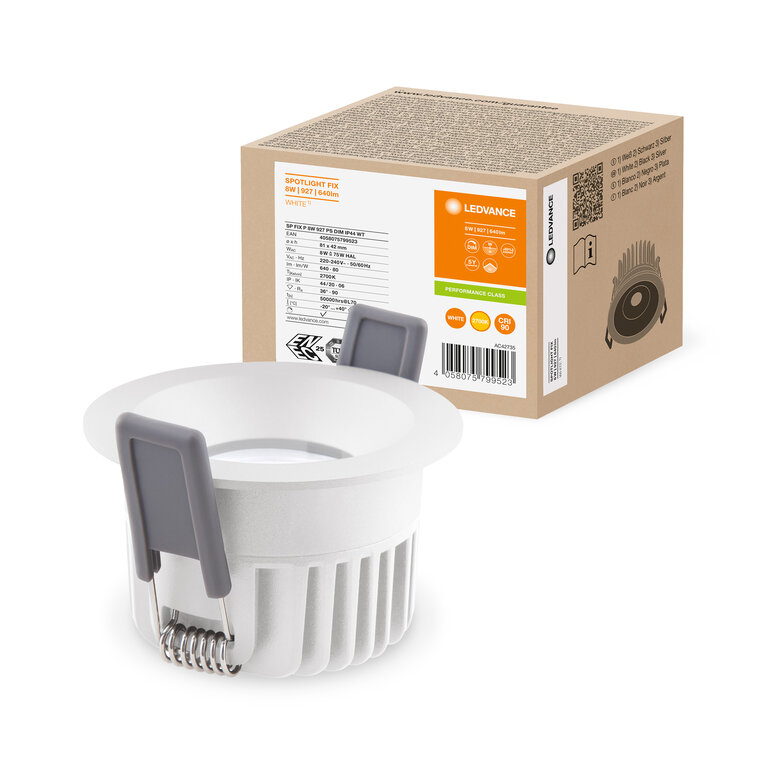

Combo Shot = Product Beauty Shot + Packaging Image
SP FIX P 8W 927 PS DIM IP44 WT JPG (1.49 MB)

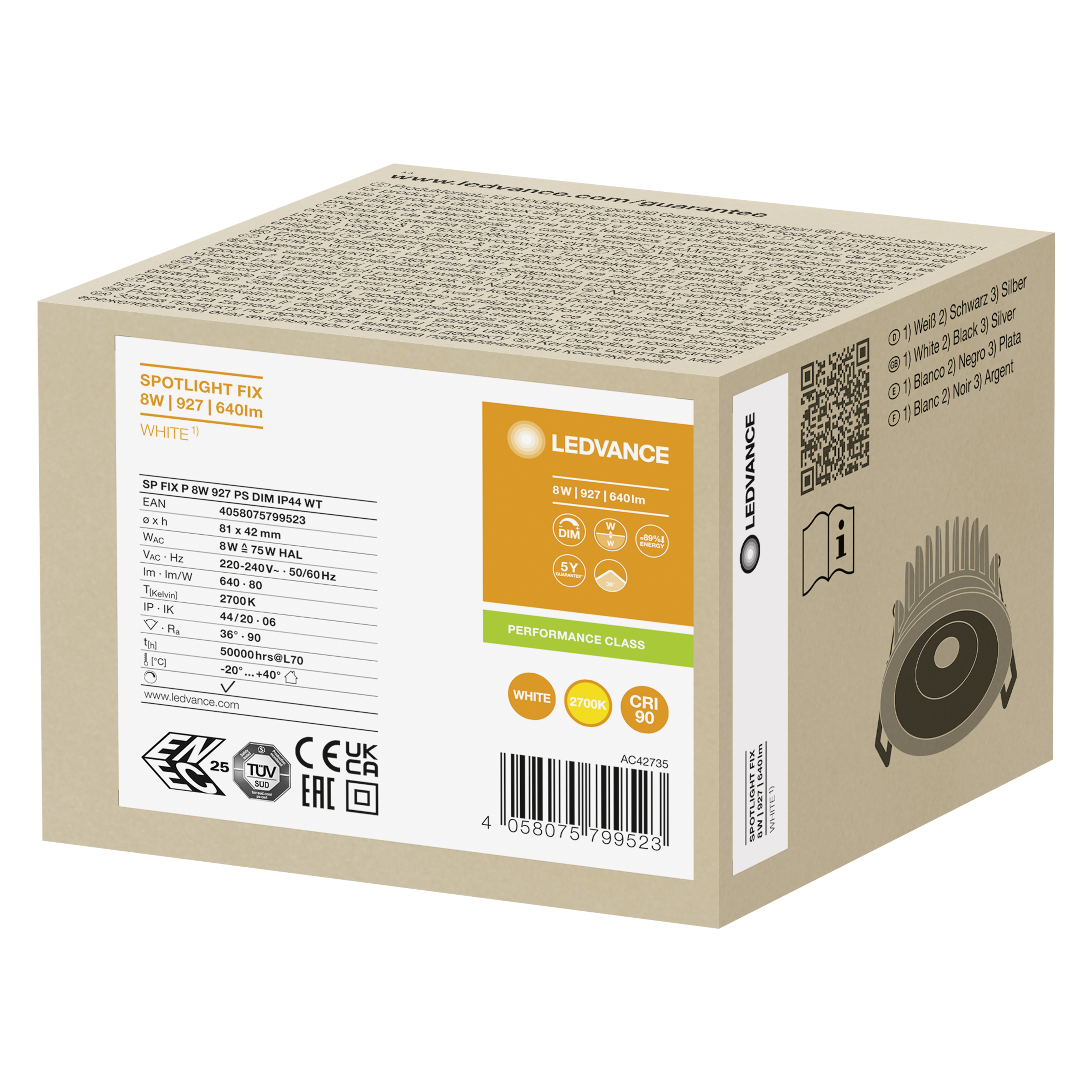

Packaging image, spacial
Spot FIX MiCh JPG (2.54 MB)

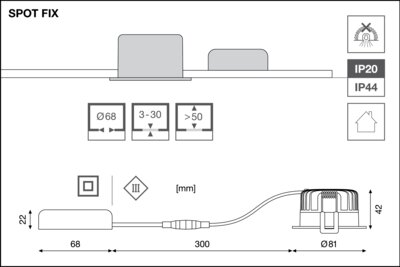

Catalog info 1
SP FIX P PS DIM IP44 PNG (80.37 KB)
Catalog info 2
SP DK FIX P 8W PS DIM IP44 PNG (123.09 KB)
IES file (IES)
SP FIX P 8W 927 PS DIM IP44 WT IES (1.7 KB)
LDT file (Eulumdat)
SP FIX P 8W 927 PS DIM IP44 WT LDT (2.02 KB)
ULD file (DIALux)
SP FIX P 8W 927 PS DI M ULD (129.02 KB)
ROLF file (RELUX)
SP FIX P 8W 927 PS DIM ROLF (848.02 KB)

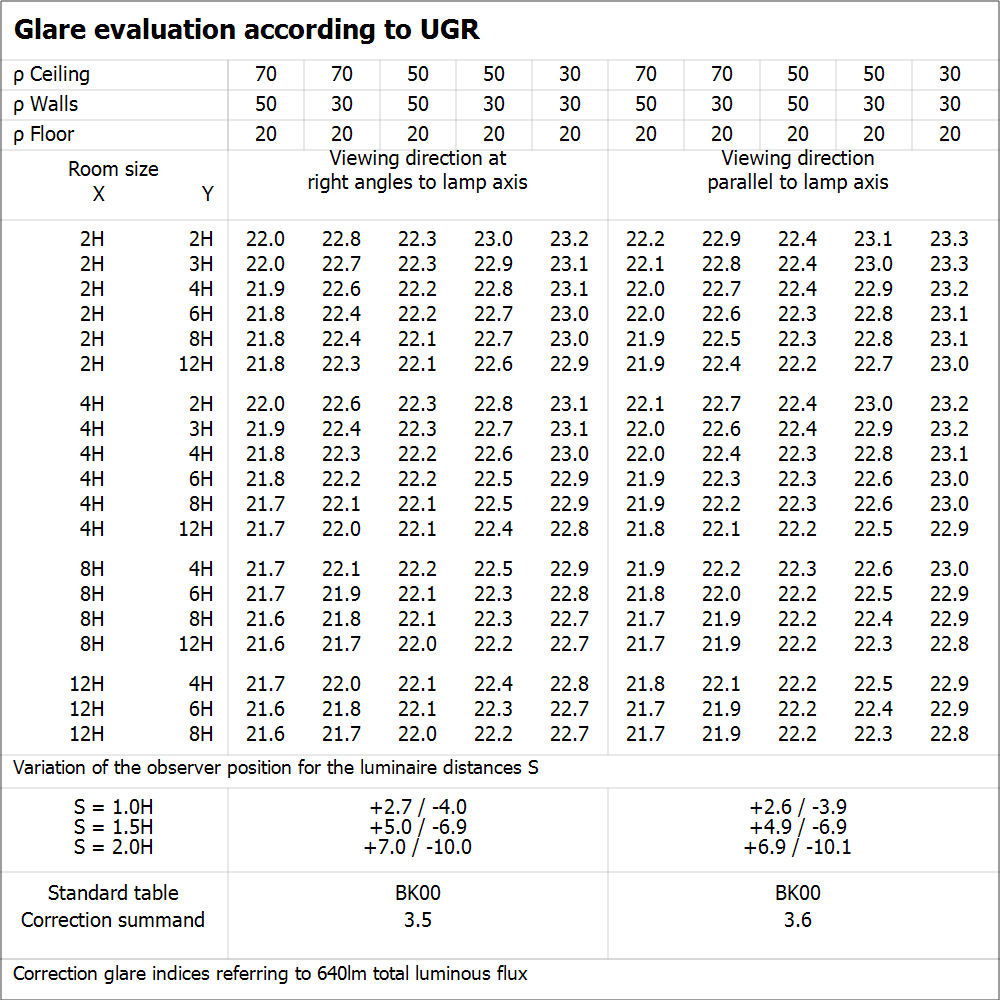

UGR file (UGR table)
