PRODUCT INFORMATION



Orbis Click-CCT 310mm 14W

PRODUCT DETAILS

Electrical data

Nominal wattage 15.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 68 mA
Inrush current 2.22 A
Max. number of luminaires per miniature circuit breaker B16 93
Max. number of luminaires per miniature circuit breaker C10 90
Max. number of luminaires per miniature circuit breaker C16 144
Power factor λ > 0.90
Protection class I
Operating mode External LED driver

Photometrical data

Luminous flux 1000 lm
Total luminous flux of contained light sources 1700 lm
Luminous efficacy 67 lm/W
Color temperature 2700 K / 4000 K / 6500 K
Light color (designation) Warm White, Cool White, Cool Daylight
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °

Dimensions & Weight

Diameter 310 mm
Height 80.00 mm
Product weight 540.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+70 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling
Application environment Indoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 25000 h 1)
Number of switching cycles 12500

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Emergency lighting

Type of emergency light operation Non-maintained
Luminous flux in maintained operation mode -
Luminous flux in emergency operation mode -

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Very homogenous light
  • Easy and quick installation
Areas of application
  • For indoor use only
  • Decorative domestic lighting
  • Ceiling and wall surface mounting
Product features
  • Ceiling luminaire with advanced LED technology
  • Circular light emission
  • Remote-CCT version: color temperature, dimming, timer, memory and night functions via remote control
  • Click-CCT version: color temperature adjustable in three steps by repeated switching
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075651739 Folding box
1		 338 mm x 103 mm x 338 mm 720.00 g 11.77 dm³
4058075651746 Shipping box
5		 542 mm x 357 mm x 369 mm 4580.00 g 71.40 dm³

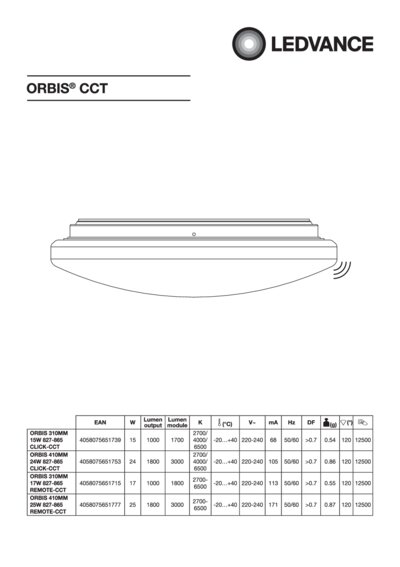

User instruction / safety instructions
ORBIS 3100 410 CCT PDF (766.21 KB)

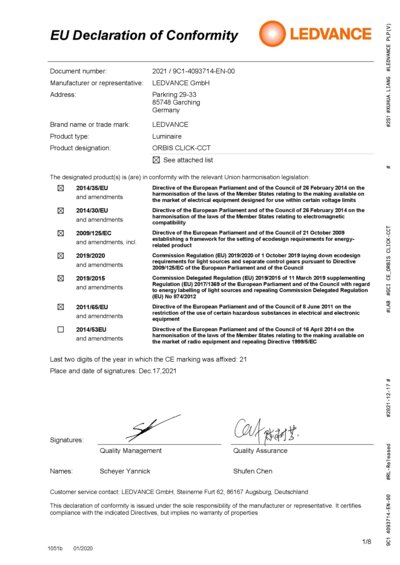

Declarations of conformity
ORBIS 410MM 24W 827-86 5 CLICK-CCT  LEDV PDF (298.73 KB)

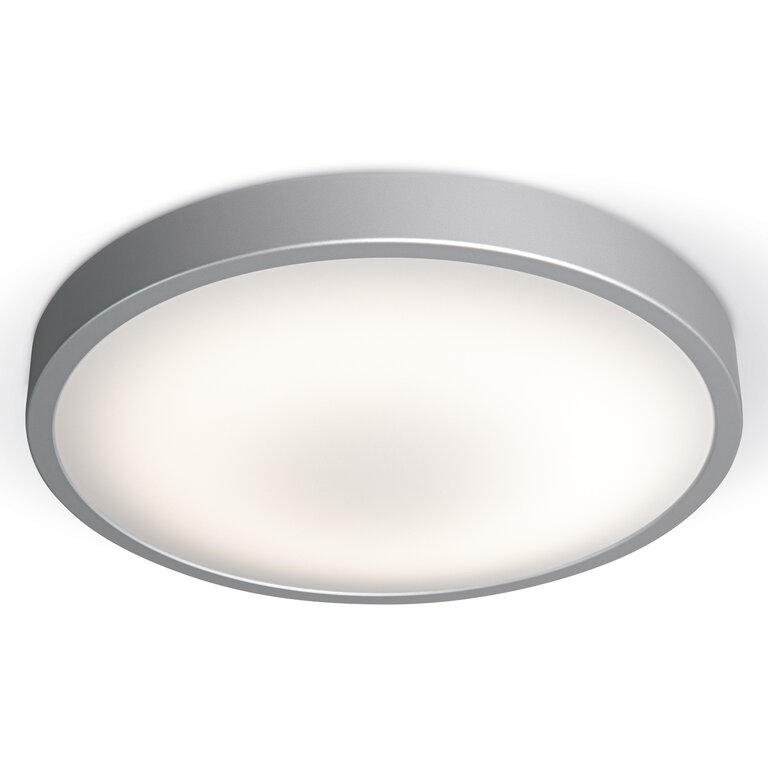

Product image: white background, upright, alternative image
ORBIS 310 CLICK-CCT JPG (810.34 KB)

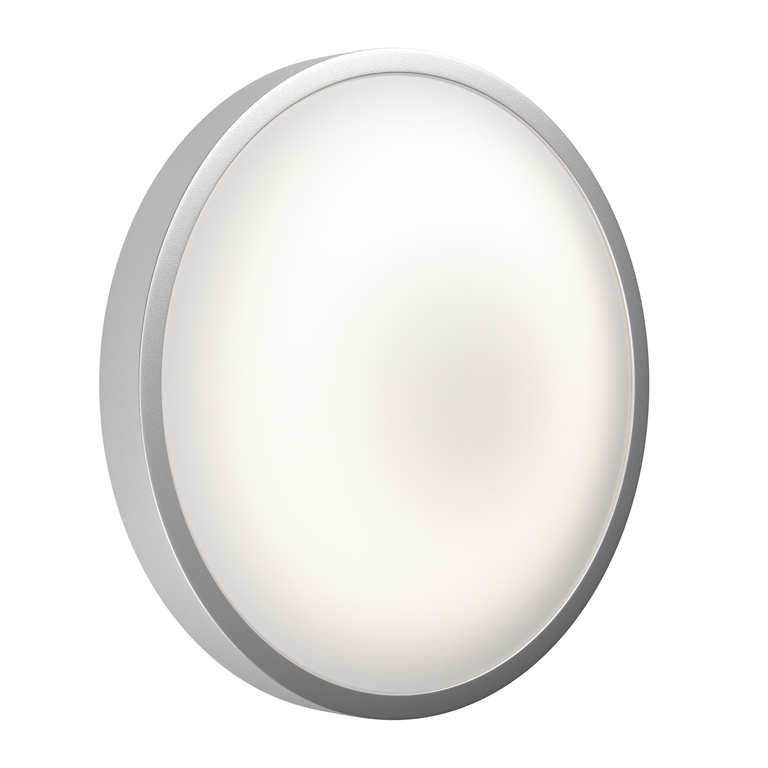

Product image: white background, upright, switched on
ORBIS 310MM 16W 827-86 0 TIF (96.02 MB)

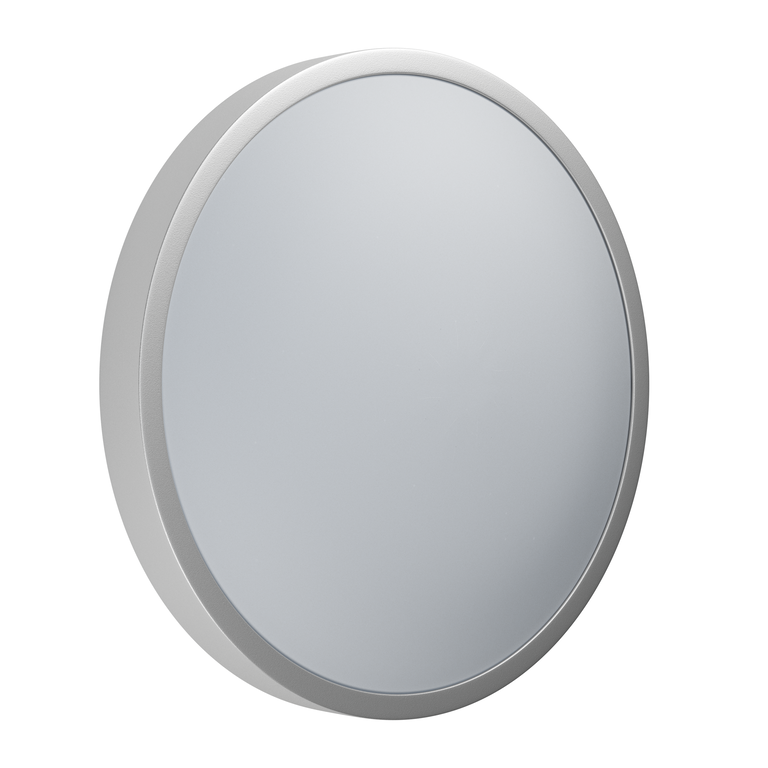

Product image: white background, spacial
ORBIS 310MM 16W 827-86 0 TIF (96.02 MB)
Product line drawing with letters
PG Orbis 310mm Click-/ Remote-CCT MiPRC SVG (14.47 KB)
Product line drawing, front, no dimensions
PG Orbis 310mm Click-/ Remote-CCT MiPRC SVG (12.27 KB)

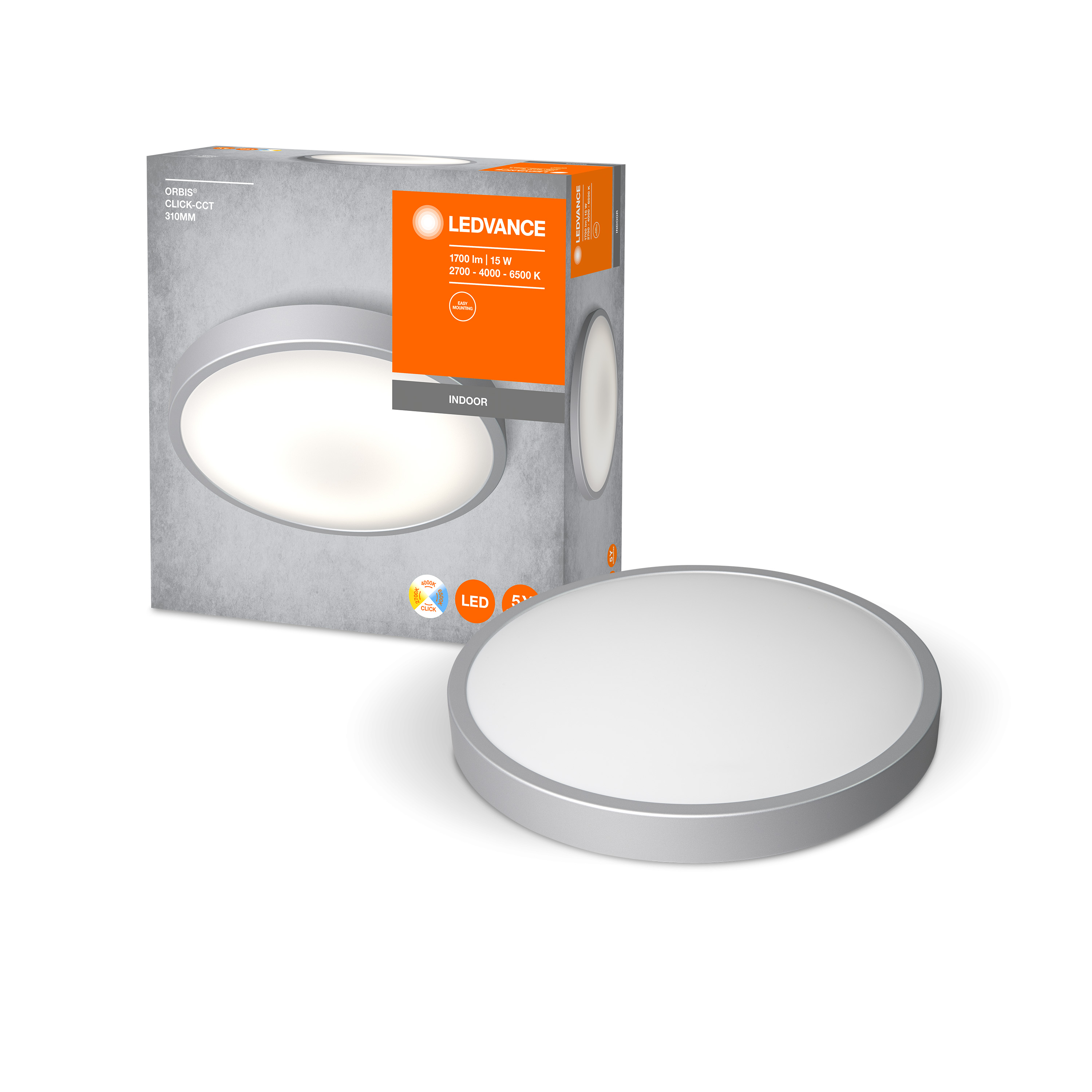

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ORBIS 310 CLICK CCT MiPRC JPG (658.82 KB)

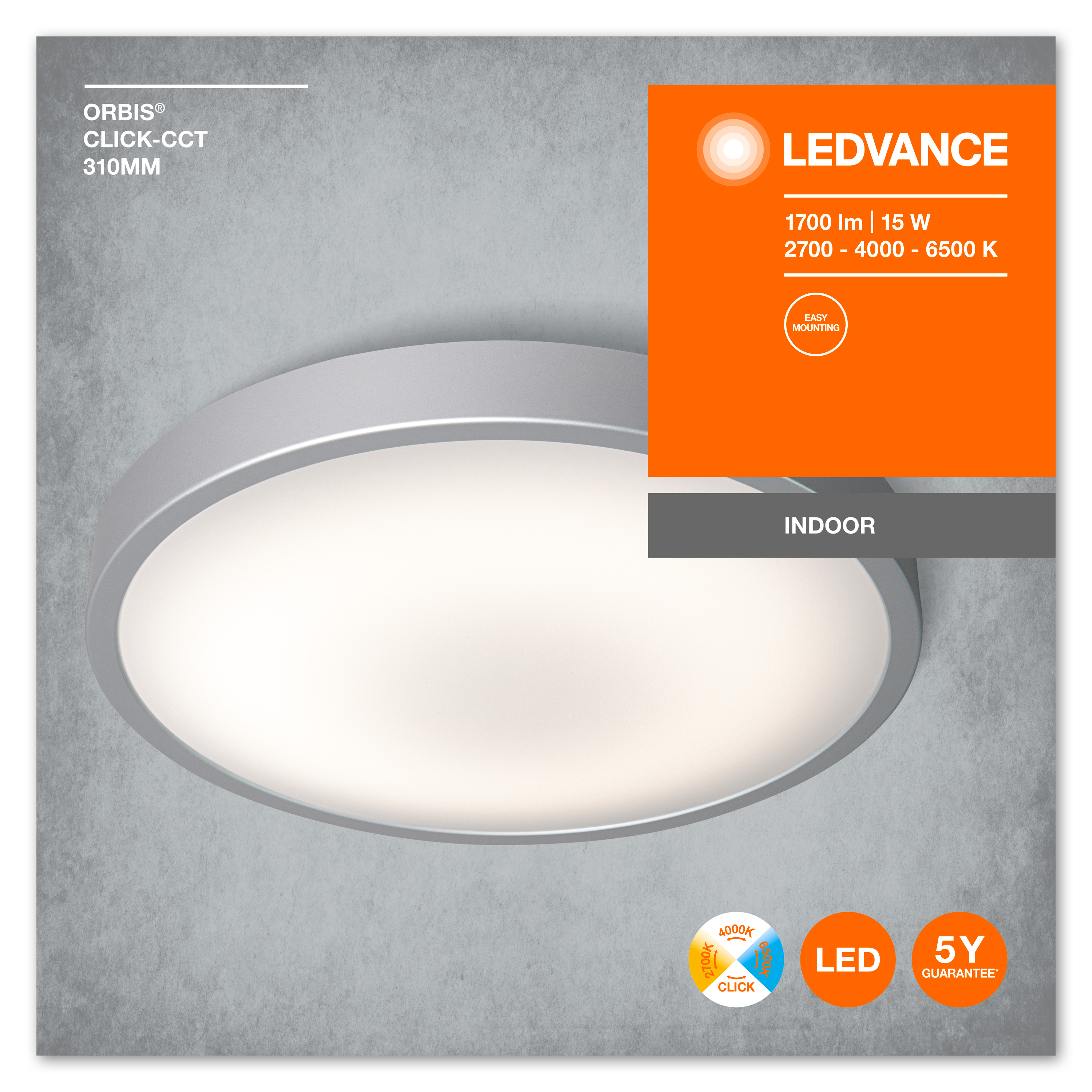

Packaging image, frontal
LUM FC ORBIS 310 CLICK CCT MiPRC JPG (1.36 MB)

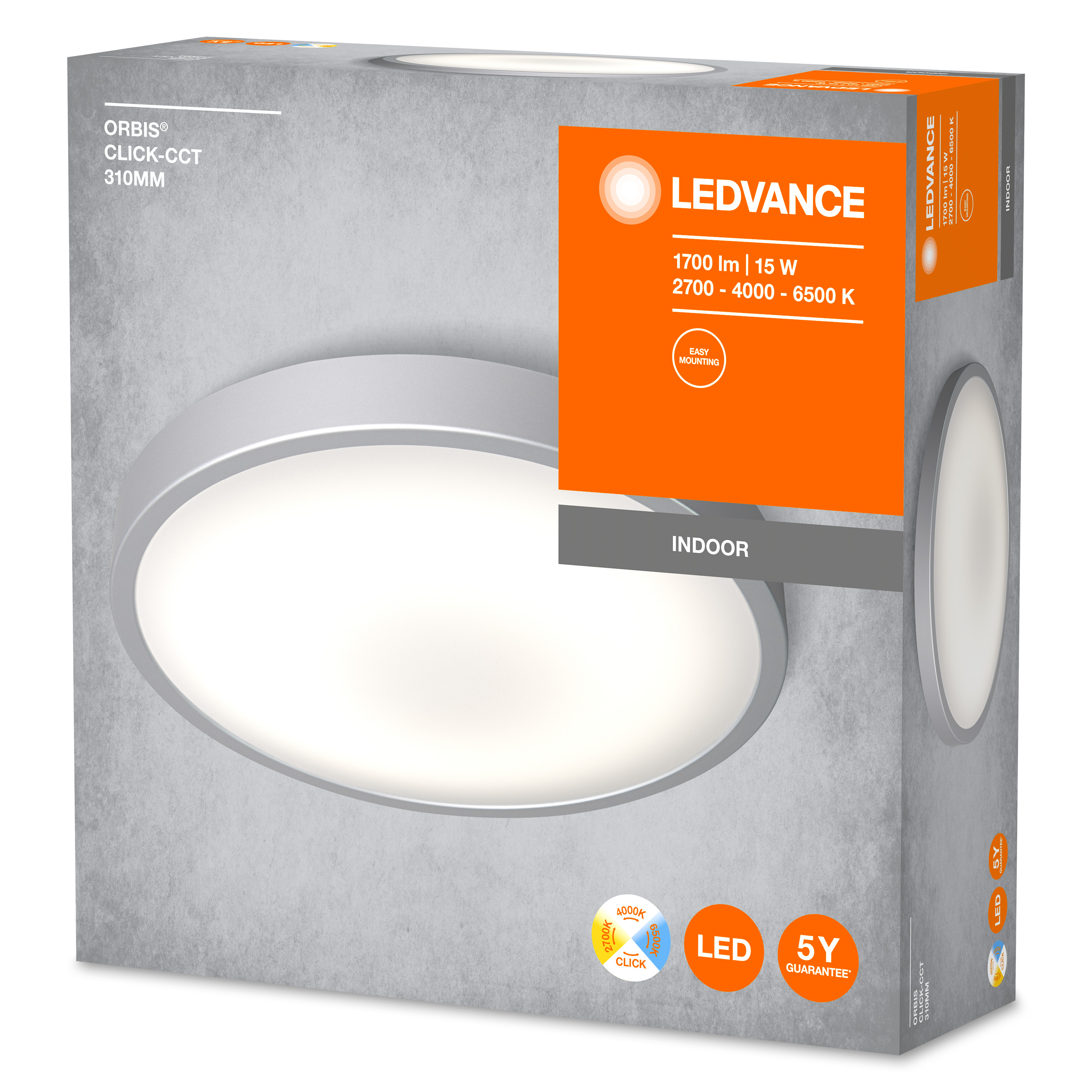

Packaging image, spacial
