| Nominal wattage | 5.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 50.000 mA |
| Max. number of luminaires per miniature circuit breaker C10 | - |
| Power factor λ | > 0.5 |
| Protection class | II |

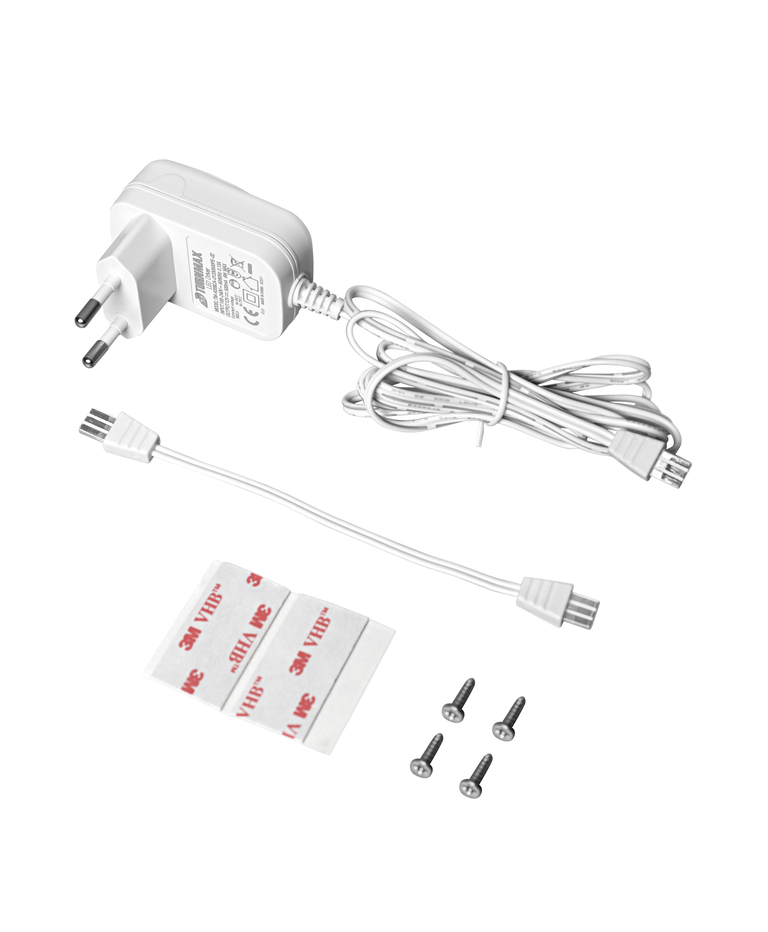

| Operating mode | External LED driver |
| Luminous flux | 220 lm |
| Total luminous flux of contained light sources | 360 lm |
| Luminous efficacy | 44 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |
| Length | 300.00 mm |
| Height | 8.00 mm |
| Width | 100.00 mm |
| Product weight | 315.00 g |
| Cable length | 1500 mm |
| Product color | White |
| Housing color | White |
| Body material | Acrylonitrile butadiene styrene (ABS) |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -30…+70 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Mounting type | Surface |

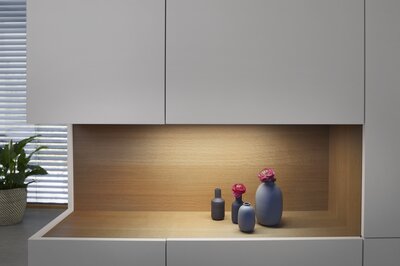

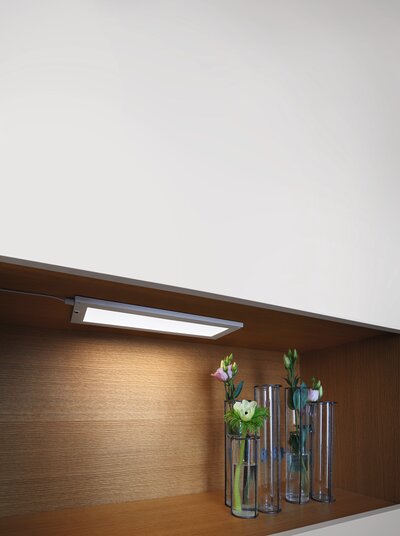

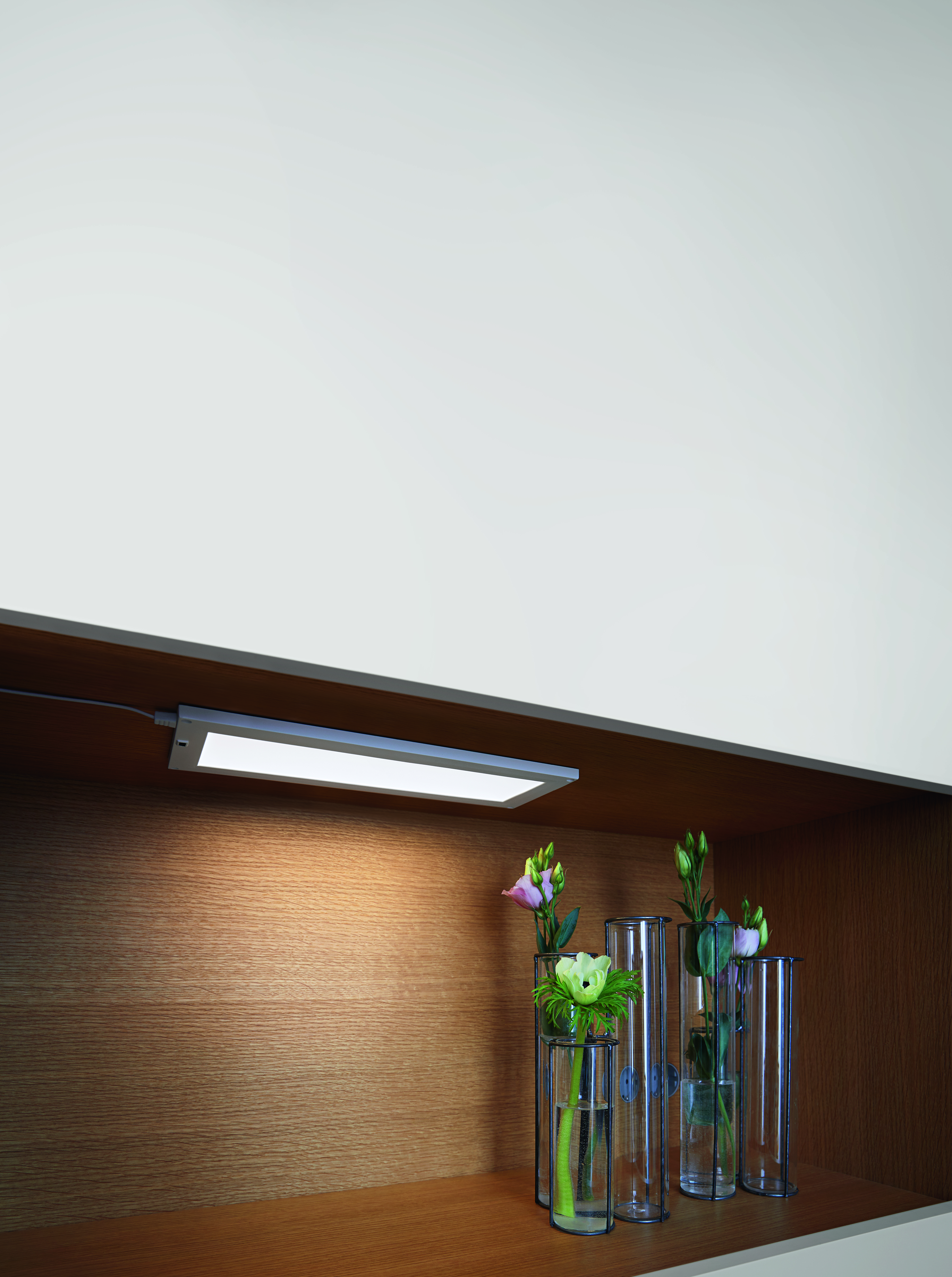

| Mounting location | Cabinet undersides |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Type of sensor | Motion |
| Sensor technology | Infrared/Photocell |
| Detection range of motion sensor | 5 cm |

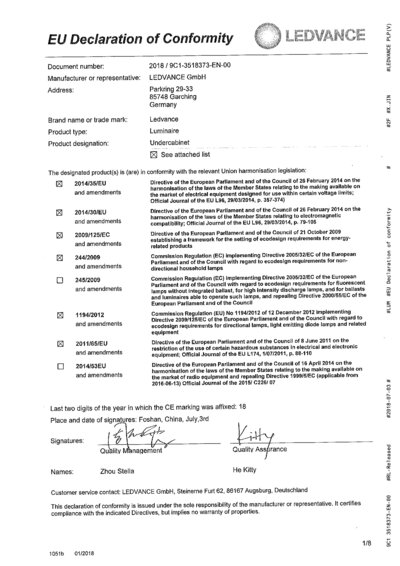

| Standards | CE, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Number of illuminants | empty |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

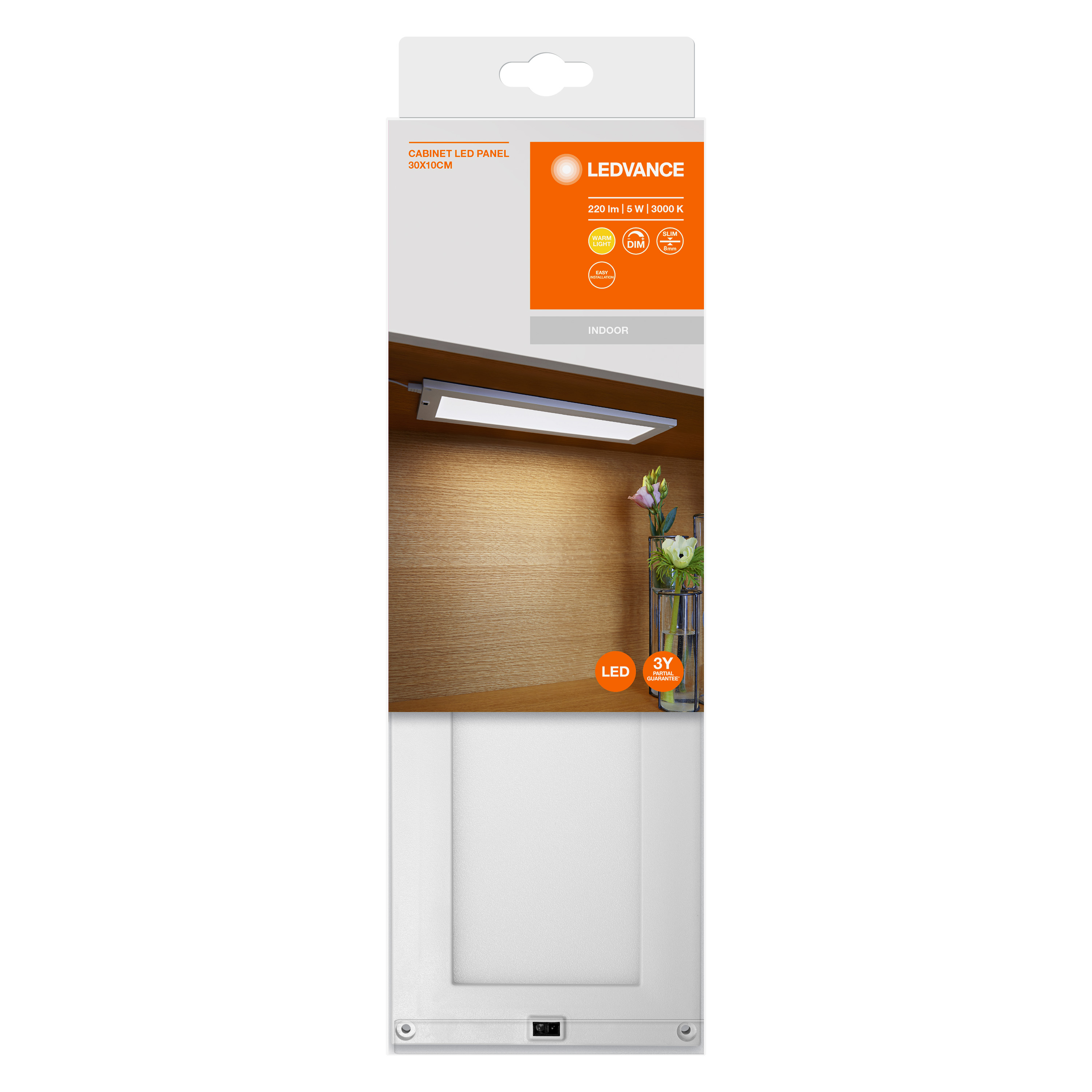

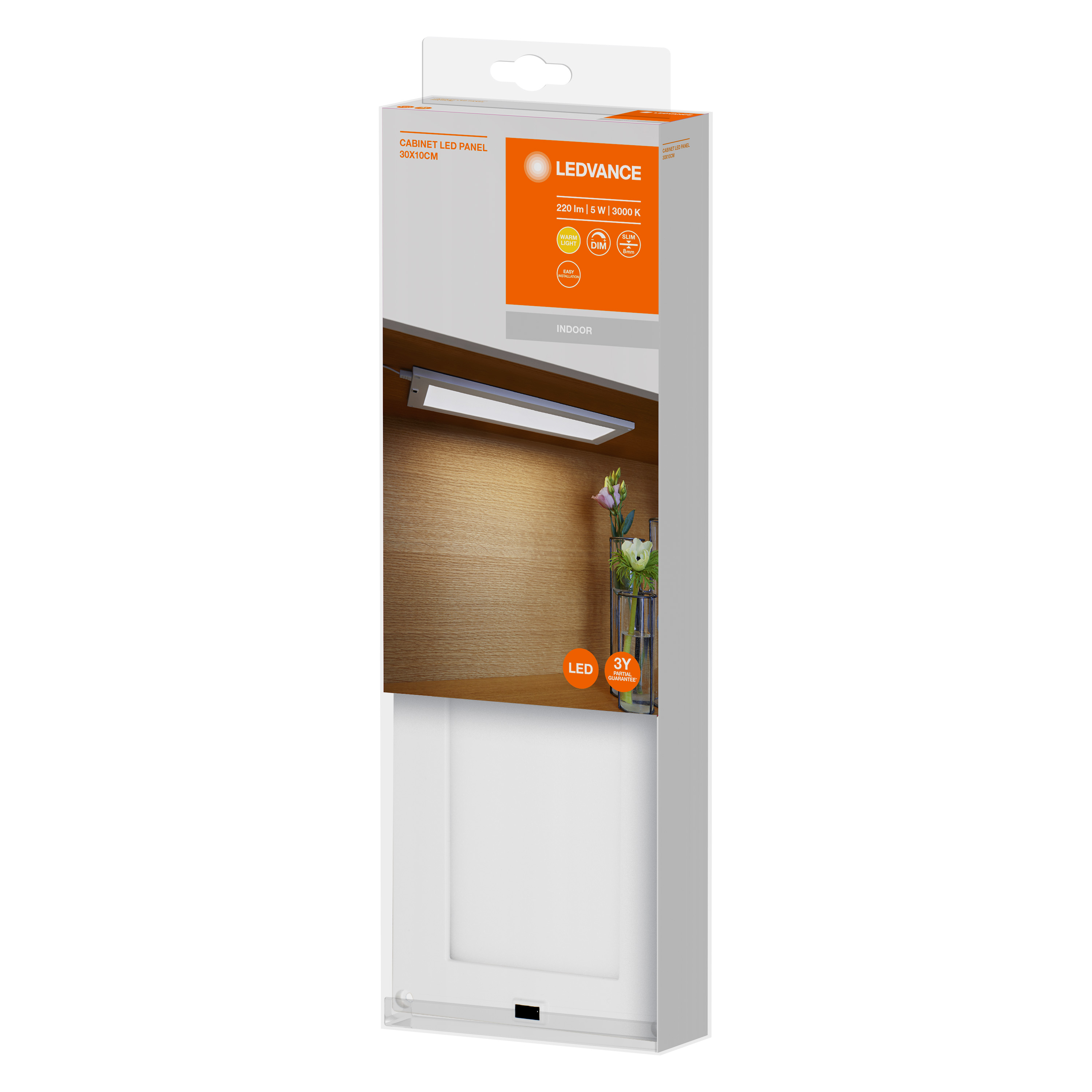

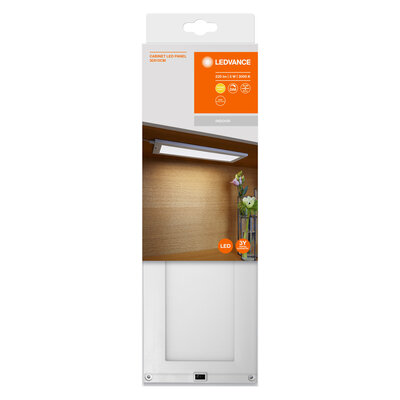

| 4058075268289 | Folding box 1 |
38 mm x 104 mm x 400 mm | 380.00 g | 1.58 dm³ |
| 4058075268296 | Shipping box 8 |
392 mm x 226 mm x 171 mm | 3323.00 g | 15.15 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075268289 | 941003650 |
