| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | II |
| Length | 76.00 mm |
| Height | 91.00 mm |
| Width | 50.00 mm |
| Product weight | 136.00 g |
| Product color | Dark grey |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -25…+70 °C |
| Type of connection | Screw terminal, 3-Pole |
| Type of protection | IP55 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Type of sensor | Light, Motion |
| Sensor technology | Passive infrared (PIR) |
| Sensor detection angle | 180 ° |
| Sensor controlled switching time | 2 s…15 min |
| Detection range of motion sensor | 12 m |
| Detection threshold of daylight sensor | 1…1000 lx |

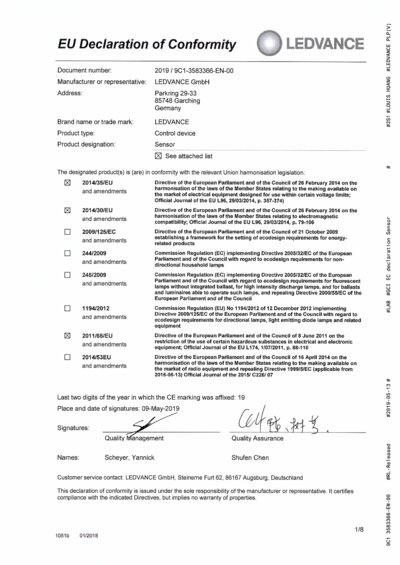

| Standards | CE, EAC, UKCA |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075244795 | Folding box 1 |
82 mm x 97 mm x 81 mm | 165.00 g | 0.64 dm³ |
| 4058075244801 | Shipping box 8 |
204 mm x 174 mm x 178 mm | 1428.00 g | 6.32 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075244795 | 941930410 |
