PRODUCT INFORMATION



TruSys® ENERGY RAIL DALI 4500 7X2,5

PRODUCT DETAILS

Electrical data

Protection class I

Dimensions & Weight

Length 4601 mm
Height 44 mm
Width 67.00 mm
Product weight 4500.00 g

Materials & Colors

Product color Silver
Body material Aluminum

Application & Mounting

Type of protection IP20
Mounting location Ceiling
With light source Yes
Replaceable light source No

Certificates & Standards

Standards CE
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Simple installation
  • High flexibility thanks to three available lengths (1500 mm, 3000 mm, 4500 mm)
  • High-value design
  • Lightweight design
Areas of application
  • Industry halls, high rack warehouse, garages, hardware stores
  • Discounters, supermarkets
Product features
  • Through wired with 7 core cable
  • Different lenghts available
  • Electrical connection internal at the first luminaire, no external connection unit required
  • Anodized surface
  • Rigid housing made of aluminum
Equipment / Accessories
  • Various accessories available
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075103498 BAG
1		 4,615 mm x 72 mm x 56 mm 5070.00 g 18.61 dm³
4058075103504 Shipping box
2		 4,615 mm x 149 mm x 64 mm 9500.00 g 44.01 dm³
User instruction / safety instructions

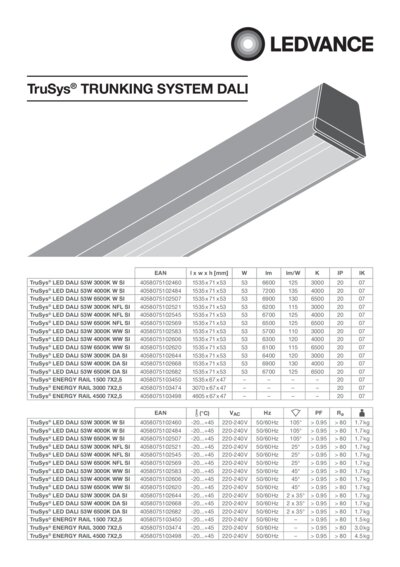

Trusys Trunking System Dali PDF (5.25 MB)
Declarations of conformity

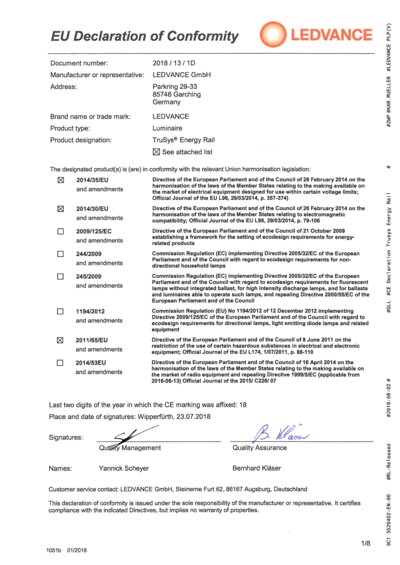

EU Declaration of Conf ormity TruSys Energy RailLEDV PDF (2.24 MB)

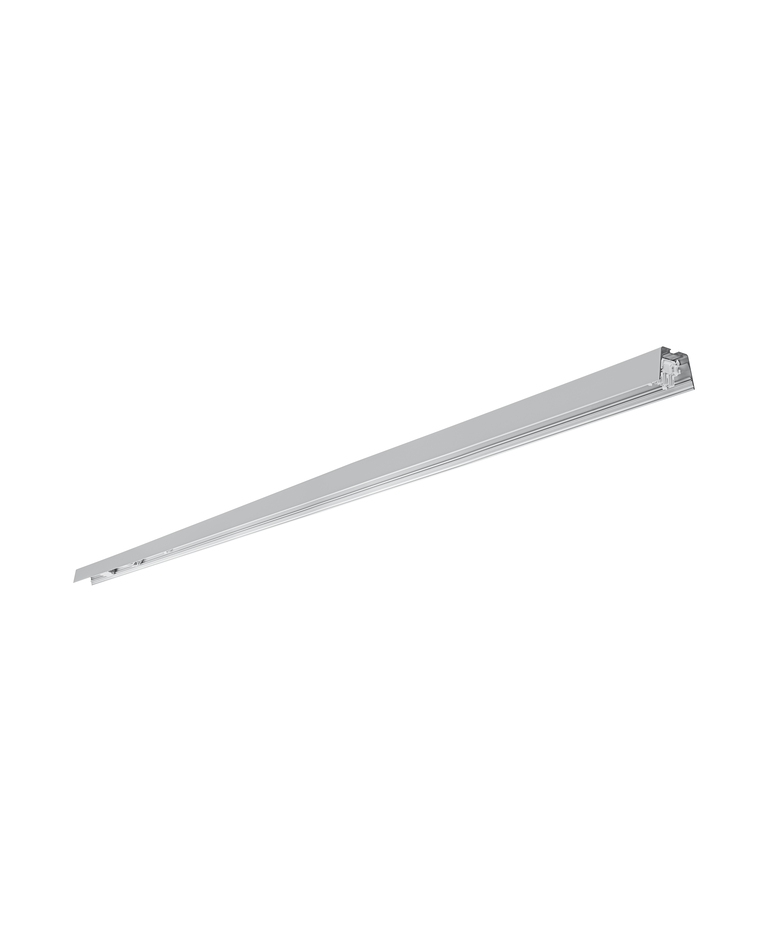

Product image: white background, diagonal
TRUSYS ENERGY RAIL 459 0 5X2,5 1T TIF (3.37 MB)
Product line drawing with letters
TRUSYS ENERGY RAIL 459 0 7X2,5 1T SVG (4.36 KB)
Product line drawing with numbers
TRUSYS ENERGY RAIL 459 0 7X2,5 1T SVG (10.04 KB)
Product line drawing - technical
TRUSYS ENERGY RAIL 459 0 7X2,5 1T SVG (1.52 KB)
BIM Revit 3D
TRUSYS 1500 3000 4500 ZIP (28.07 MB)
Tender documents
TruSys ENERGY RAIL DAL I 4500 7X2 5-EN TXT (985 B)
Application pictures
Supermarket Trusys TIF (47.22 MB)
Video
LEDVANCE LUM Installat ion Video EN TruSys MP4 (252.76 MB)
EAN SEG number STK number ELDAS number
4058075103498 7214308 4295689 941900630
