PRODUCT INFORMATION



DL SLIM FRAME DN 155 WT

PRODUCT DETAILS

Dimensions & Weight

Diameter 170,0 mm
Height 38 mm
Product weight 50.00 g

Materials & Colors

Product color White
RAL Color (most similar) RAL 9003

Application & Mounting

Mounting location Ceiling, Wall
Replaceable light source No

Certificates & Standards

Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Cable entry on the side for electrical connection with low profil
  • Easy installation thanks to included drilling template
Areas of application
  • General illumination
  • Public areas
  • Stairways
  • Corridors
  • Foyers
  • Shops
Product features
  • Low mounting depth
  • Robust polycarbonate casing
  • Mounting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075079175 Folding box
1		 43 mm x 180 mm x 180 mm 101.00 g 1.39 dm³
4058075079182 Shipping box
6		 280 mm x 190 mm x 200 mm 794.00 g 10.64 dm³
User instruction / safety instructions

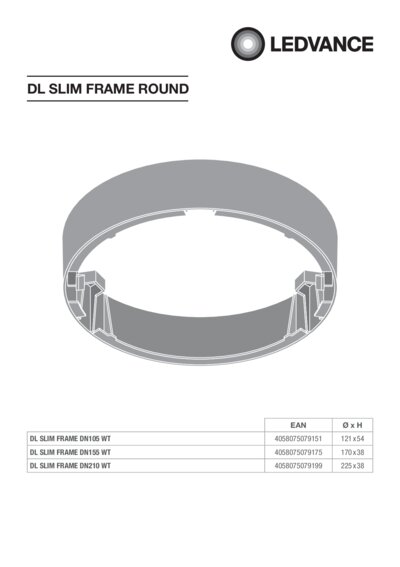

User Instruction DL Sl im Frame Round PDF (2.58 MB)

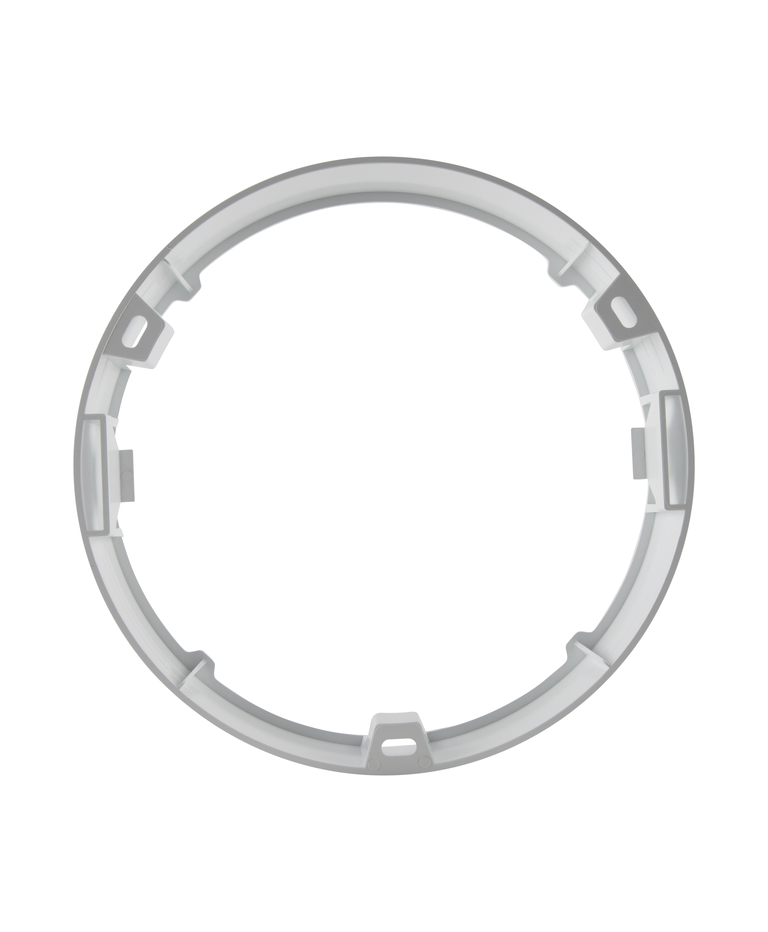

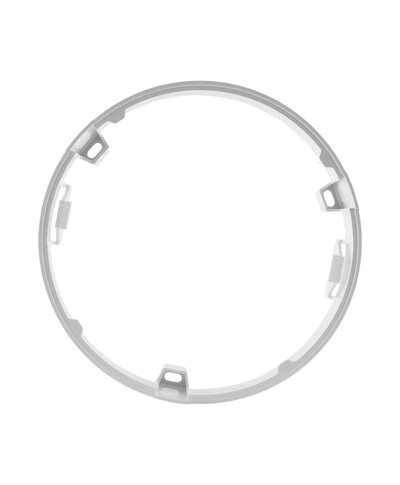

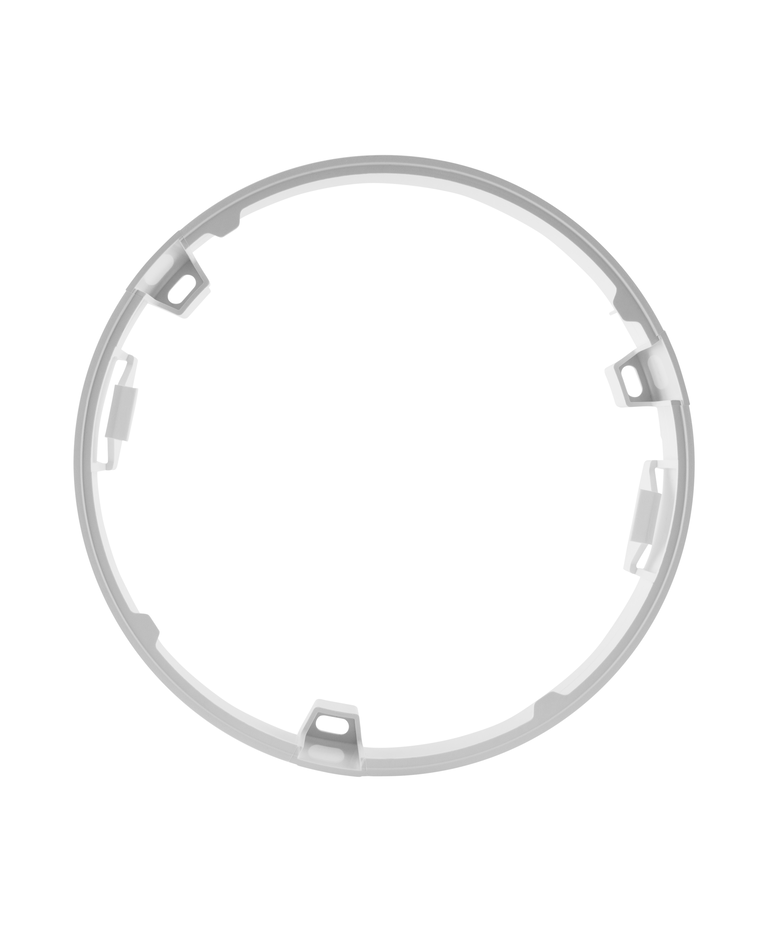

Product image: white background, upright
DL SLIM FRAME DN155 WT TIF (35.66 MB)

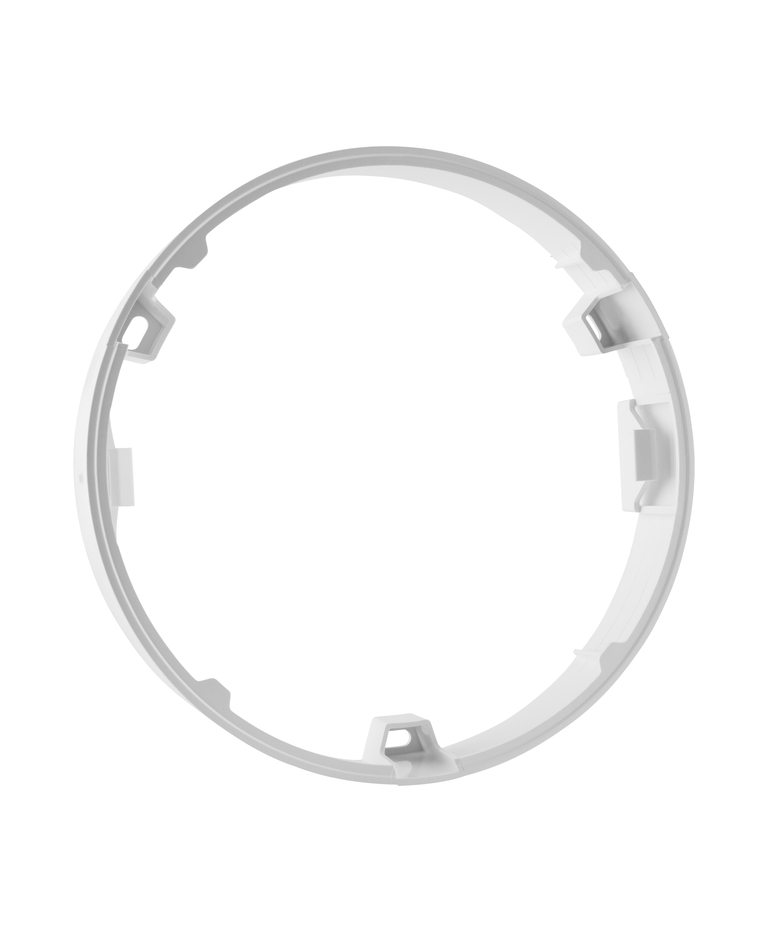

Product image: white background, spacial
DL SLIM FRAME DN155 WT TIF (39.92 MB)
Product line drawing with letters
DL SLIM FRAME DN155 WT SVG (24.84 KB)
Product line drawing with numbers
DL SLIM FRAME DN155 WT SVG (24.86 KB)
Tender documents
DOWNLIGHT SLIM ROUND F RAME 155 WT-EN TXT (445 B)
EAN SEG number STK number EFO number ELDAS number UK Org
4058075079175 7470533 4295650 3206956 941900110 405894918
