PRODUCT INFORMATION



ST 151 LONGLIFE

PRODUCT DETAILS

Electrical data

Nominal wattage 22.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz

Dimensions & Weight

Diameter 21,5 mm
Product weight 6.43 g

Additional product data

Mercury content 0.0 mg
Product remark Starters are available in two different designs, with identical technical features

Capabilities

Dimmable No

Country-specific categorizations

Order reference ST 151 LONGLIFE

Energy labelling regulation data acc EU 2019/2015

Length 40.30 mm
Height 21,5 mm
Width 21.50 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product features
  • Temperature range for reliable cut-out: -20…+80 °C
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300012803 Unpacked
1		 36 mm x 18 mm x 21 mm 12.60 g 0.01 dm³
4050300212876 Shipping box
1,200		 400 mm x 235 mm x 325 mm 8362.00 g 30.55 dm³

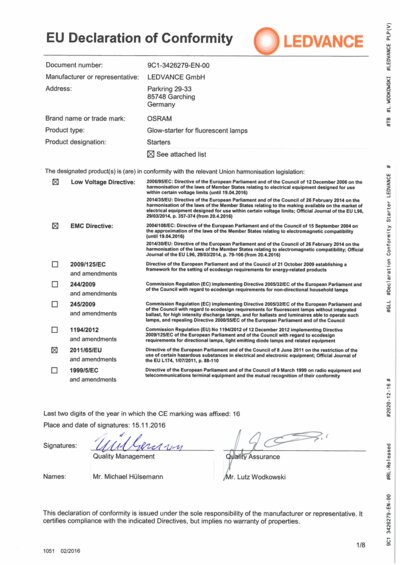

Declarations of conformity
Glow starter for fluor escent lamps PDF (2.23 MB)

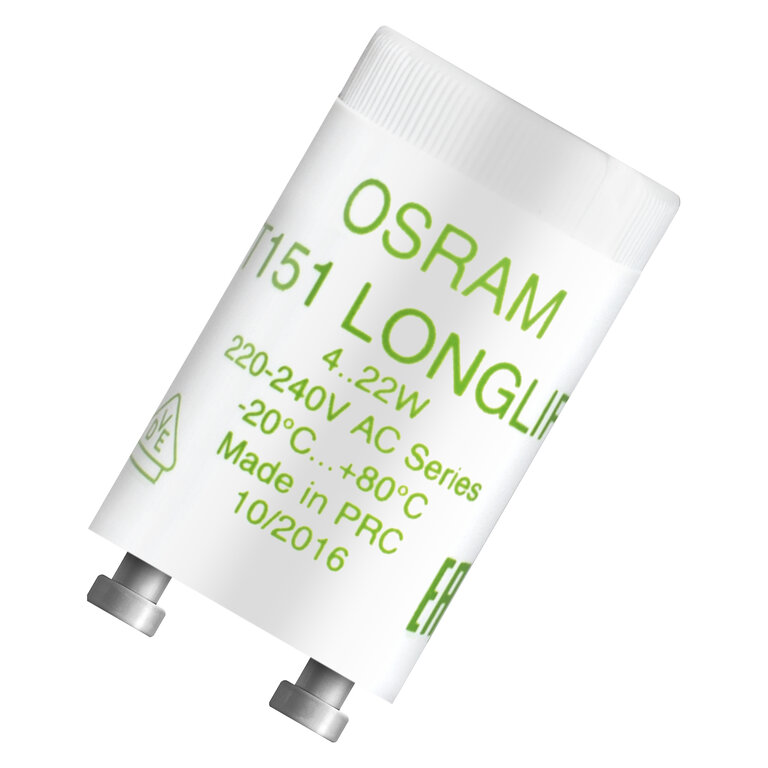

Product image: white background, diagonal
ST 151 LONGLIFE JPG (993.08 KB)

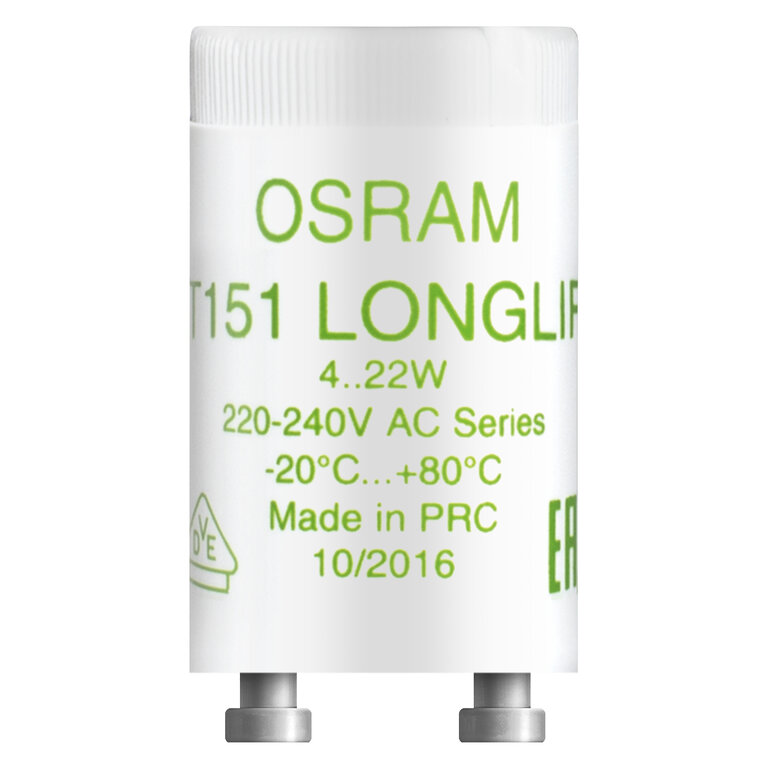

Product image: white background, upright
ST 151 LONGLIFE JPG (1.52 MB)
Product line drawing with letters
327970_STARTER 111/151 LONGLIFE, 111/151 BAS IC SVG (9.67 KB)
Product line drawing, front, no dimensions
327969_STARTER 111/151 LONGLIFE, 111/151 BAS IC SVG (6.04 KB)
EAN STK number EFO number
4050300012803 4030100 3860187
