PRODUCT INFORMATION



L 36 W/76

PRODUCT DETAILS

Electrical data

Nominal wattage 36 W
Nominal voltage 103 V
Nominal current 430 mA

Photometrical data

Luminous flux 1800 lm
Luminous efficacy 47 lm/W
Light color 76
Rated LLMF at 2,000 h 0.88
Rated LLMF at 4,000 h 0.83
Rated LLMF at 6,000 h 0.80
Rated LLMF at 8,000 h 0.77
Rated LLMF at 12,000 h 0.74
Rated LLMF at 16,000 h 0.72
Rated LLMF at 20,000 h 0.70

Dimensions & Weight

Overall length 1213.60 mm
Length 1213.60 mm
Length with base excl. base pins/connection 1200 mm
Diameter 26.00 mm
Tube diameter 26 mm
Product weight 165.00 g

Lifespan

Service life 13000 h 1)
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.99
Rated lamp survival factor at 16,000 0.90
Rated lamp survival factor at 20,000 h 0.50
Lifespan B50 20000 h

1) With preheat ECG

Additional product data

Base (standard designation) G13
Mercury content 5.3 mg
Design / version OSRAM NATURA® T8 tubular, G13 base
Product remark Not for general lighting

Certificates & Standards

Energy consumption 39.00 kWh/1000h

Country-specific categorizations

ILCOS FD-36/76-E-G13-26/1200
Order reference L 36W/76

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Specially tailored spectral distribution for food presentation only
Areas of application
  • Presentation of food in the display counter
  • Especially suitable for the food sector (DIN 10504)
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300010526 Sleeve
1		 1,215 mm x 27 mm x 27 mm 190.00 g 0.89 dm³
4008321145673 Shipping box
10		 1,256 mm x 151 mm x 74 mm 1765.33 g 14.03 dm³
4050300240817 Shipping box
25		 1,253 mm x 151 mm x 153 mm 5125.00 g 28.95 dm³
Declarations of conformity

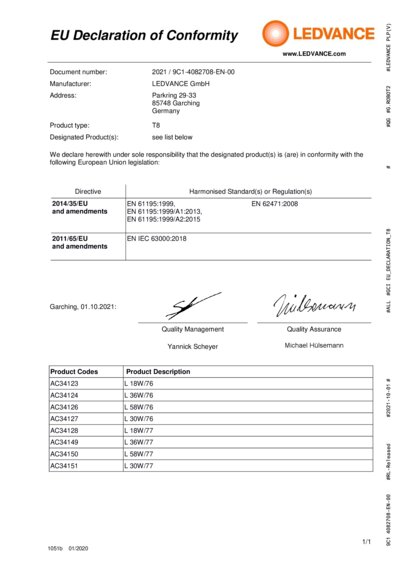

EC Declaration of Conf ormity - 2021 9C1-4082 708-EN-00 - T8 SPECIAL PDF (146.39 KB)
Certificates
EAC N RU D-DE.MU62.B.0 0801_20 02.03.2020-01. 03.2025 Prommash Test - FL PDF (1.2 MB)
Certificates

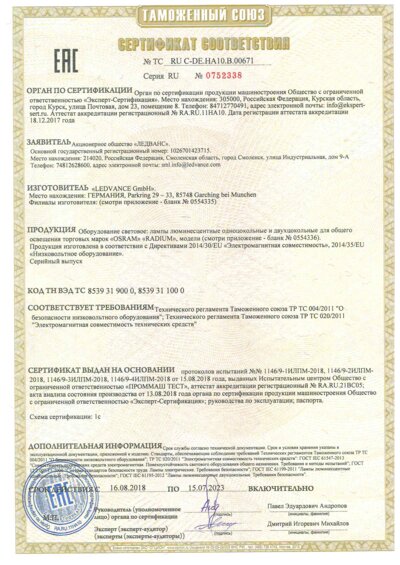

EAC RU C-DE HA10.B.006 71 16 08 2018 15 07 20 23 Expert Sertifikaciy a FL PDF (1.43 MB)
Product image: white background, diagonal
313063_LUMILUX T8 XT / LUMILUX T8 XXT TIF (2.8 MB)
Product line drawing with letters
324360_FLUORESCENT LAM P (BASIC T8/LUMILUX T8 ) G13 BASE SVG (5.67 KB)
Spectral power distribution
349633_FL_76_Natura SVG (14.07 KB)
EAN SEG number STK number EFO number ELDAS number AU model number
4050300010526 8329486 4930492 3810136 946395310 OSRL36/76
