PRODUCT INFORMATION



HQI-TS 1000 W/D/S PRO

PRODUCT DETAILS

Electrical data

Nominal wattage 1000.00 W
Nominal voltage 125 V
Ignition voltage 4.0/36 kVp 1)
Operating mode Conventional control gear (CCG) and ignitor
Nominal current 9600 mA
PFC capacitor at 50 Hz 85 µF

1) Minimum / Maximum

Photometrical data

Luminous flux 90000 lm
Luminous efficacy 90 lm/W
Color temperature 6100 K
Color rendering index Ra 85
Light color 861
Rated LLMF at 2,000 h 0.94
Rated LLMF at 4,000 h 0.93
Rated LLMF at 6,000 h 0.92
Rated LLMF at 8,000 h 0.89
Rated lamp efficacy (standard co.) 90 lm/W
UV protection No

Dimensions & Weight

Overall length 187.00 mm
Length 187.00 mm
Light center length (LCL) 93,0 mm
Diameter 41.00 mm
Product weight 58.5 g

Temperatures & operating conditions

Maximum permitted outer bulb temperature 950 °C
Maximum permitted pinch temperature 390 °C

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.95
Rated lamp survival factor at 6,000 h 0.79
Rated lamp survival factor at 8,000 h 0.50
Lifespan B50 8000 h

Additional product data

Base (standard designation) K12s-36
Mercury content 70.0 mg
Design / version Clear
Product remark Not for general lighting

Capabilities

Dimmable No
Burning position p15
Enclosed luminaire required Yes
Hot restart Yes

Certificates & Standards

Energy consumption 1100.00 kWh/1000h

Country-specific categorizations

ILCOS MN-1000/961-H/E/SL-K12s=36-41/187/H
Order reference HQI-TS 1000W/D/

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Excellent color rendering
  • Excellent color stability
  • Small loss of luminous flux over the life of the lamp
  • Hot restrike capable
  • Compact dimensions for small spotlights
  • Good positioning thanks to K12s base
Areas of application
  • Sports stadiums and floodlight systems
  • Sports halls and multi-purpose halls
  • Airports
  • Solar simulation, material testing
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • POWERSTAR® quartz technology
  • Light colors: neutral white (NDL), daylight (D)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321525475 Folding box
1		 75 mm x 75 mm x 240 mm 124.00 g 1.35 dm³
4008321525482 Shipping box
10		 395 mm x 165 mm x 265 mm 1436.00 g 17.27 dm³
User instruction / safety instructions

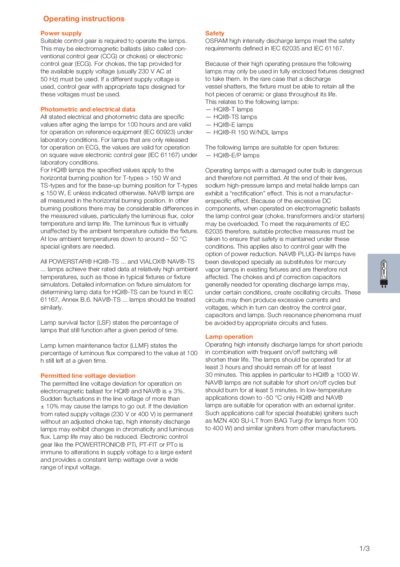

High Intensity Dischar ge Lamp UI PDF (177.47 KB)

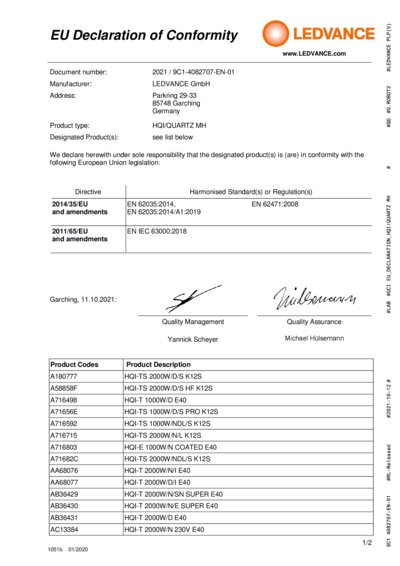

Declarations of conformity
EC Declaration of Conf ormity - 2021 9C1-4082 707-EN-00 - HQI 1000W- 2000W PDF (156.59 KB)

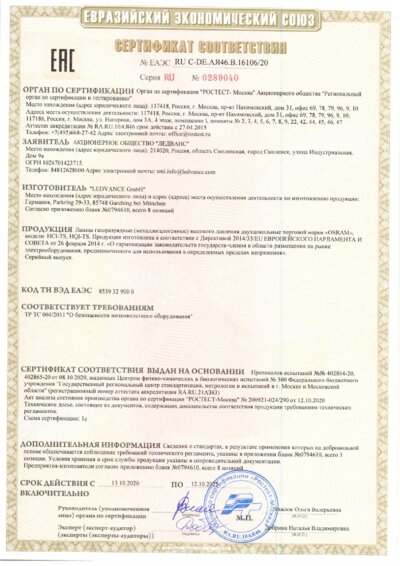

Certificates
EAC RU C-DE.AYA46.B.16 106_20 13.10.2020-12.1 0.2025 Rostest-Moskva - MH double capped PDF (900.62 KB)

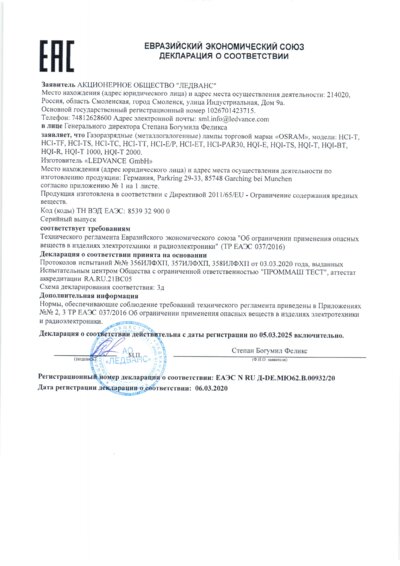

Certificates
EAC N RU D-DE.MU62.B.0 0932_20 06.03.2020-05. 03.2025 Prommash Test - MH PDF (1.15 MB)

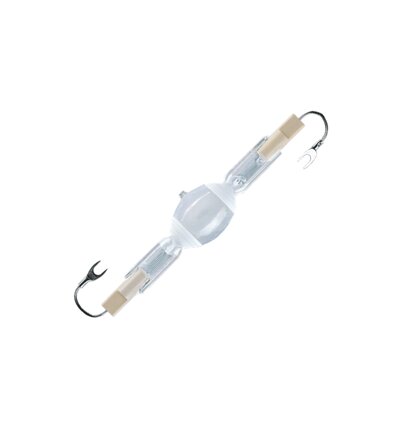

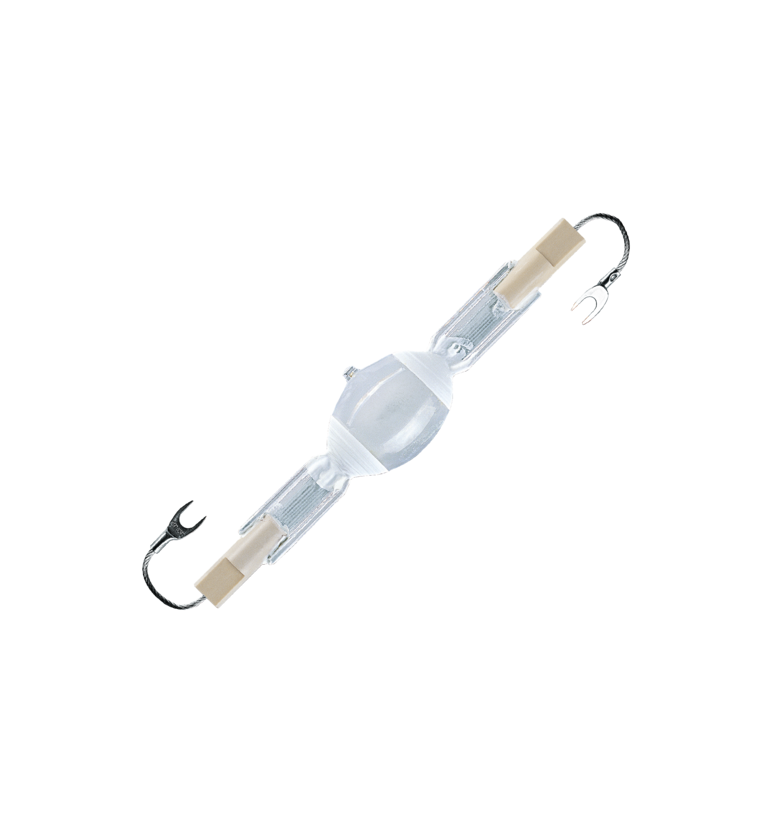

Product image: white background, diagonal
323797_POWERSTAR HQI-T S TIF (28.6 MB)
Product line drawing with letters
2007_METAL HALIDE LAMP S POWERSTAR HQI-TS SVG (13.94 KB)
Product line drawing, front, no dimensions
325811_POWERSTAR HQI-T S SVG (8.74 KB)
Spectral power distribution
384073_HQI_TS_D_S_CABL E SVG (13.63 KB)
EAN SEG number STK number EFO number ELDAS number AU model number
4008321525475 8332841 4834770 3860104 948811920 OSRHQI-TS1000D/SPRO
