LED VALUE PAR16 WHITE

LED VALUE PAR 16 80 60 ° 6.9 W/3000 K GU10

GTIN: 4058075599260 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
Areas of application
  • Shops and exhibition rooms
  • Domestic applications
  • Commercial applications
  • Accent lighting
  • Outdoor use in outdoor luminaires only (minimum IP65)
Product features
  • LED alternative to high voltage halogen lamps
  • Not dimmable
  • Base: GU10
  • Good quality of light; color rendering index CRI ≥ 80
  • Lamp made of plastic
Electrical data
Nominal wattage 6.9 W
Construction wattage 6.90 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 80 W
Nominal current 54 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.50
Photometrical data
Luminous intensity 700 cd
Luminous flux 575 lm
Nominal useful luminous flux 90° 575 lm
Luminous efficacy 83 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 700 cd
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.9
Light technical data
Beam angle 60 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 54.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 42.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Additional product data
Base (standard designation) GU10
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
Order reference LVPAR168060 6,9
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) GU10
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00 W
Networked standby power for CLS 0.00 W
Claim of equivalent power Yes
Length 54.00 mm
Height 50.00 mm
Width 50.00 mm
Chromaticity coordinate x 0.4338
Chromaticity coordinate y 0.403
R9 Colour rendering index >0
Beam angle correspondence NARROW_CONE_90
Survival factor 0.9
Displacement factor >0.5
LED light source replaces a fluorescent light source No
EPREL ID 686626,2008243,2492028
Model number AC32065,AC62663,AC90824
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075599260 Folding box
1
53 mm x 53 mm x 61 mm 55.00 g 0.17 dm³
4058075599277 Shipping box
10
271 mm x 111 mm x 74 mm 623.00 g 2.23 dm³
4058075599284 Shipping box
80
465 mm x 288 mm x 173 mm 5546.00 g 23.17 dm³
PRODUCT DATASHEET
LEDVALUEPAR168060°6.9 W3000KGU10en

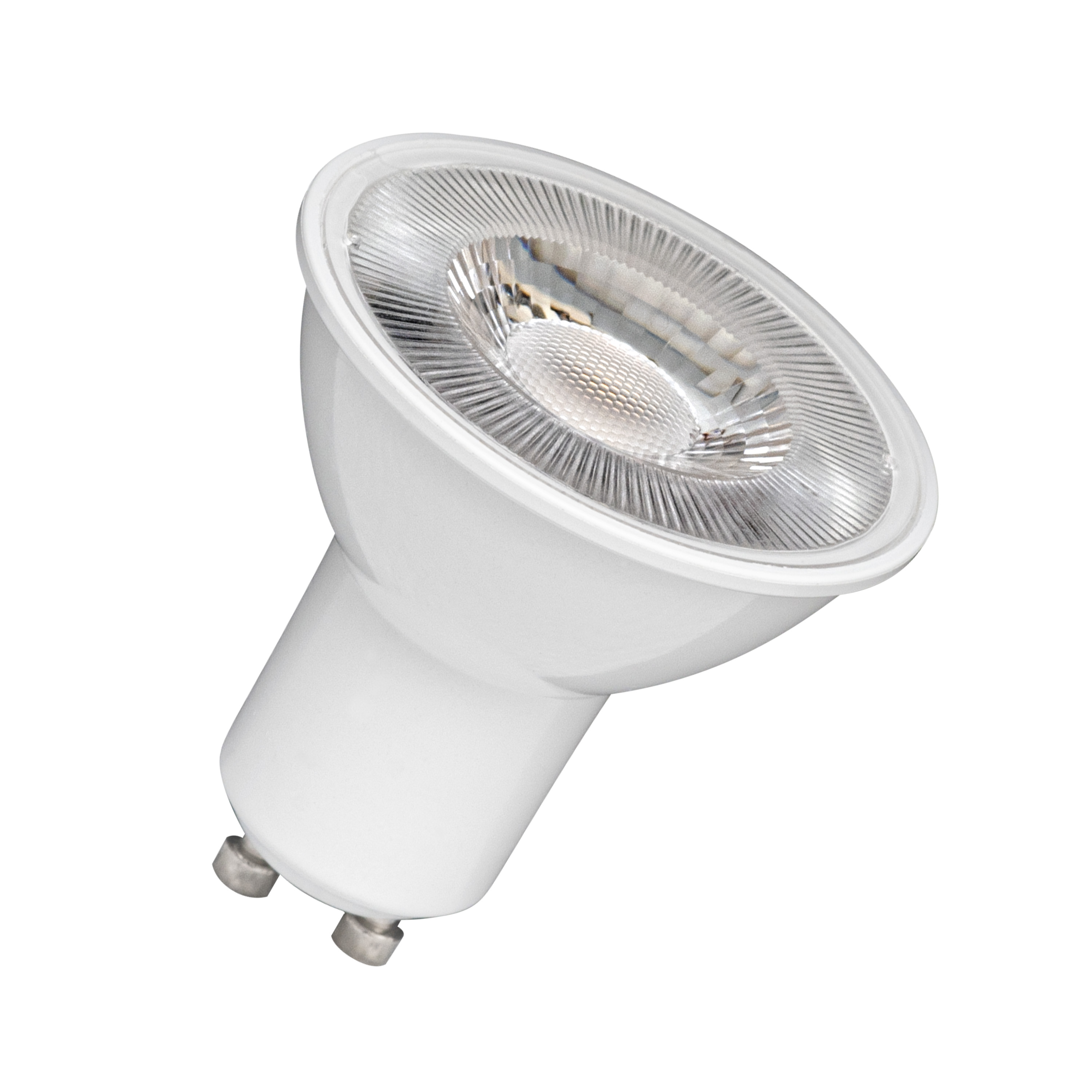

Product image: white background, diagonal
LV PAR1660

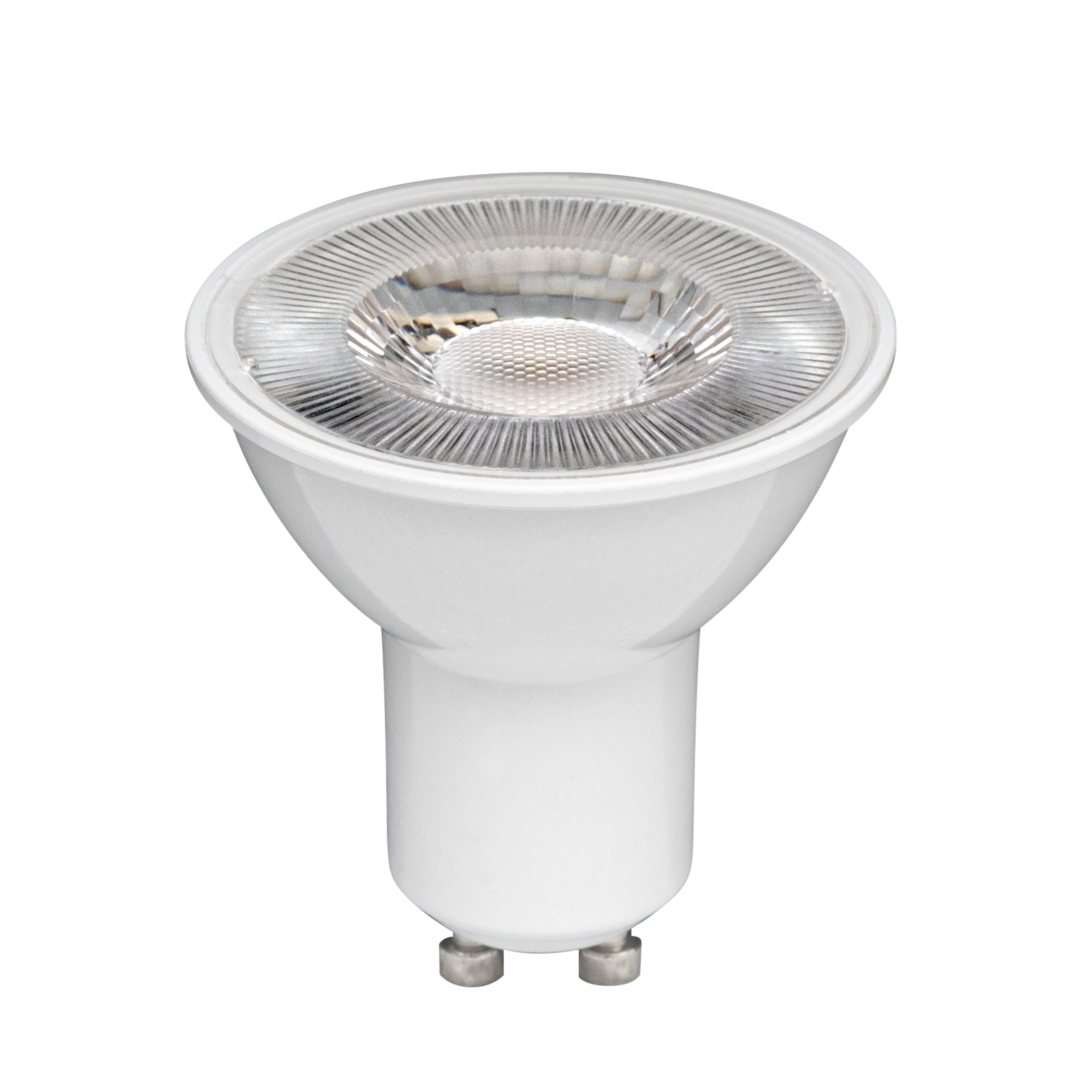

Product image: white background, upright
LV PAR1660

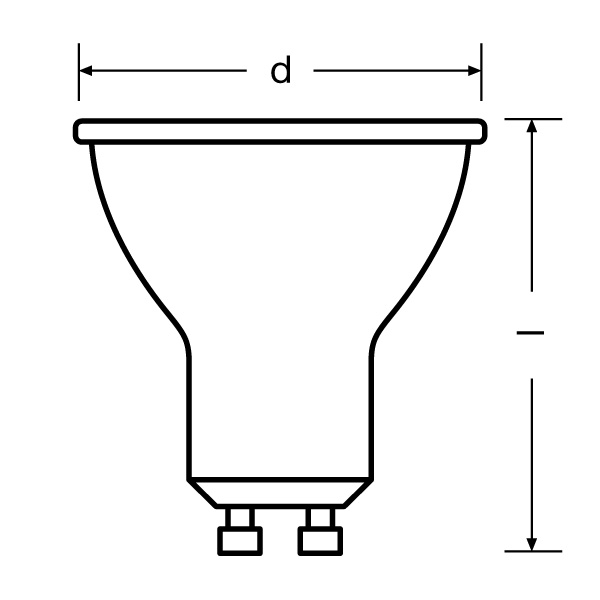

Product line drawing with letters
LED PAR16_GU10_36_EUE

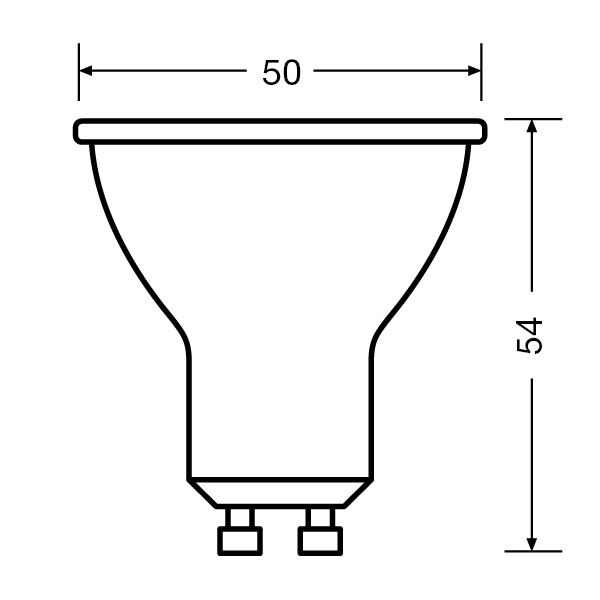

Product line drawing with numbers
LED_PAR16_GU10_EUE

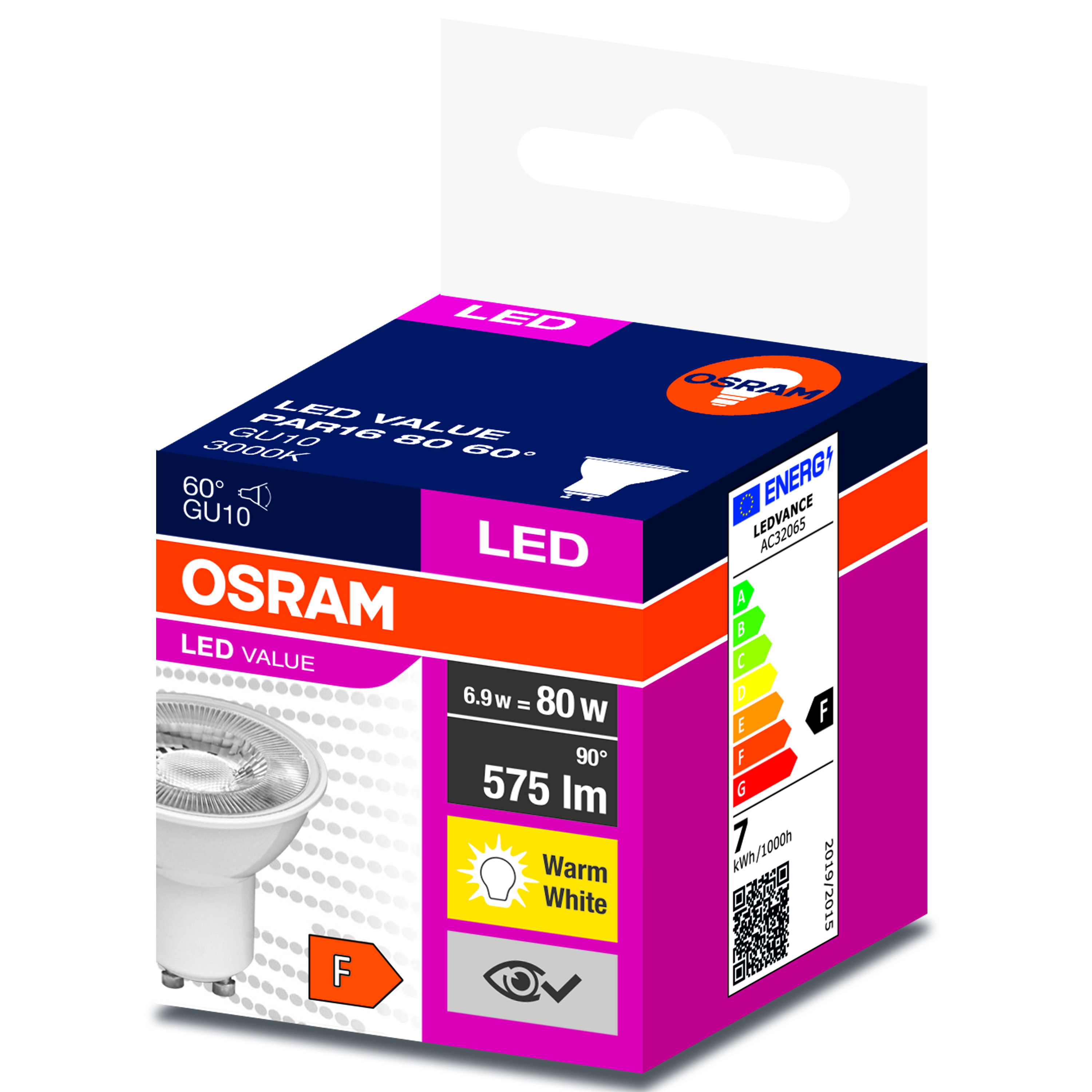

Packaging image, spacial
VALUE PAR16 8060 6,9W 830 230V
Energy label
EL-4058075599260-AC320 65
Energy label
EL-4058075599260-AC626 63
Energy label
EL-4058075599260-AC908 24

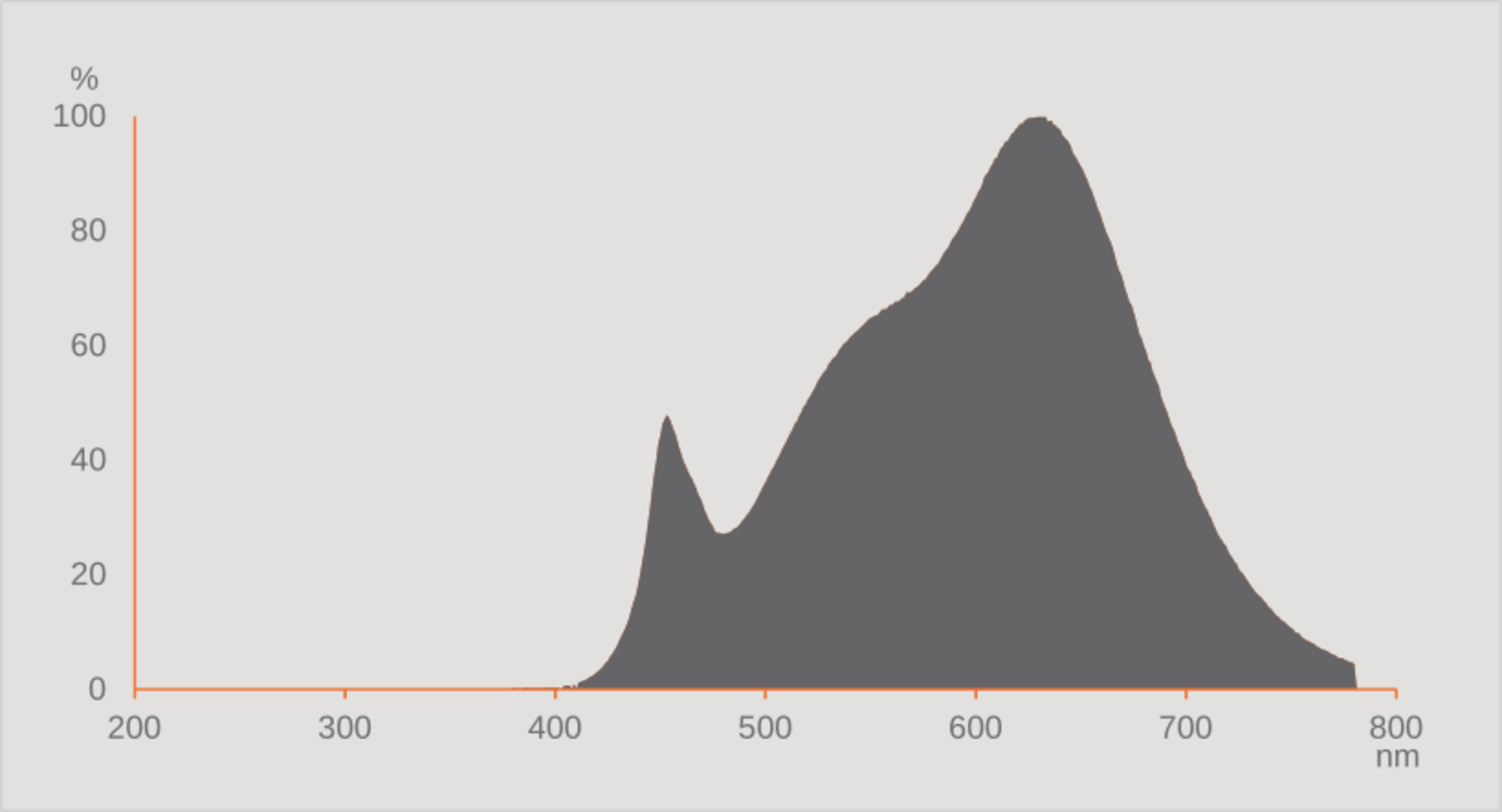

Spectral power distribution
LISO spectral power distribution 3000K CRI80 v1
