Flex Acoustic Black

Flex Acoustic Black 2.6M H13 mm 830 Starter Set

GTIN: 4099854677755 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Stylish lighting solution for acoustic panels with exceptionally uniform light distribution
  • Matte black finish makes it nearly invisible in black felt acoustic panels when switched off
  • Easy, tool-free installation with 3M adhesive backing
Areas of application
  • Designed to fit acoustic panels with slat heights (=mounting depth) of around 10 mm / 13 mm for seamless integration
  • Suitable for acoustic panels with slat spacing ≥ 12.4 mm
  • Also ideal for any dark surface - discreet and unobtrusive thanks to the black finish
Product features
  • Warm white, cuttable LED strip with black silicone sleeve and matte black light-emitting surface

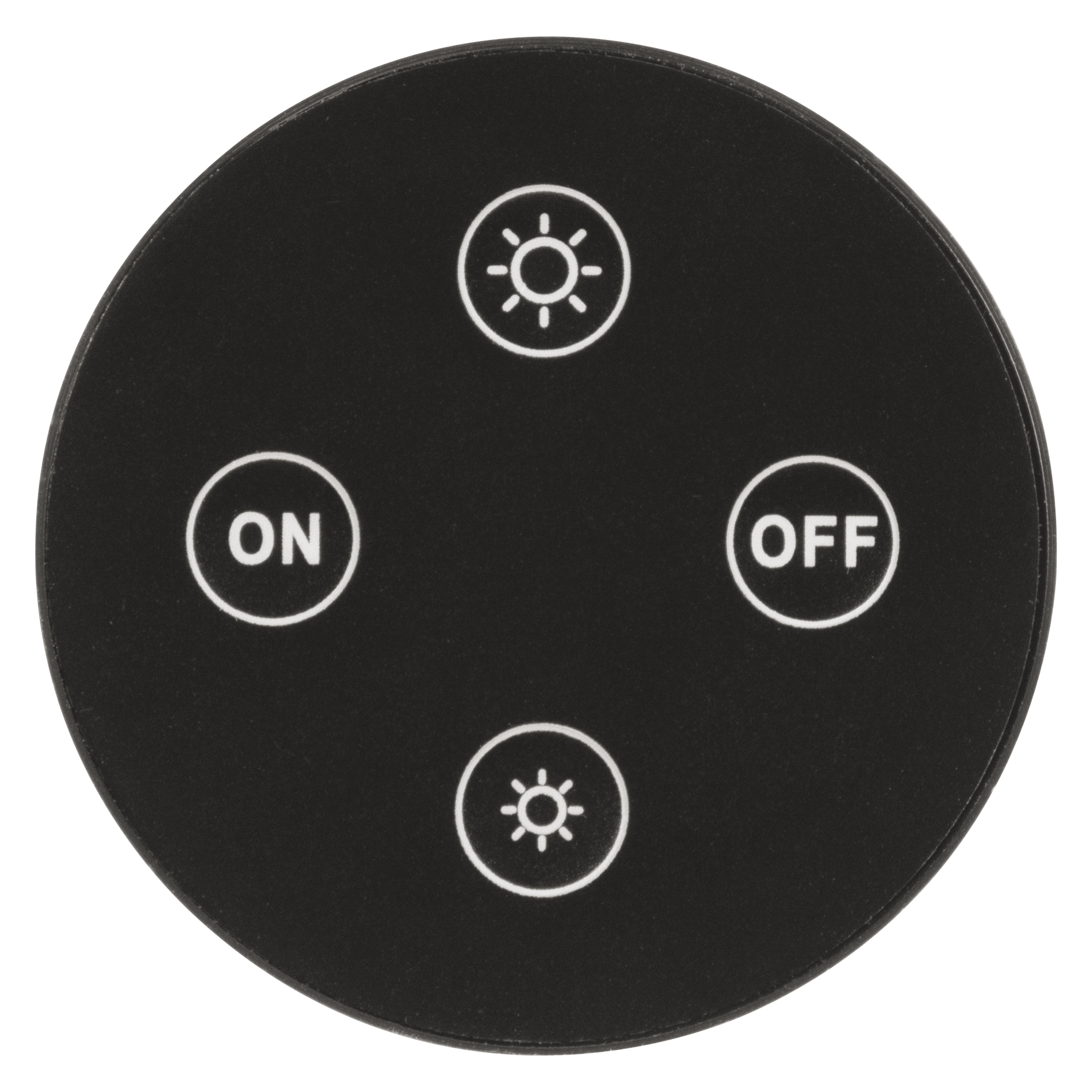

  • Starter Set: powerful power supply (supports up to 3 LED strips) and RF remote for convenient ON/OFF and dimming included
Equipment / Accessories
  • Two metal clips for optional fastening the ends included
  • Black silicone end cap for a clean finish after cutting included
  • Batteries required for remote control: 2xAAA (not included)
Safety advice
  • Do not connect the rope light to the supply while it is wound onto a reel. The string of lights may not be operated within the packaging. Do not open the lightstrip.
Electrical data
Nominal wattage 29.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 1000 mA
Inrush current 0.0298 A
Max. number of luminaires per miniature circuit breaker B16 55
Max. number of luminaires per miniature circuit breaker C10 46
Max. number of luminaires per miniature circuit breaker C16 74
Power factor λ > 0.80
Protection class II
Operating mode Mains voltage
Photometrical data
Luminous flux 260 lm
Total luminous flux of contained light sources 1000 lm
Luminous efficacy 9 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≦1
Stroboscope effect metric (SVM) ≦0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
Dimensions & Weight
Length 2600.00 mm
Height 13.00 mm
Width 12.40 mm
Product weight 744.00 g
Materials & Colors
Product color Matt black
Housing color Matt black
Body material Silicone
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Mounting type Surface
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Lifespan L80/B10 at 25 °C 30000 h 1)
Number of switching cycles 15000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CE
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854677755 Folding box
1		 62 mm x 262 mm x 275 mm 854.00 g 4.47 dm³
4099854677762 Shipping box
6		 390 mm x 285 mm x 305 mm 5.37 g 33.90 dm³
User instruction / safety instructions
User Instruction G11246243 FLEX ACOUSTIC BLACK
PDF (3.02 MB)
Legal information
Safety Insert G11265518_R
PDF (276.3 KB)
Legal information
Legal Insert G11233093 SMART WIFI MAT
PDF (225.25 KB)
Legal information
German Insert G11212367
PDF (435.15 KB)

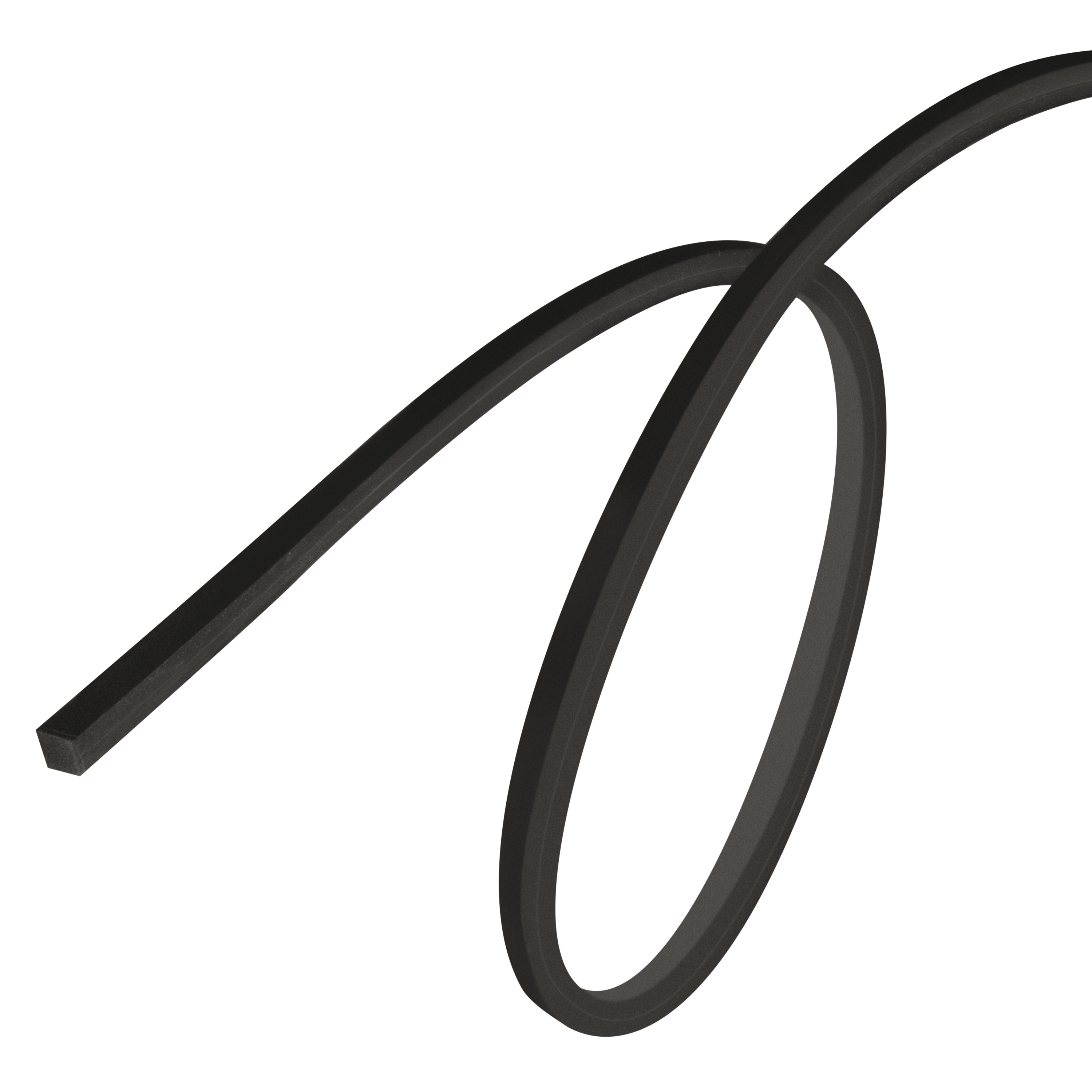

Product image: white background, diagonal
FLEXACOUSTICBLACK2.6M H13MM830 RC
JPG (1.23 MB)

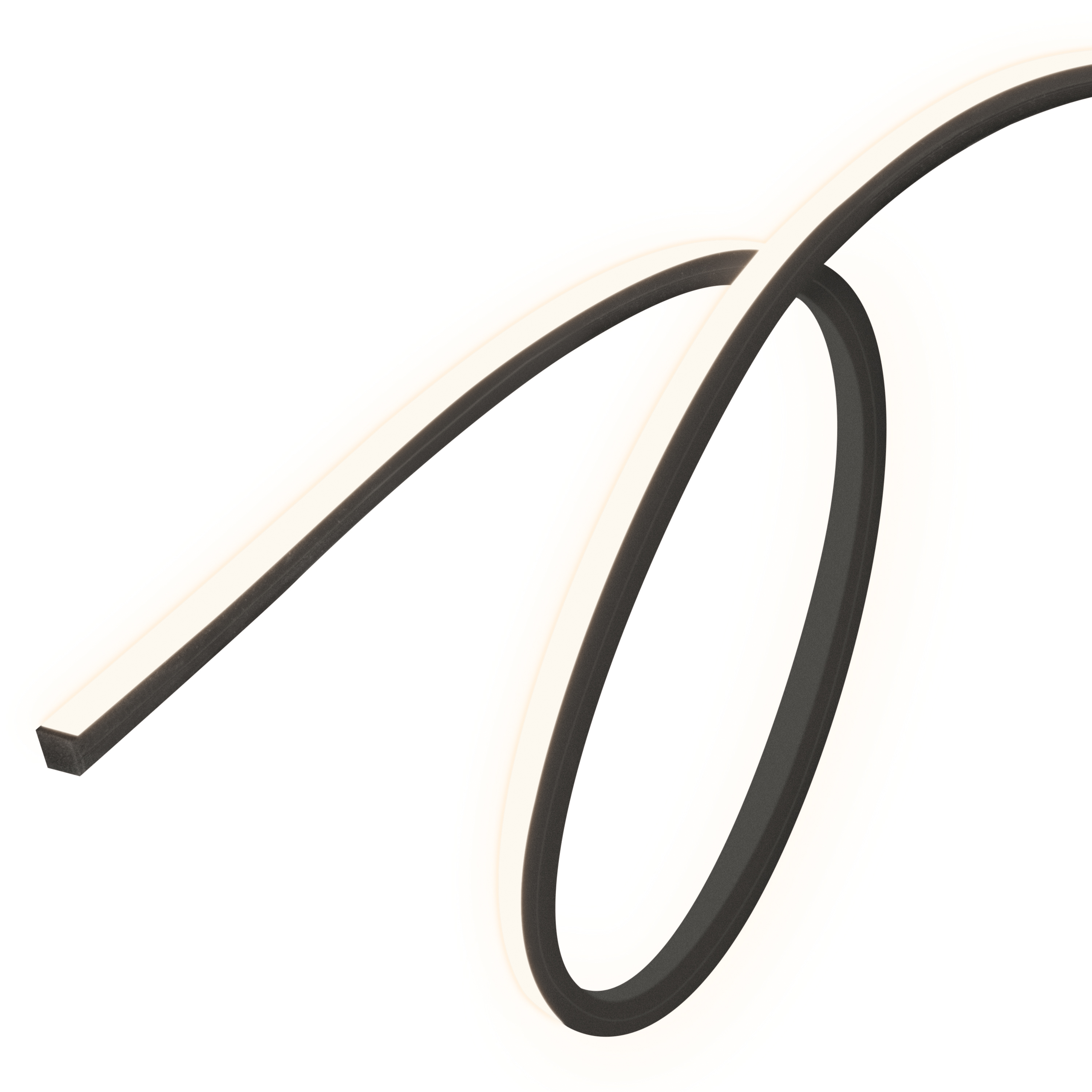

Product image: white background, diagonal, switched on
