SubstiTUBE T8 EM VALUE
ST8V-0.6M 8 W/4000 K 600 mm
GTIN: 4099854309564
Sleeve / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Quick, simple and safe replacement of fluorescent lamps without rewiring the CCG
- Realistic color rendering thanks high color saturation and excellent color rendering index
- Outstanding quality of light
- Lower maintenance cost thanks to longer lifetime than traditional Fluorescent
- Correct operation even at low temperatures
- RoHS-conformity
- Mercury-free
- High color rendition (Ra≥80) with excellent color fidelity for a true lighting effect
Areas of application
- Train stations
- Offices
- Underground stations
- Supermarkets and department stores
- Parking lots & Alleys
- Warehouses
Product features
- LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires
- Lifetime up to 30,000 h
- High luminous efficacy: up to 112 lm/W
Electrical data
| Nominal wattage | 8 W |
| Construction wattage | 8.00 W |
| Nominal voltage | 230 V |
| Nominal current | 60 mA |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 900 lm |
| Luminous efficacy | 112 lm/W |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | > 80 |
| Light color | 840 |
| Standard deviation of color matching | ≤6 sdcm |
Light technical data
| Beam angle | › 160.00 ° |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 604.00 mm |
| Diameter | 28.00 mm |
| Product weight | 52.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
Additional product data
| Base (standard designation) | G13 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
Capabilities
| Dimmable | No |
Certificates & Standards
| Type of protection | IP20 |
Country-specific categorizations
| Order reference | ST8V-0.6M 8W/84 |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Light source cap-type (or other electric interface) | G13 |
| Length | 604.00 mm |
| Height | 28.00 mm |
| Width | 28.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854309564 | Sleeve 1 |
670 mm x 28 mm x 28 mm | 63.00 g | 0.53 dm³ |
| 4099854309571 | Shipping box 25 |
722 mm x 158 mm x 176 mm | 2459.00 g | 20.08 dm³ |

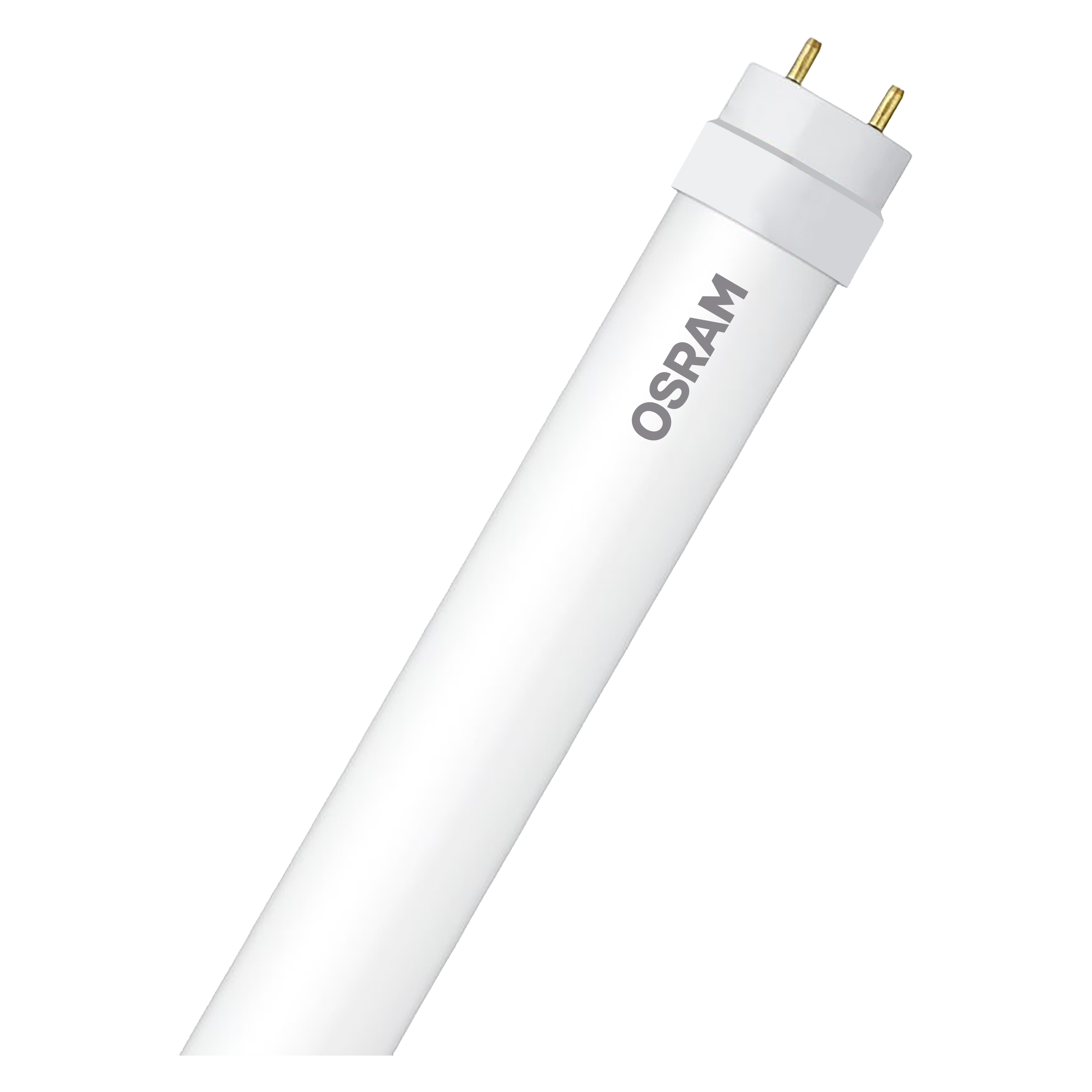

Product image: white background, diagonal with OSRAM logo
LED STAR T8 OSRAM G3
LED STAR T8 OSRAM G3
Product line drawing, front, no dimensions
LED STAR+ T8 1.2M G13
LED STAR+ T8 1.2M G13
IES file (IES)
ST8V0.6M 8W840 230V EM PC
ST8V0.6M 8W840 230V EM PC
LDT file (Eulumdat)
ST8V0.6M 8W840 230V EM PC
ST8V0.6M 8W840 230V EM PC
Light distribution curve type polar
ST8V0.6M 8W840 230V EM PC
ST8V0.6M 8W840 230V EM PC
